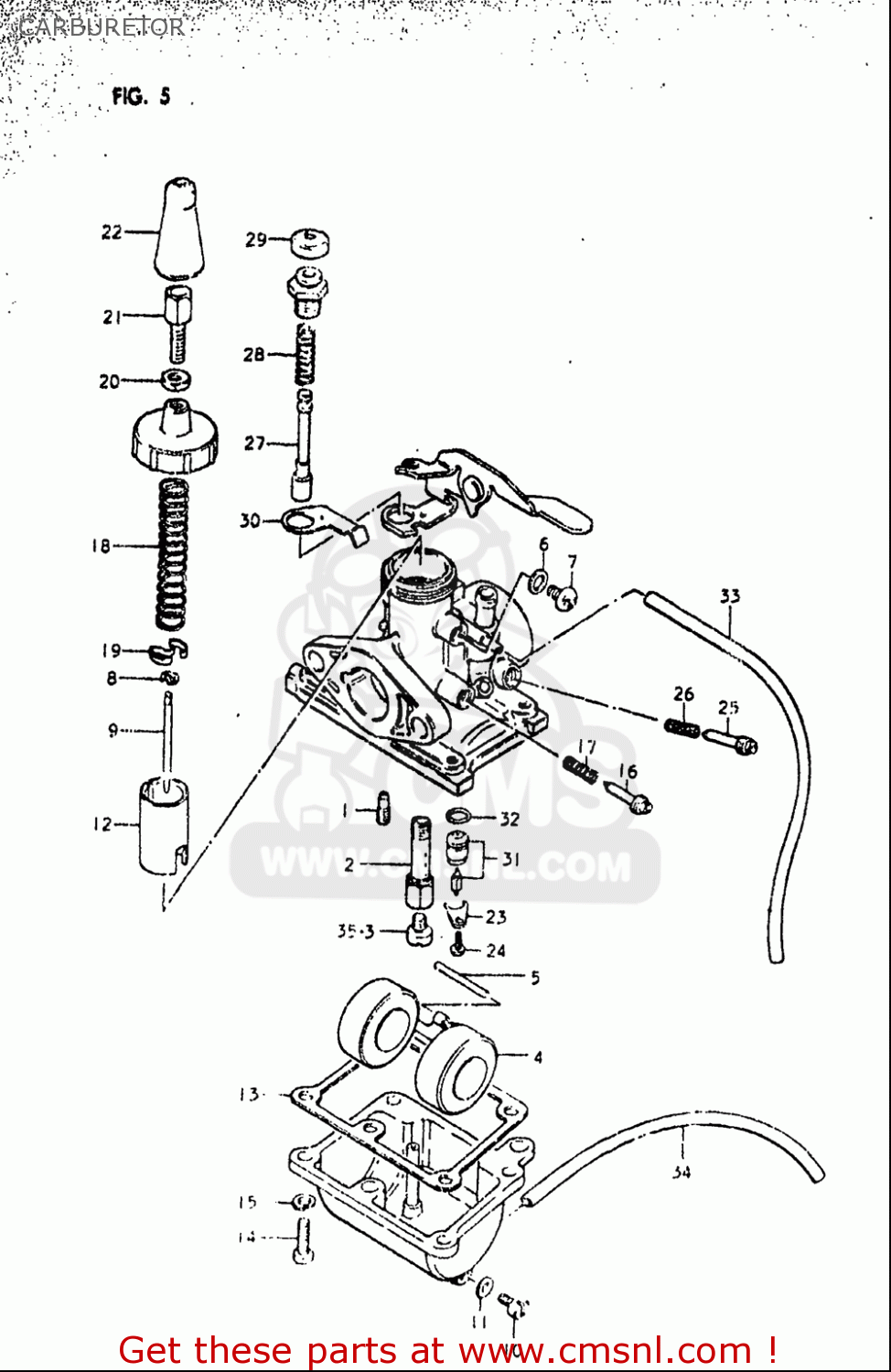

CARBURETOR

ref

part #

description

quantity

1

0949215015
ref: 1

JET,PILOT(15)

€ 11.00

2-2

0949400173
ref: 2-2

JET,NEEDLE

€ 0.00

3-1

0949175009
ref: 3-1

JET,MAIN(75)

€ 7.00

3-2

0949167003
ref: 3-2

JET,MAIN(67.5)

€ 9.00

4

1325246110
ref: 4

FLOAT

€ 24.00

5

1325420010
ref: 5

PIN,FLOAT

€ 3.00

6

1352346110
ref: 6

GASKET,DRAIN PLUG (NAS)

€ 3.00

7

0912505122
ref: 7

SCREW(5X6)

€ 4.00

8

1339440D00
ref: 8

CLIP,NEEDLE

€ 3.00

10

1324705010
ref: 10

PLUG

€ 6.00

11

1324905010
ref: 11

GASKET,DRAIN,PLUG (NAS)

€ 1.50

13

1325146110
ref: 13

GASKET,FLOAT CHAMBER (NAS)

€ 7.00

14

0211204163
ref: 14

SCREW 4X16

€ 1.00

15

0832101043
ref: 15

WASHER,LOCK

€ 2.00

16

1326701010
ref: 16

SCREW,THROTTLE STOP

€ 6.00

17

1326801010
ref: 17

SPRING

€ 3.50

18

1357346710
ref: 18

SPRING,THROTTLE VALVE RETURN

€ 3.00

19

1358107910
ref: 19

PLATE

€ 6.50

20

1366116600
ref: 20

NUT

€ 5.00

21

1357748110
ref: 21

ADJUSTER,CABLE

€ 8.00

22

1368116601
ref: 22

CAP

€ 7.00

23

1337346710
ref: 23

PLATE,NEEDLE VALVE FITING

€ 4.50

24

0211203087
ref: 24

SCREW

€ 1.50

25

1326904010
ref: 25

SCREW,AIR

€ 10.00

26

1326801010
ref: 26

SPRING

€ 3.50

28-1

1341709110
ref: 28-1

SPRING

€ 6.00

28-2

1341701010
ref: 28-2

SPRING

€ 3.50

31

1337046710
ref: 31

VALVE ASSY,NEEDLE

€ 44.00

32

1337446710
ref: 32

O RING

€ 4.50

33

0935230503600
ref: 33

HOSE(3X5X600)

€ 8.00

34

1368440A00
ref: 34

HOSE(3X5X650)

€ 7.50

35-1

0949170010
ref: 35-1

JET,MAIN(70)

€ 9.00

35-2

0949172012
ref: 35-2

JET,MAIN(72.5)

€ 7.00

35-3

0949177005
ref: 35-3

JET,MAIN(77.5)

€ 16.50

35-4

0949180008
ref: 35-4

JET,MAIN

€ 9.00

35-5

0949182003
ref: 35-5

JET,MAIN

€ 8.50
