OIL PUMP
OR50 1979 1980 (N) (T) USA (E03)

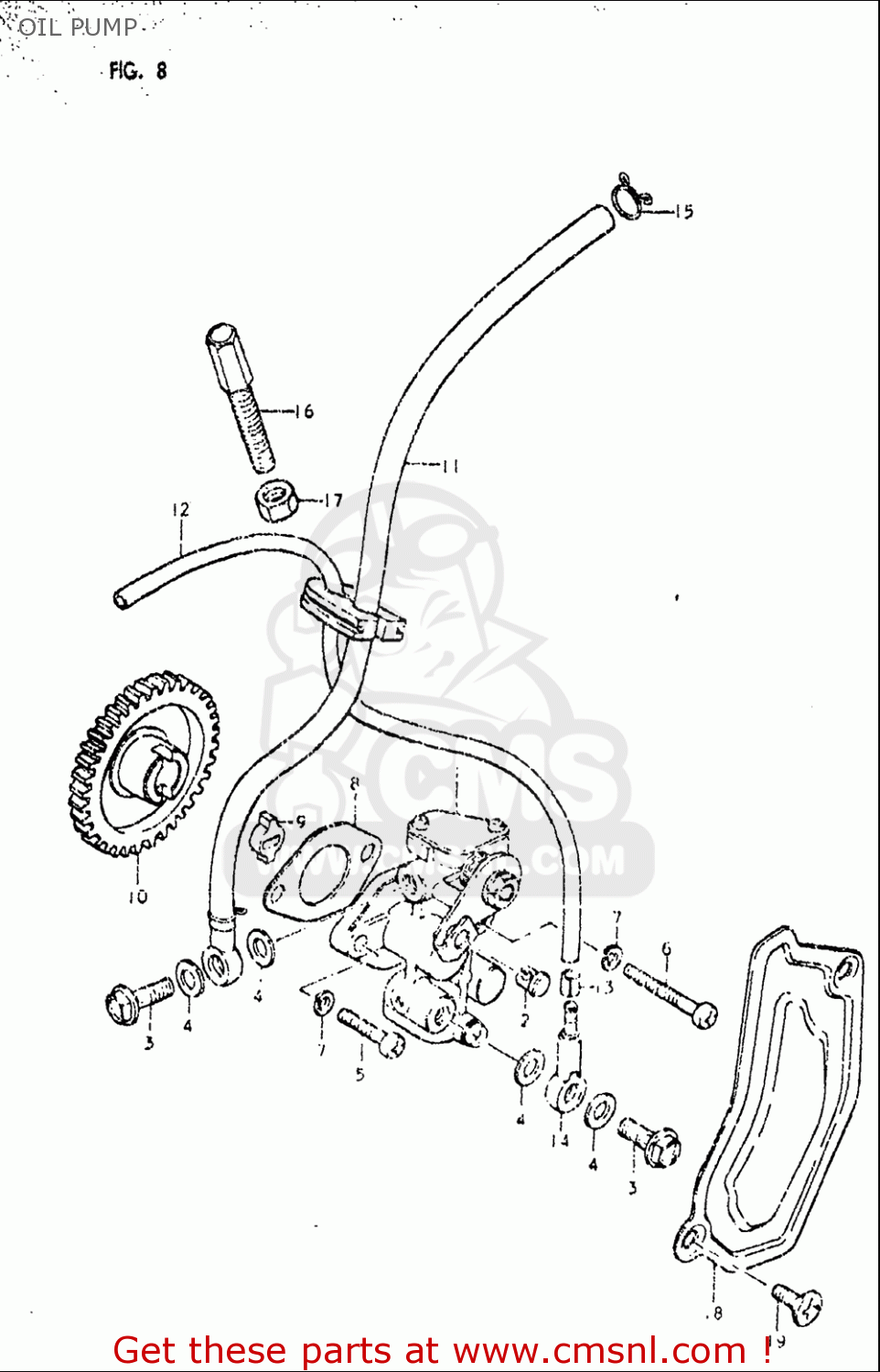

Oil pump diagram OR50 1979 1980 (N) (T) USA (E03)
OIL PUMP OR50 1979 1980 (N) (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1610046112
ref: 1
PUMP ASSY,OIL
€ 172.50
2
1629203112
ref: 2
TERMINAL,CABLE
€ 3.50
3
0936006003
ref: 3
UNION BOLT
€ 5.00
4
0916806004
ref: 4
GASKET(6.2X11X1).2 (NAS)
€ 1.50
5
0211205167
ref: 5
SCREW
€ 2.50
6
0211205303
ref: 6
SCREW
€ 1.50
7
0832101057
ref: 7
WASHER,LOCK
€ 2.00
8
1673103101
ref: 8
GASKET,OIL PUMP (NAS)
€ 2.50
9
1639105031
ref: 9
PIECE,OIL PUMP DRIVE
€ 2.50
10
1632046131
ref: 10
GEAR,OIL PUMP DRIVE
€ 35.00
11
1681007520
ref: 11
HOSE,INLET
€ 17.50
12
1682046102
ref: 12
HOSE,NO.2
€ 8.00
13
0940104401
ref: 13
CLIP
€ 2.50
14
1671035010
ref: 14
VALVE,CHECK
€ 19.50
15
0940108401
ref: 15
CLIP
€ 1.50
16
0911908014
ref: 16
BOLT
€ 3.50
17
083100008A
ref: 17
NUT
€ 2.00
18
1130146890
ref: 18
CAP,OIL PUMP INSPECTION
€ 18.50
19
0212206127
ref: 19
SCREW
€ 3.00
