REAR SWINGING ARM
OR50 1979 1980 (N) (T) USA (E03)

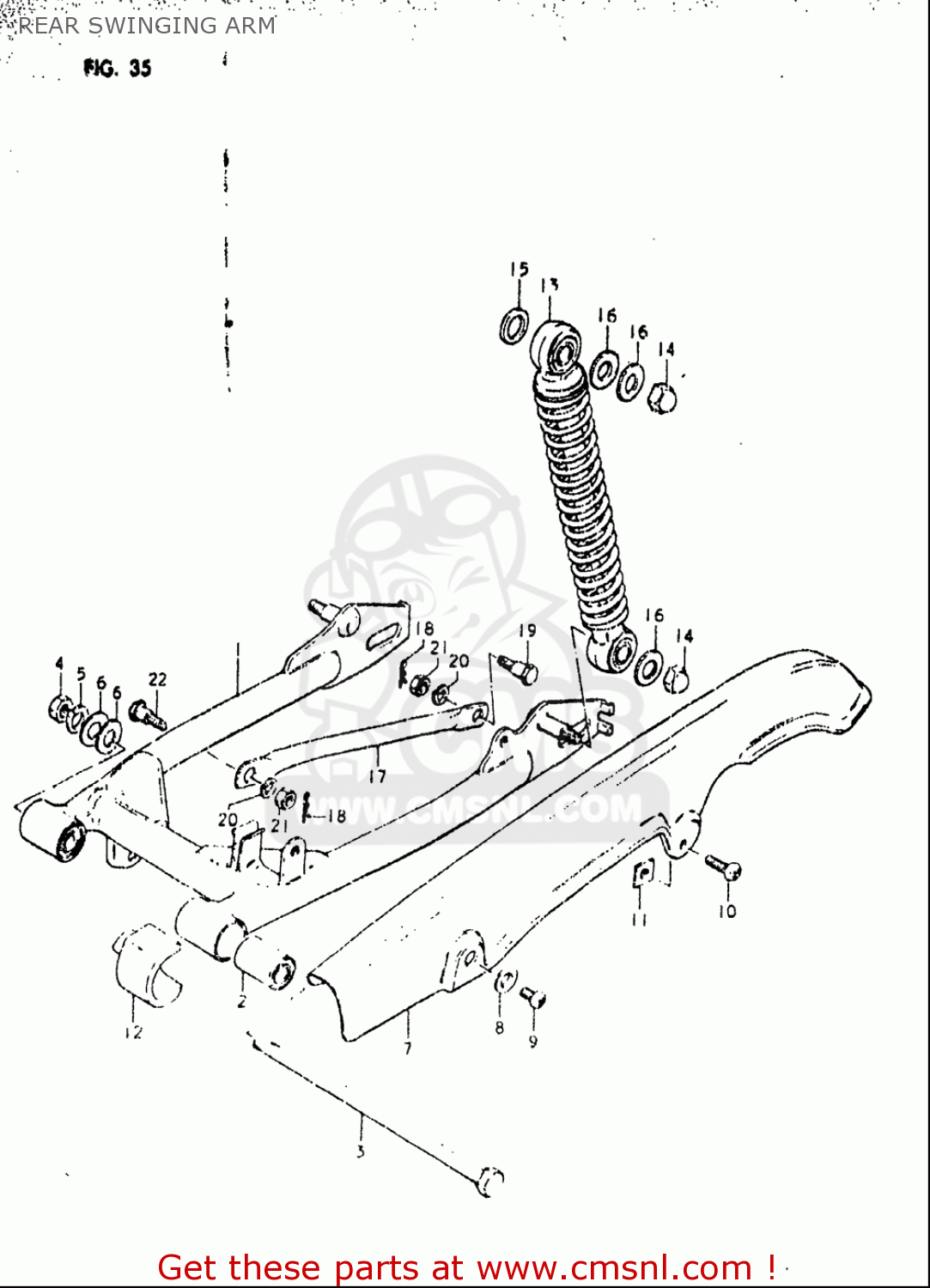

Rear swinging arm diagram OR50 1979 1980 (N) (T) USA (E03)
REAR SWINGING ARM OR50 1979 1980 (N) (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
2
0931910024
ref: 2
BUSH
€ 8.50
3
6121125001
ref: 3
SHAFT,RR SHOCK ABSORBER UPR
€ 12.00
4
0831000107
ref: 4
NUT
€ 2.50
5
0832101107
ref: 5
WASHER,LOCK
€ 2.00
6
0832201107
ref: 6
WASHER
€ 2.50
8
0916906010
ref: 8
WASHER
€ 3.00
9
0211206087
ref: 9
SCREW
€ 2.00
10
0211206127
ref: 10
SCREW
€ 2.00
11
6131643000
ref: 11
NUT,CHAIN CASE RR
€ 3.00
12
6127346001
ref: 12
BUFFER,CHAIN TOUCH DEFENSE
€ 19.00
14
0831310107
ref: 14
NUT
€ 2.50
15
0832201127
ref: 15
WASHER
€ 2.00
16
0916010127
ref: 16
WASHER (10.5X24X2.3)
€ 2.00
18-1
0938510005
ref: 18-1
CLIP
€ 1.50
18-2
0411120158
ref: 18-2
PIN
€ 1.50
19
0911108013
ref: 19
BOLT(8X26.5)
€ 3.00
20
0832101087
ref: 20
WASHER,LOCK
€ 2.00
21
0914008008
ref: 21
NUT
€ 1.50
22
0911108015
ref: 22
BOLT(8X22)
€ 3.00
