REAR COMBINATION LAMP
OR50 1979 1980 (N) (T) USA (E03)

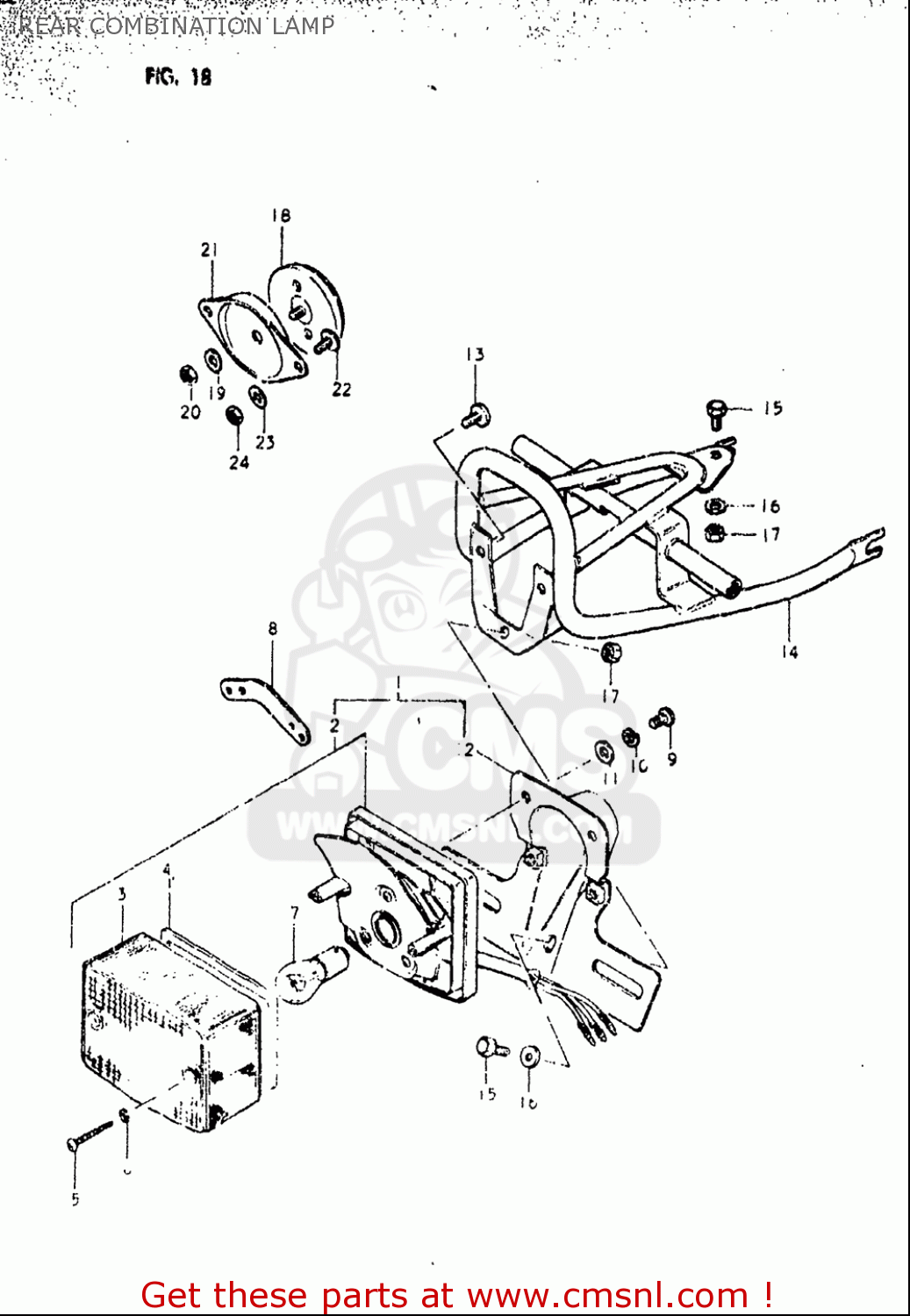

Rear combination lamp diagram OR50 1979 1980 (N) (T) USA (E03)
REAR COMBINATION LAMP OR50 1979 1980 (N) (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
3
3571248510
ref: 3
LENS
€ 80.50
4
3571348510
ref: 4
GASKET (NAS)
€ 8.50
5
0321104306
ref: 5
SCREW
€ 1.50
6
3562743010
ref: 6
GASKET (NAS)
€ 2.00
7
0947106030
ref: 7
BULB(6V32/3CP,STANLEY)
€ 12.50
9
0211205127
ref: 9
SCREW
€ 2.50
10
0832101057
ref: 10
WASHER,LOCK
€ 2.00
11
083220105A
ref: 11
WASHER
€ 2.50
13
0211206087
ref: 13
SCREW
€ 2.00
15
0150006127
ref: 15
BOLT
€ 2.00
16
083220106A
ref: 16
WASHER
€ 2.00
17
0831000067
ref: 17
NUT
€ 2.50
18
3597030910
ref: 18
REFLEX REFLECTOR,RR
€ 47.50
19
0832201057
ref: 19
WASHER
€ 2.50
20
0831000057
ref: 20
NUT
€ 2.50
22
0214205127
ref: 22
SCREW
€ 1.50
23
083220105A
ref: 23
WASHER
€ 2.50
24
0831000057
ref: 24
NUT
€ 2.50
