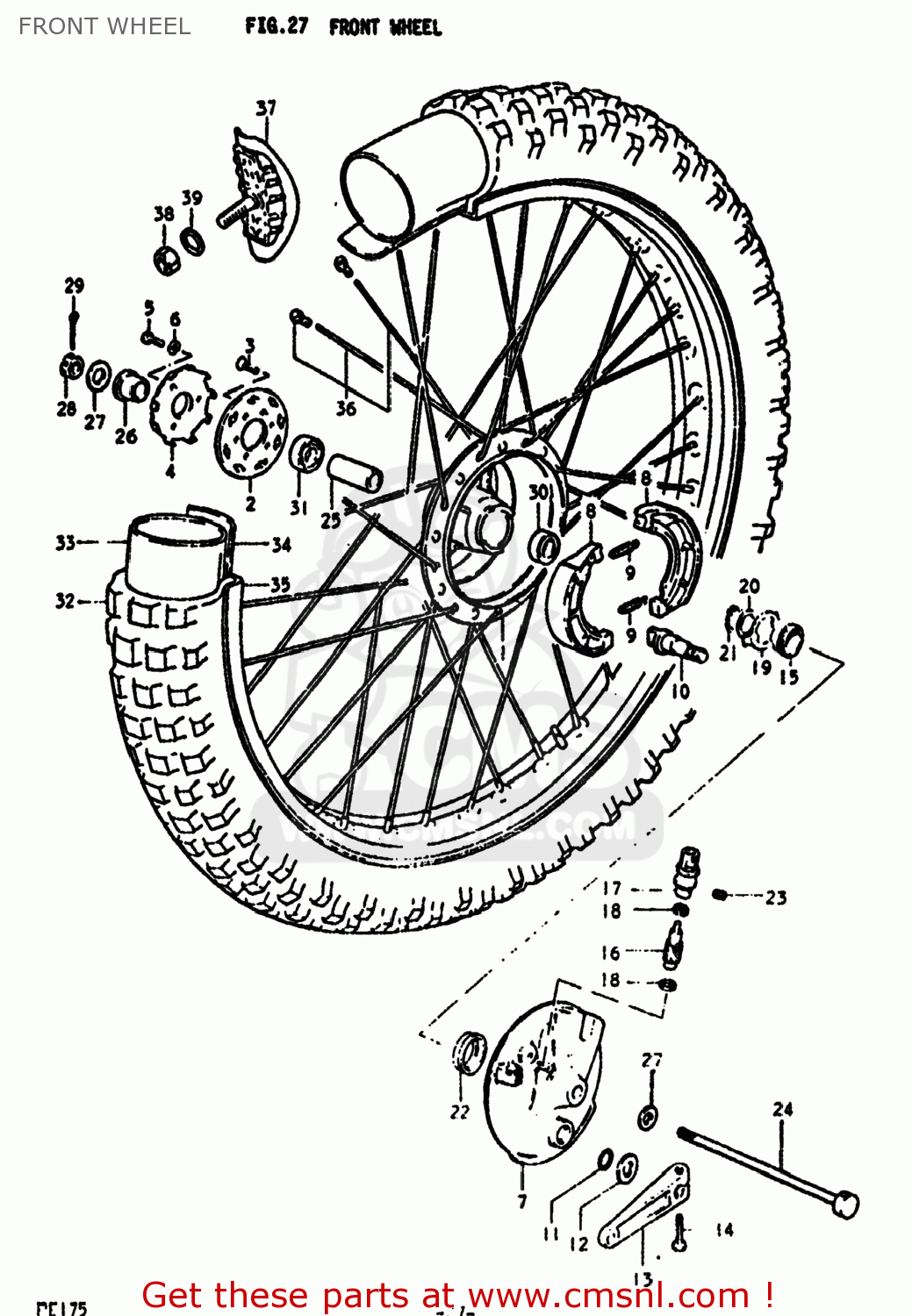

FRONT WHEEL

ref

part #

description

quantity

1

5411041301
ref: 1

HUB,FRONT

€ 85.50

2

5411241301
ref: 2

FLANGE,FRONT HUB,RIGHT

€ 31.00

3

0212206168
ref: 3
02122-06167

SCREW

€ 2.00

4

5415130500
ref: 4

RETAINER,FR HUB BEARING,R

€ 7.00

5

0110706168
ref: 5
01500-06167

BOLT, UPPER

€ 3.00

6

0832121068
ref: 6
08321-01067

LOCK WASHER

€ 2.50

7-1

5421041501
ref: 7-1
54210-41502

PANEL,FRONT HUB

€ 0.00

7-2

5421041502
ref: 7-2

PANEL,FRONT HUB

€ 0.00

8-1

5441007002
ref: 8-1
54401-07810

SHOE,BRAKE

€ 35.00

8-2

5441041500
ref: 8-2
54400-07870

SHOE BRAKE (MCA)

€ 35.00

9

0944307001
ref: 9
09443-07025

SPRING(L:34)

€ 2.50

10

5444141300
ref: 10

CAM,FRONT BRAKE

€ 15.50

11

0928012001
ref: 11

O RING(D:2.5,ID:11.4)

€ 2.50

12

0916012011
ref: 12

WASHER(12.5X20X1)

€ 1.50

13

5445141500
ref: 13

LEVER,FRONT BRAKE CAM

€ 22.50

14

0110706258
ref: 14
01500-06257

BOLT

€ 2.00

15

5461141500
ref: 15
54611-41501

GEAR,SPEEDOMETER

€ 8.00

16

5462141500
ref: 16
54621-41501

PINION,SPEEDOMETER

€ 5.00

17

5463201001
ref: 17

BUSH,METER GEAR OUTER

€ 9.00

18

0916005001
ref: 18
09160-05001-A05

WASHER (5.1X9X0.4)

€ 2.00

19

5466129300
ref: 19

DRIVER,SPEEDOMETER GEAR

€ 4.00

20

0916018002
ref: 20

WASHER(18.5X24X1)

€ 2.00

21

0833111189
ref: 21

CIRCLIP

€ 2.00

22

0928543001
ref: 22
09283-43004

OIL SEAL (43X58X7)

€ 10.00

23

0913403101
ref: 23
09134-03101-A05

SCREW

€ 1.50

24-1

5471141500
ref: 24-1
64711-43001

AXLE,FRONT

€ 28.50

24-2

5471041510
ref: 24-2
64711-43001

AXLE,FRONT

€ 28.50

25

0918012041
ref: 25
09180-12144

SPACER (12.6X19X52)

€ 4.50

26

5474141100
ref: 26

SPACER,FR AXLE,R

€ 10.00

27

0832211128
ref: 27
08322-01127

WASHER

€ 2.00

28

0831441128
ref: 28
08314-4012A

NUT, REAR AXLE

€ 2.50

29

0411130308
ref: 29
04111-3030A

COTTER PIN

€ 1.50

30-1

0814362010
ref: 30-1
08143-62017

BEARING, LH

€ 11.50

30-2

0814362017
ref: 30-2

BEARING

€ 11.50

31-1

0812362010
ref: 31-1
08133-62017

BEARING

€ 15.00

31-2

0812362017
ref: 31-2
08133-62017

BEARING, RH

€ 15.00

32

5510041500
ref: 32

TIRE,FRONT

€ 66.00

33

5520016510
ref: 33

TUBE

€ 32.50

34

5526116510
ref: 34
55261-14540

PROTECTOR,WHEEL,INNER

€ 5.00

35

5531141320
ref: 35

RIM,FRONT WHEEL

€ 128.00

36

5530041840
ref: 36
55300-41841

SPOKE SET,FRONT

€ 52.00

37

6527030001
ref: 37
65270-43D00

STOPPER,BEAD

€ 30.50

38

0831012088
ref: 38
08310-00087

NUT

€ 2.00

39

0832211088
ref: 39
08322-01087

WASHER

€ 2.00
