HEADLAMP

PE175 1978 (C) USA (E03)

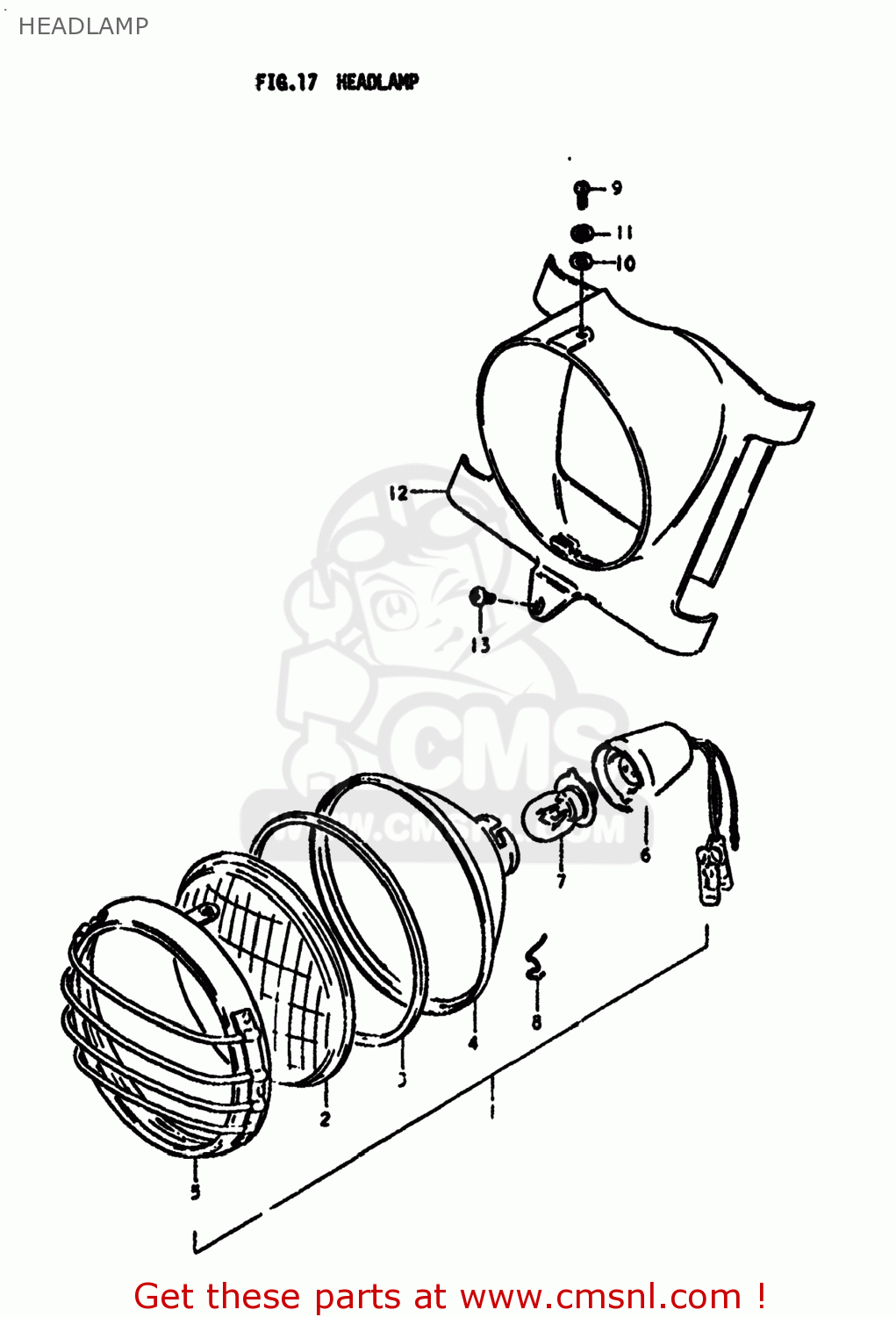

Headlamp diagram PE175 1978 (C) USA (E03)

prices are in EUR

ref

part #

description

quantity

3510041500
ref: 1

HEADLAMP ASSEMBLY

€ 47.00

3512441500
ref: 2

LENS,HEADLAMP

€ 14.00

3512543020
ref: 3

GASKET,HEADLAMP LENS (NAS)

€ 3.00

3512341500
ref: 4

REFLECTOR,HEADLAMP

€ 19.00

3511141500
ref: 5

RIM,HEADLAMP

€ 16.50

3517141500
ref: 6
35171-41501

SOCKET,HEADLAMP

€ 15.50

0947106022
ref: 7

BULB(6V15/15W/STANLEY,A3598HA)

€ 6.50

3512843020
ref: 8

SPRING

€ 4.00

0211204128
ref: 9
02112-0412A

SCREW

€ 1.50

0832221048
ref: 10
08322-01047

WASHER

€ 2.00

0832121048
ref: 11
08321-0104A

LOCK WASHER

€ 2.00

HOUSING,HEADLAMP

€ 27.00

0214205107
ref: 13

SCREW

€ 2.50
