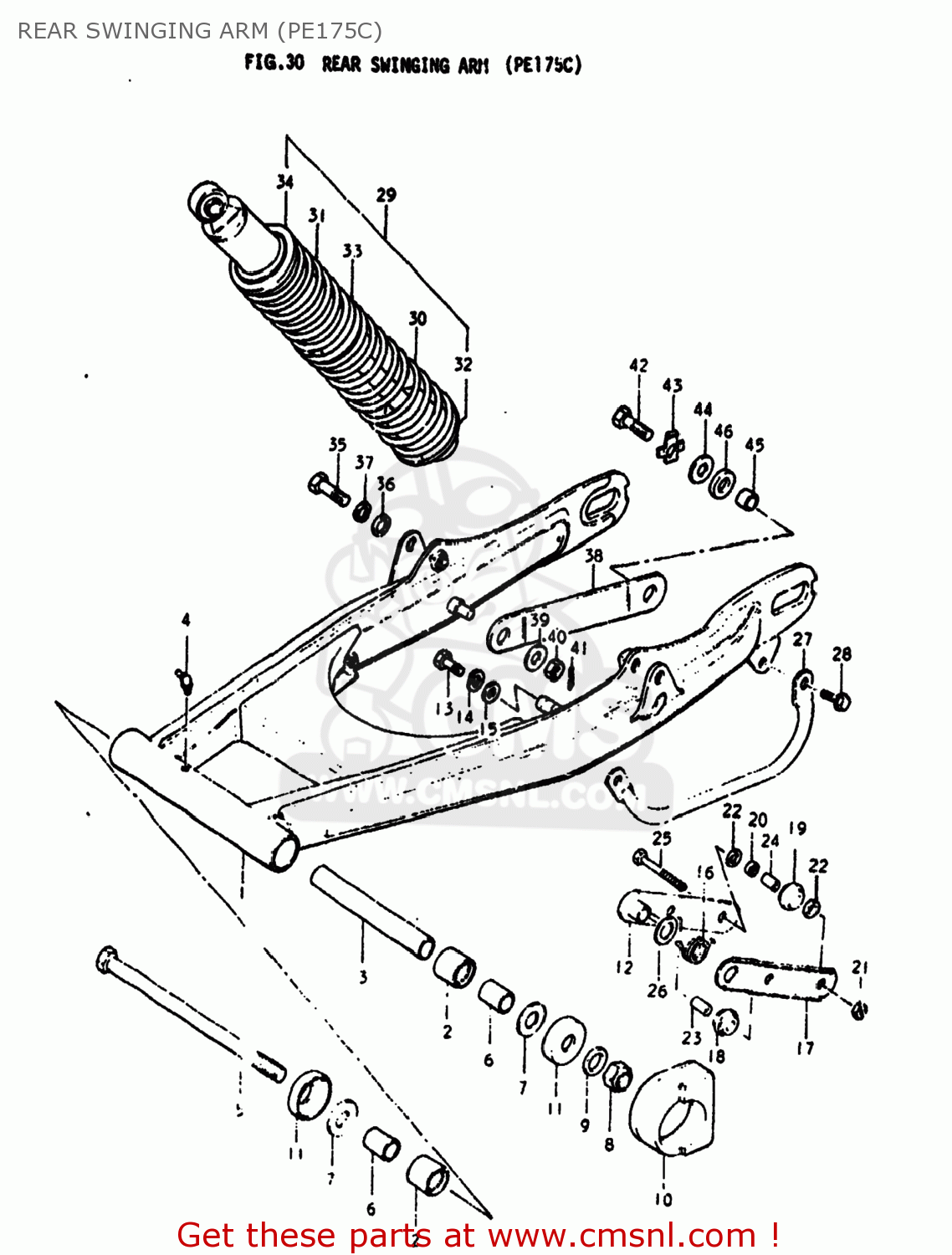

REAR SWINGING ARM (PE175C)

ref

part #

description

quantity

1

6110141831019
ref: 1

SWING ARM ASSEMBLY,REAR

€ 86.50

2

0926317011
ref: 2
09263-17027

ROLLER BEARING (17X24X2

€ 13.50

3

6128241300
ref: 3

SPACER,REAR SWING ARM PIVOT

€ 8.50

4

0835131008
ref: 4
08351-3100A

NIPPLE,GREASE

€ 10.50

5

6121141301
ref: 5

SHAFT,REAR SWING ARM

€ 14.00

6

6125141300
ref: 6

SPACER,RR SWGARM PIVOT

€ 12.50

7

0821112281
ref: 7

WASHER

€ 2.00

8

0831921128
ref: 8
08319-2112A

NUT 12MM

€ 4.00

9

0832211128
ref: 9
08322-01127

WASHER

€ 2.00

10

6127341310
ref: 10

BUFFER,CHAIN TOUCH DEFENSE

€ 12.00

11

6126241500
ref: 11

COVER,RR SWGARM DUST SEAL

€ 7.50

12

6135041301
ref: 12

TENSIONER,CHAIN

€ 25.00

13

0110706128
ref: 13
01500-06127

BOLT

€ 2.00

14

0832121068
ref: 14
08321-01067

LOCK WASHER

€ 2.50

15

0916006007
ref: 15
09160-06084

WASHER

€ 2.00

16

0944825003
ref: 16

SPRING

€ 3.00

17

6135241301
ref: 17

PLATE,CHAIN TENSIONER OUTER

€ 8.00

18

6134541100
ref: 18

RUBBER,CHAIN GUARD

€ 4.50

19

6134541501
ref: 19

ROLLER,CHAIN TENSIONER LWR

€ 6.00

20

0926310007
ref: 20

BEARING(10X14X15)

€ 21.00

21

0831921068
ref: 21
08319-2106A

NUT 6MM

€ 2.00

22

0928410004
ref: 22

SEAL,OIL(10X14.4X3.5)

€ 2.50

23

0918006067
ref: 23

SPACER(6.5X10.5X22.5)

€ 2.50

24

0918006075
ref: 24

SPACER(6.2X10X22.5)

€ 4.00

25

0110706358
ref: 25
09100-06033

BOLT

€ 2.50

26

0832211168
ref: 26
08322-01167

WASHER

€ 2.00

27

6139141500
ref: 27

GUARD

€ 8.50

28

0151708128
ref: 28
01550-08127

BOLT 8X12

€ 3.50

29

6210041500
ref: 29

ABSORBER ASSEMBLY,REAR SHOCK

€ 101.00

30

6221141500
ref: 30

SPRING

€ 16.50

31

6221241500
ref: 31

SPRING

€ 17.50

32

6222540600
ref: 32

NO PRODUCT DESCRIPTION AVAILABLE

€ 9.50

33

6222141650
ref: 33

SPRING

€ 4.50

34

6219141650
ref: 34

GUIDE,SPRING

€ 4.00

35

0910010096
ref: 35
09100-10184

BOLT 10X40

€ 2.50

36

0832211108
ref: 36
08322-01107

WASHER

€ 2.50

37

0832121108
ref: 37
08321-01107

LOCK WASHER

€ 2.00

38

6431141500
ref: 38

TORQUE LINK,REAR

€ 9.00

39

0916010013
ref: 39
09160-10123

WASHER (10.1X21X2.3)

€ 2.00

40

0831022108
ref: 40
08310-00107

NUT

€ 2.50

41

0411120208
ref: 41
04111-2020A

PIN 20X20

€ 1.50

42

0911910012
ref: 42

BOLT

€ 3.50

43

6433341500
ref: 43

NO PRODUCT DESCRIPTION AVAILABLE

€ 1.50

44

0916010028
ref: 44
09160-10035

WASHER

€ 2.00

45

0918010026
ref: 45

SPACER

€ 6.00

46

0916114006
ref: 46

WASHER (14X25X3)

€ 1.50
