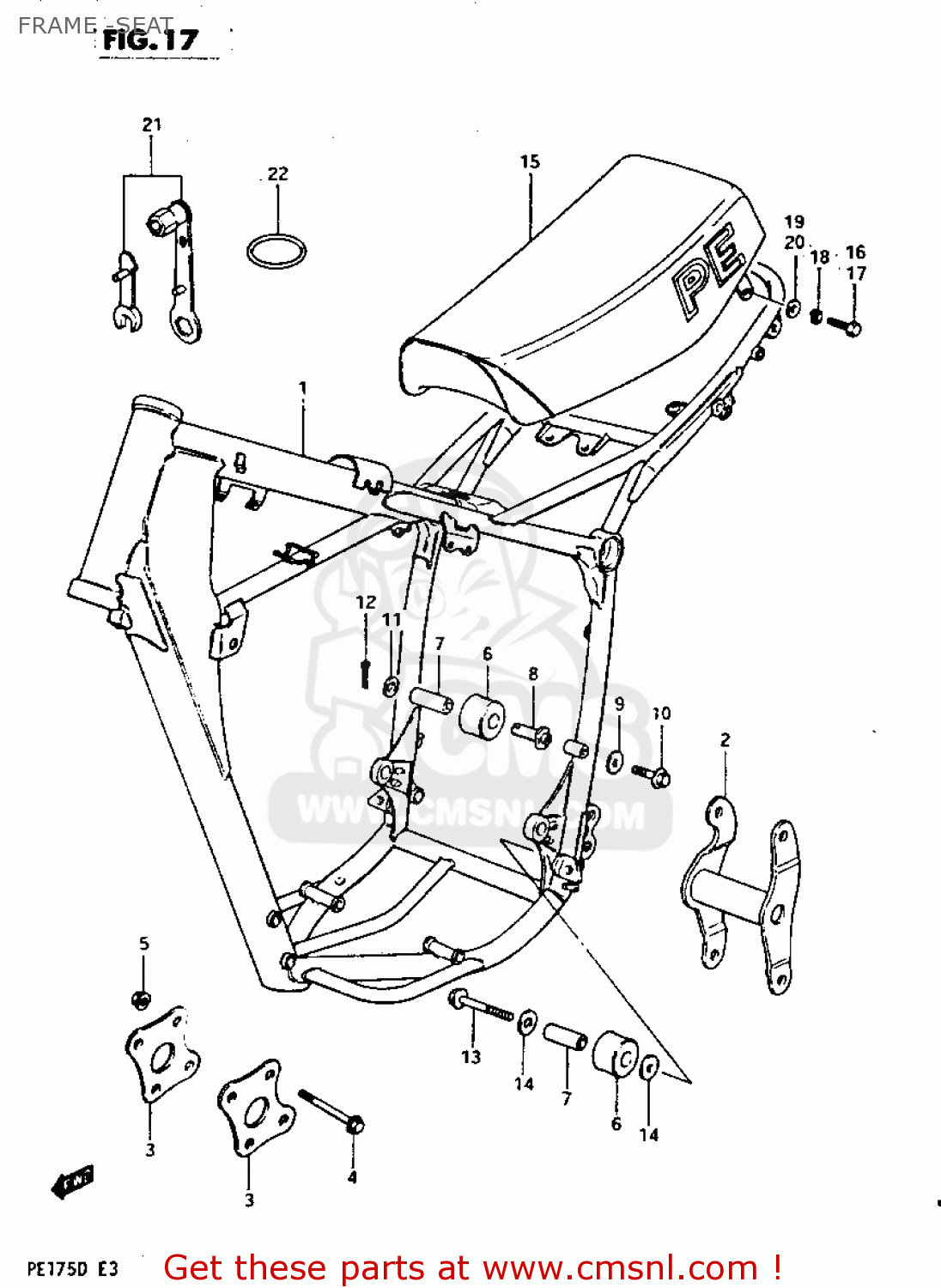

FRAME -SEAT

ref

part #

description

quantity

1

4110014430019
ref: 1

FRAME

€ 234.50

2-1

4191014401
ref: 2-1
MODEL Z

PLATE,ENGINE MOUNTING

€ 20.00

2-2

4191014401
ref: 2-2
MODEL D

PLATE,ENGINE MOUNTING

€ 20.00

3

4199140200
ref: 3

PLATE,ENGINE MOUNTING

€ 13.50

4

0910308037
ref: 4

BOLT(8X67)

€ 6.50

5

0831931087
ref: 5

NUT

€ 2.50

6

4391114200
ref: 6

ROLLER,CHAIN LENGTH CONTROL

€ 18.50

7

4391340400
ref: 7

SPACER,CHAIN LENGTH ROLLER

€ 8.00

8

4391514301
ref: 8

BOSS,CHAIN LENGTH ROLLER

€ 16.50

9

0916006006
ref: 9

WASHER

€ 2.00

10

0151706307
ref: 10

BOLT

€ 2.00

11

0832211128
ref: 11

WASHER

€ 2.00

12

0411125208
ref: 12

PIN 25X20

€ 2.00

13-1

0910308043
ref: 13-1
MODEL Z

BOLT(8X45)

€ 4.50

13-2

0910308083
ref: 13-2
MODEL D

BOLT(8X41)

€ 3.50

14

0916008035
ref: 14

WASHER

€ 2.00

15-1

451001440049R
ref: 15-1
MODEL Z

SEAT ASSEMBLY

€ 205.00

15-2

451001440049R
ref: 15-2
MODEL D

SEAT ASSEMBLY

€ 205.00

16-1

0110708168
ref: 16-1
MODEL Z

BOLT

€ 2.00

16-2

0110708258
ref: 16-2
MODEL Z

BOLT

€ 2.50

17-1

0110708458
ref: 17-1
MODEL Z

BOLT 8X45

€ 2.50

17-2

0110708408
ref: 17-2
MODEL D

BOLT 8X40

€ 3.00

18

0832121088
ref: 18

LOCK WASHER

€ 2.00

19

0916008033
ref: 19

WASHER (8.5X20X2.6)

€ 1.50

20-1

0916008002
ref: 20-1
MODEL Z

WASHER (8.5X29X1.6)

€ 2.00

20-2

0916008007
ref: 20-2
MODEL D

WASHER (8.7X22X2)

€ 2.00

21

9651040500
ref: 21

SPARK PLUG WRENCH

€ 40.50

22

9643140500
ref: 22

O RING TOOL FITTING

€ 3.50
