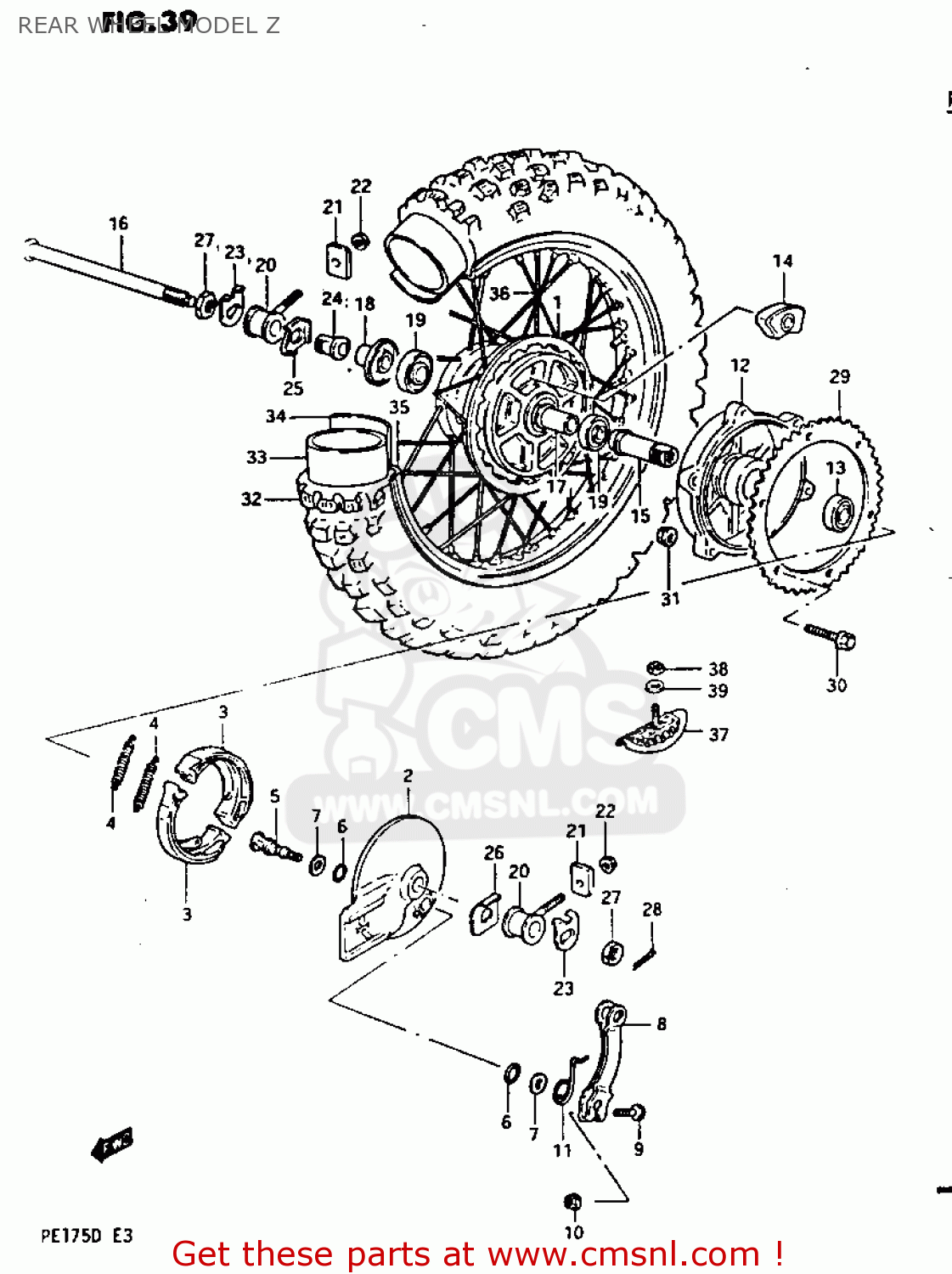

REAR WHEEL MODEL Z

ref

part #

description

quantity

1

6411014400
ref: 1

HUB,REAR WHEEL

€ 346.50

2

6421014400
ref: 2

PANEL,REAR HUB

€ 123.00

3

5441040500
ref: 3

SHOE,BRAKE

€ 58.00

4

0944307025
ref: 4

SPRING(L:35.8)

€ 2.50

5

6444140501
ref: 5

CAM,REAR BRAKE

€ 11.50

6

0928014003
ref: 6

O-RING (D:2.4 ID:13.8)

€ 3.50

7

0916014001
ref: 7

WASHER (14.5X22X1.6)

€ 2.50

8

6445140601
ref: 8

LEVER,REAR BRAKE CAM

€ 17.50

9

0151706307
ref: 9

BOLT

€ 2.00

10

0915906017
ref: 10

NUT

€ 2.50

11

0944831018
ref: 11

SPRING

€ 4.50

12

6430940500
ref: 12

DRUM ASSEMBLY,REAR BRAKE

€ 204.50

13

0926222015
ref: 13

BALL BEARING 22X50X14

€ 44.00

14

6465040600
ref: 14

ABSORBER,RR HUB SHOCK

€ 16.00

15

6476114400
ref: 15

SHAFT,REAR BRAKE DRUM

€ 49.00

16

6471114400
ref: 16

AXLE,REAR

€ 55.00

17

6473040500
ref: 17

SPACER,REAR HUB BEARING

€ 11.50

18

6474014400
ref: 18

SPACER,REAR AXLE,RIGHT

€ 19.00

19

0812363027
ref: 19

BEARING

€ 19.00

20

6141014121
ref: 20

ADJUSTER,CHAIN

€ 24.00

21

6142114210
ref: 21

PLATE,CHAIN ADJUSTER GUIDE,R

€ 139.50

22

0831931087
ref: 22

NUT

€ 2.50

23

6471214301
ref: 23

WASHER,CHAIN ADJUSTER GUIDE

€ 7.50

24

6478114201
ref: 24

SPACER,CHAIN ADJUSTER

€ 27.00

25

6478214200
ref: 25

PLATE,CHAIN ADJUSTER,RIGHT

€ 0.00

26

6479214400
ref: 26

PLATE CH ADJUSTER LH

€ 6.50

27

0914022003
ref: 27

NUT

€ 10.00

28

0411130208
ref: 28

PIN 30X20

€ 1.50

29-1

6451140510
ref: 29-1
NT:48

SPROCKET,REAR (NT:48)(AL)

€ 116.50

29-2

6451140500
ref: 29-2
NT:46,OPT

SPROCKET,REAR (NT:46)(AL)

€ 102.00

29-3

6451140520
ref: 29-3
NT:50,OPT

SPROCKET,REAR (NT:50)(AL)

€ 186.50

30

0910308048
ref: 30

BOLT(8X30)

€ 3.50

31

0831931087
ref: 31

NUT

€ 2.50

32-1

6510014110
ref: 32-1
IRC

TIRE

€ 50.00

32-2

6510014220
ref: 32-2
BS

TIRE

€ 0.00

33

6520041330
ref: 33

TUBE ASSEMBLY,WHEEL,INNER

€ 34.00

34

6526133030
ref: 34

PROTECTOR,INNER TUBE

€ 5.50

35

6531114410
ref: 35

RIM,REAR WHEEL

€ 0.00

36

6532014400
ref: 36

SPOKE SET,REAR

€ 48.00

37

6527046910
ref: 37

STOPPER,BEAD

€ 30.50

38

0831012088
ref: 38

NUT

€ 2.00

39

0832211088
ref: 39

WASHER

€ 2.00
