REAR WHEEL MODEL D
PE175 1982 (Z)

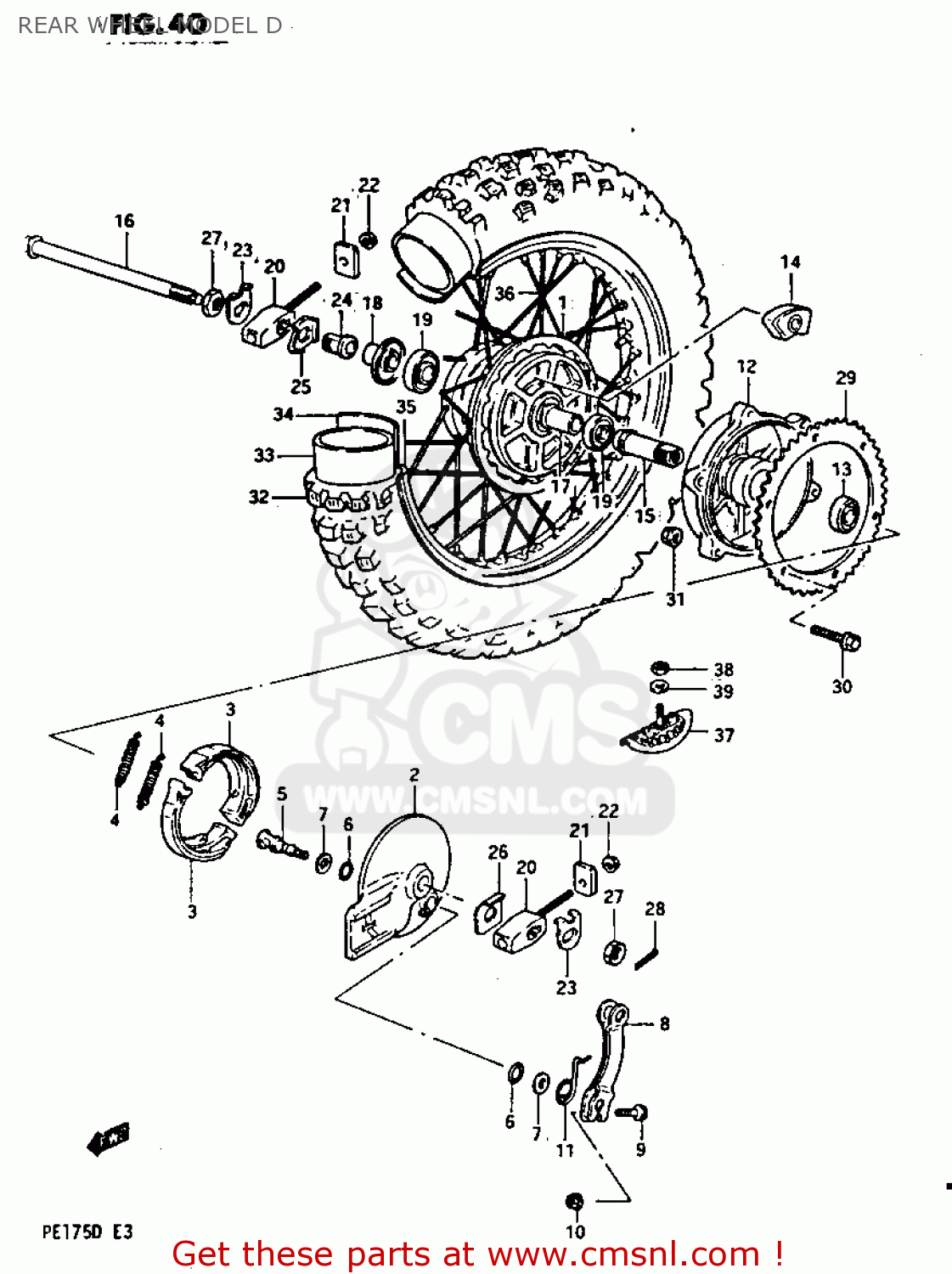

Rear wheel model d diagram PE175 1982 (Z)
REAR WHEEL MODEL D PE175 1982 (Z)
×
prices are in EUR
ref
part #
description
quantity
1
6411014400
ref: 1
HUB,REAR WHEEL
€ 346.50
2
6421014400
ref: 2
PANEL,REAR HUB
€ 123.00
3
5441040500
ref: 3
SHOE,BRAKE
€ 58.00
4
0944307025
ref: 4
SPRING(L:35.8)
€ 2.50
5
6444140501
ref: 5
CAM,REAR BRAKE
€ 11.50
6
0928014003
ref: 6
O-RING (D:2.4 ID:13.8)
€ 3.50
7
0916014001
ref: 7
WASHER (14.5X22X1.6)
€ 2.50
8
6445140601
ref: 8
LEVER,REAR BRAKE CAM
€ 17.50
9
0151706307
ref: 9
BOLT
€ 2.00
10
0915906017
ref: 10
NUT
€ 2.50
11
0944831018
ref: 11
SPRING
€ 4.50
12
6430940500
ref: 12
DRUM ASSEMBLY,REAR BRAKE
€ 204.50
13
0926222015
ref: 13
BALL BEARING 22X50X14
€ 44.00
14
6465040600
ref: 14
ABSORBER,RR HUB SHOCK
€ 16.00
15
6476114400
ref: 15
SHAFT,REAR BRAKE DRUM
€ 49.00
16
6471114400
ref: 16
AXLE,REAR
€ 55.00
17
6473040600
ref: 17
SPACER,REAR HUB BEARING
€ 12.00
18
6474014400
ref: 18
SPACER,REAR AXLE,RIGHT
€ 19.00
19
0812363027
ref: 19
BEARING
€ 19.00
20
6141014121
ref: 20
ADJUSTER,CHAIN
€ 24.00
21
6142114210
ref: 21
PLATE,CHAIN ADJUSTER GUIDE,R
€ 139.50
22
0831931087
ref: 22
NUT
€ 2.50
23
6471214301
ref: 23
WASHER,CHAIN ADJUSTER GUIDE
€ 7.50
24
6478114201
ref: 24
SPACER,CHAIN ADJUSTER
€ 27.00
25
6478214200
ref: 25
PLATE,CHAIN ADJUSTER,RIGHT
€ 8.50
26
6479214400
ref: 26
PLATE CH ADJUSTER LH
€ 6.50
27
0914022003
ref: 27
NUT
€ 10.00
28
0411130208
ref: 28
PIN 30X20
€ 1.50
29-1
6451140510
ref: 29-1
NT:48
SPROCKET,REAR (NT:48)(AL)
€ 116.50
29-2
6451140500
ref: 29-2
NT:46,OPT
SPROCKET,REAR (NT:46)(AL)
€ 102.00
29-3
6451140520
ref: 29-3
NT:50,OPT
SPROCKET,REAR (NT:50)(AL)
€ 186.50
30
0910308048
ref: 30
BOLT(8X30)
€ 3.50
31
0831931087
ref: 31
NUT
€ 2.50
32-1
6510014110
ref: 32-1
IRC
TIRE
€ 50.00
32-2
6510014220
ref: 32-2
BS
TIRE
€ 0.00
33
6520041330
ref: 33
TUBE ASSEMBLY,WHEEL,INNER
€ 34.00
34
6526133030
ref: 34
PROTECTOR,INNER TUBE
€ 5.50
35
6531114410
ref: 35
RIM,REAR WHEEL
€ 0.00
36
6532014400
ref: 36
SPOKE SET,REAR
€ 48.00
37
6527046910
ref: 37
STOPPER,BEAD
€ 30.50
38
0831012088
ref: 38
NUT
€ 2.00
39
0832211088
ref: 39
WASHER
€ 2.00
