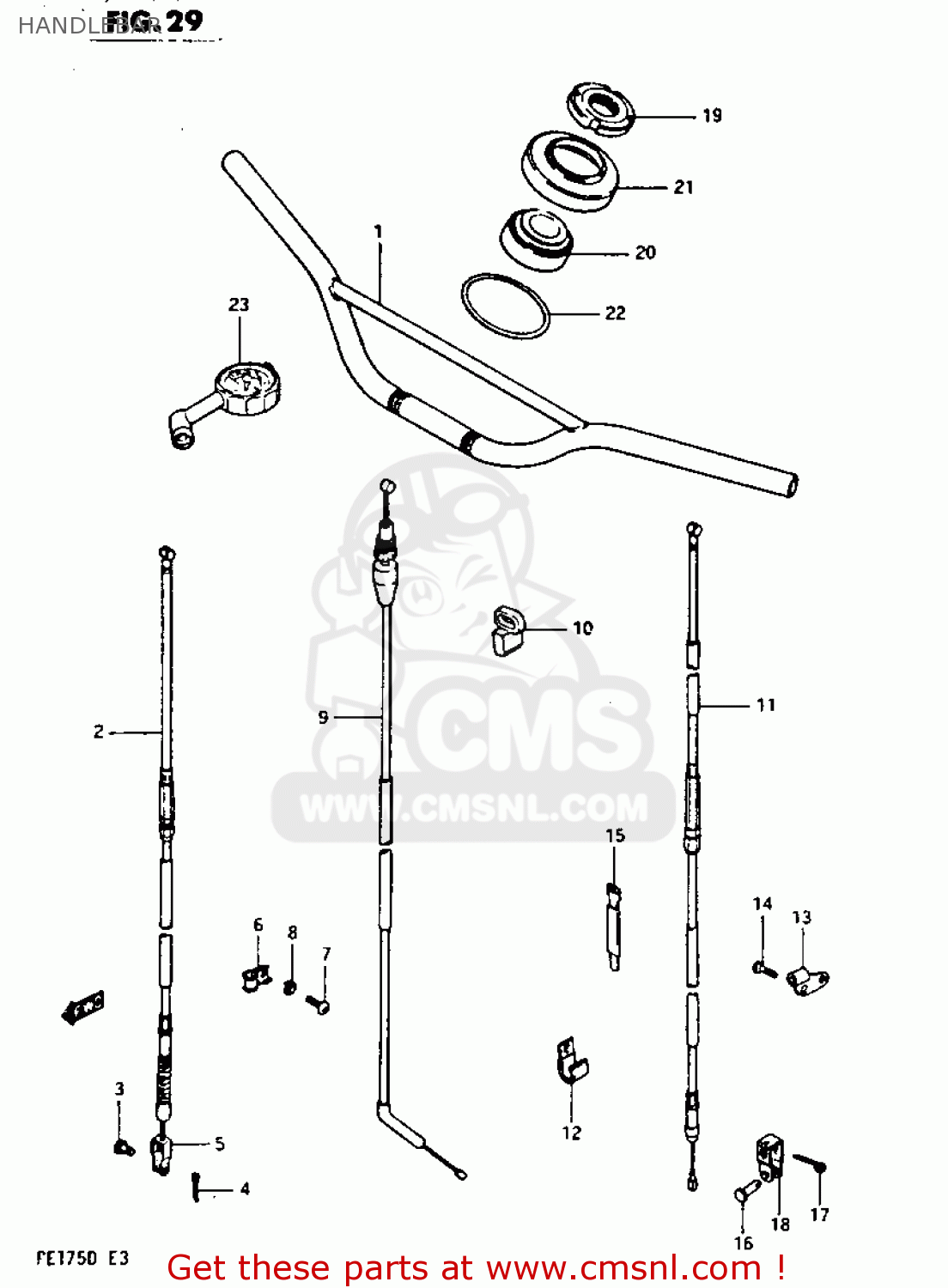

HANDLEBAR

ref

part #

description

quantity

1-1

561101421108C
ref: 1-1
MODEL Z

HANDLEBAR

€ 76.50

1-2

5611014211291
ref: 1-2
MODEL D

HANDLEBAR

€ 63.00

2

5811014400
ref: 2

CABLE,FR BRAKE

€ 35.00

3

0920006013
ref: 3

PIN(L:13.5)

€ 2.00

4

0411120158
ref: 4

PIN

€ 1.50

5

5866141400
ref: 5

BRAKE CABLE HOOK

€ 0.00

6

5862014201
ref: 6

GUIDE,CABLE

€ 6.50

7

0211206207
ref: 7

SCREW

€ 2.00

8

0832101067
ref: 8

WASHER,LOCK

€ 2.50

9

5830040X02
ref: 9

CABLE ASSY,THROTTLE

€ 33.00

10

5862129301
ref: 10

GUIDE,CLUTCH CABLE

€ 5.00

11

5821041410
ref: 11

CABLE,CLUTCH

€ 34.50

12

0940300069
ref: 12

CLAMP

€ 8.50

13

5863441300
ref: 13

STOPPER,CLUTCH CABLE

€ 9.00

14

0211206107
ref: 14

SCREW

€ 1.50

15

0940718301
ref: 15

CLAMP

€ 6.00

16

0920006004
ref: 16

PIN(L:13)

€ 1.50

17

0411120158
ref: 17

PIN

€ 1.50

18

5863541400
ref: 18

HOOK,CLUTCH CABLE

€ 10.50

19

5163128000
ref: 19

NUT,STEERING STEM(25X44X10)

€ 12.50

20

0926525008
ref: 20

TAPER,ROLLER BEARING

€ 48.50

21

5164340502
ref: 21

DUST SEAL,STEERING UPR

€ 8.00

22

0928070004
ref: 22

O RING(D:3.53,ID:69.44)

€ 3.50

23

9620041330
ref: 23

GAUGE ASSY,AIR PRESSURE

€ 77.50
