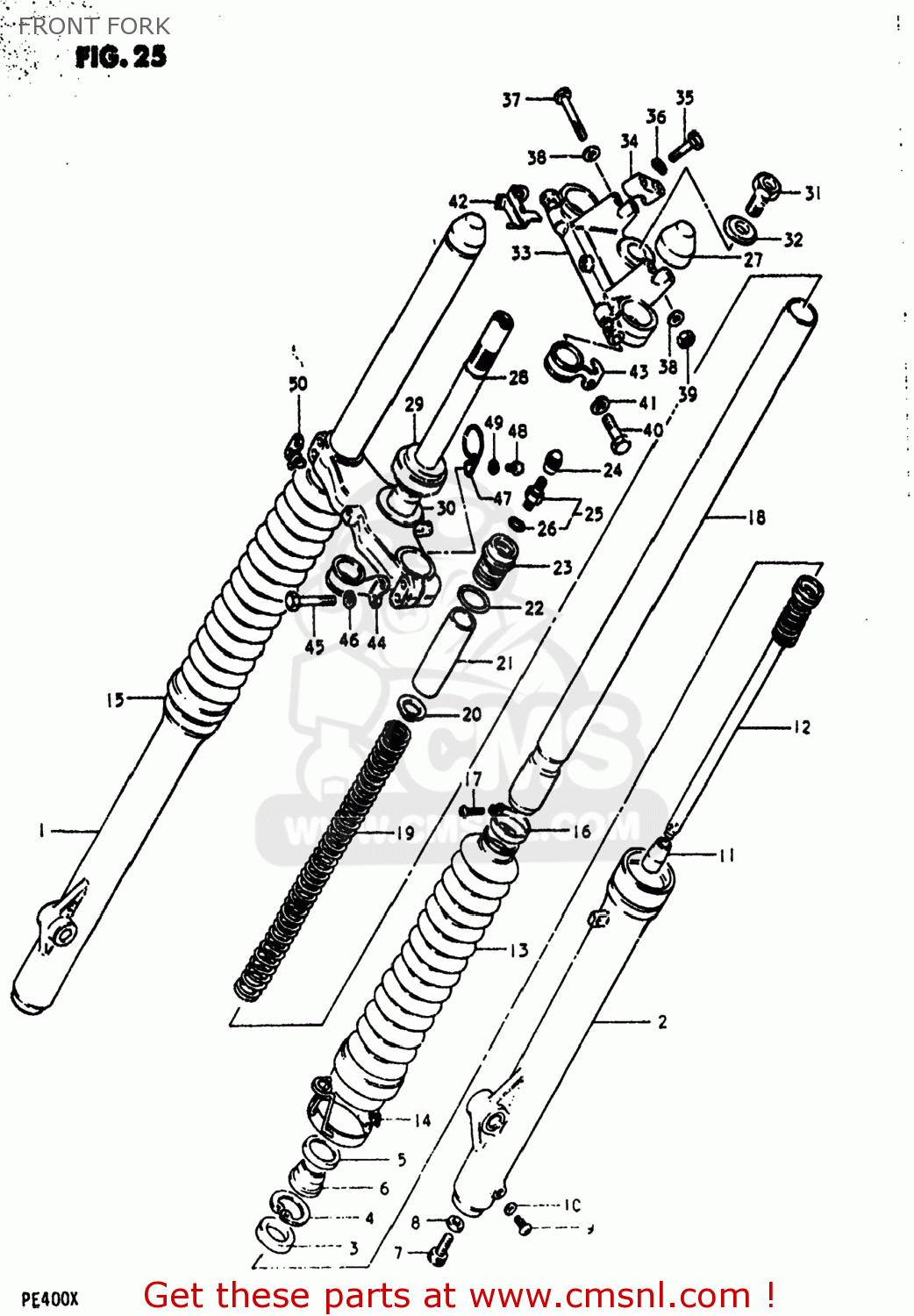

FRONT FORK

ref

part #

description

quantity

0

5110040600
ref: 0

DAMPER SET

€ 0.00

1

5113040500
ref: 1

TUBE,OUTER,RIGHT

€ 101.00

2

5114040500
ref: 2

TUBE,OUTER,LEFT

€ 0.00

3

5115341211
ref: 3
51153-16730

OIL SEAL,FRONT FORK

€ 28.50

4

5115630400
ref: 4

5115630400

5

5114940500
ref: 5

CASE,DUST SEAL

€ 7.50

6

5117340500
ref: 6

SEAL,DUST

€ 9.00

7

5114716510
ref: 7

BOLT,FORK CYLINDER(10X25)

€ 3.50

8

5114841310
ref: 8

GASKET (NAS)

€ 2.50

9

0211204088
ref: 9
02112-04087

SCREW

€ 1.50

10

5118303010
ref: 10

GASKET,DRAIN,PLUG (NAS)

€ 3.00

11

5119541210
ref: 11
51195-49071

PIECE,OIL LOCK

€ 12.00

12

5114640500
ref: 12

CYLINDER,FRONT FORK

€ 89.50

13

5157141211
ref: 13
51571-38265-38K

BOOT

€ 38.00

14

5157240500
ref: 14

BAND,FORK COVER BOOT

€ 0.00

15

5157341410
ref: 15

BAND,FRONT FORK COVER

€ 10.00

16

5157541410
ref: 16

BAND,BOOT

€ 8.00

17

0211204168
ref: 17
02112-0416A

SCREW

€ 1.00

18

5111040500
ref: 18

TUBE,FORK,INNER

€ 184.50

19

5117140600
ref: 19

SPRING

€ 0.00

20

5117238010
ref: 20

GUIDE,FRONT FORK SPRING C

€ 9.50

21

5117638010
ref: 21

COLLAR,SPRING

€ 0.00

22

5111716310
ref: 22

O RING

€ 4.50

23

5135140500
ref: 23

CAP,FORK INNER TUBE

€ 0.00

24

5129449000
ref: 24

CAP,VALVE

€ 22.50

25

5129349001
ref: 25

VALVE

€ 18.00

26

5111741211
ref: 26

O RING

€ 6.50

27

5118941220
ref: 27

CAP

€ 6.00

28

514104050008C
ref: 28
51410-40510-08C

STEM,STEERING

€ 121.50

29

0926530005
ref: 29
09265-30009

BEARING

€ 49.50

30

0821130402
ref: 30
09181-30184

WASHER,THRUST

€ 4.00

31

5135141320
ref: 31

BOLT

€ 8.50

32

5135641310
ref: 32

WASHER

€ 6.00

33

513114050008C
ref: 33

HEAD,STEERING STEM

€ 287.50

34

562114030008C
ref: 34

HOLDER,HANDLEBAR

€ 7.00

35

0110708358
ref: 35
01500-0835B

BOLT

€ 3.50

36

0832121088
ref: 36
08321-01087

LOCK WASHER

€ 2.00

37

0110708508
ref: 37
01500-08507

BOLT 8X50

€ 3.00

38

0832221088
ref: 38
08322-01087

WASHER

€ 2.00

39

0831012088
ref: 39
08310-00087

NUT

€ 2.00

40

0110710458
ref: 40
01500-1045A

BOLT

€ 2.00

41

0832121108
ref: 41
08321-01107

LOCK WASHER

€ 2.00

42

9641040500
ref: 42
96410-40630

BRACKET,TOOL FITTING,UPPER

€ 4.00

43

5862140500
ref: 43

GUIDE,CABLE

€ 8.00

44

5862140301
ref: 44

CLIP,CABLE

€ 14.50

45

0110708458
ref: 45
01500-08453

BOLT 8X45

€ 2.50

46

0832121088
ref: 46
08321-01087

LOCK WASHER

€ 2.00

47

5145531010
ref: 47

CLIP

€ 5.00

48

0211206108
ref: 48
02112-06107

SCREW

€ 1.50

49

0832121068
ref: 49
08321-01067

LOCK WASHER

€ 2.50

50

9642141401
ref: 50

BRACKET,TOOL FITTING,LOWER

€ 10.50
