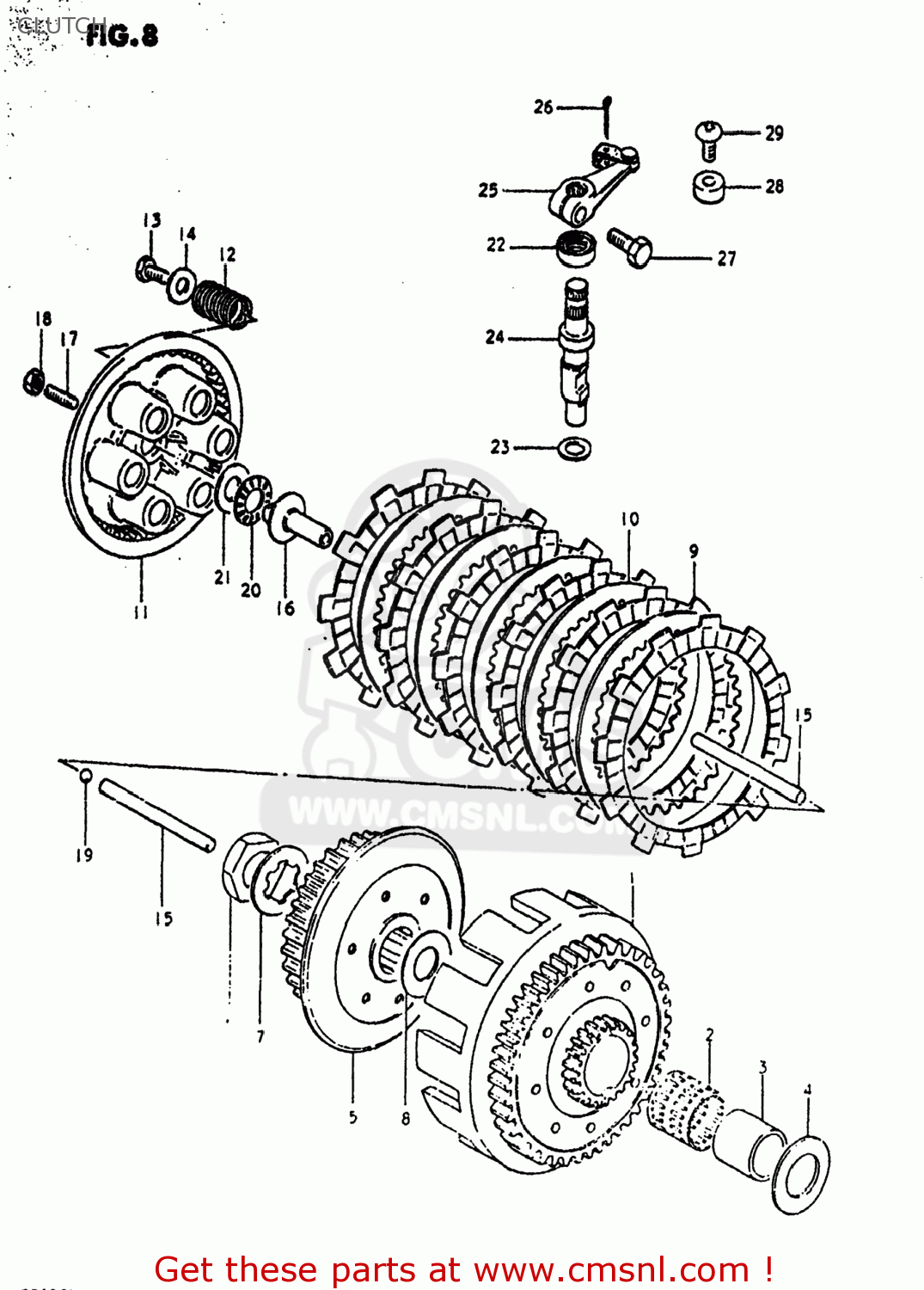

CLUTCH

ref

part #

description

quantity

1

2120040901
ref: 1

GEAR ASSEMBLY,PRIMARY DRIVE

€ 0.00

2

0926325004
ref: 2

ROLLER BEARING (25X30X2

€ 15.00

3

0918020025
ref: 3
09180-20076

SPACER

€ 7.50

4

0916020028
ref: 4

WASHER(20X38X2)

€ 6.50

5

2141140901
ref: 5

HUB,CLUTCH SLEEVE

€ 262.00

6

0914020002
ref: 6
09140-20001

NUT (20MM)

€ 3.50

7

0916720006
ref: 7
09167-20009

WASHER,LOCK

€ 3.00

8

0916020028
ref: 8

WASHER(20X38X2)

€ 6.50

9

2144140402
ref: 9
21441-37400

PLATE,CLUTCH DRIVE (MCA)

€ 20.50

10

2145145000
ref: 10
21451-28C31

PLATE,CLUTCH DRIVEN (NAS)

€ 10.50

11

2146216500
ref: 11
21462-14301

DISC,CLUTCH PRESSURE

€ 51.00

12

0944019003
ref: 12
09440-19027

SPRING

€ 5.50

13

0110706168
ref: 13
01500-06167

BOLT, UPPER

€ 3.00

14

0916006020
ref: 14
09160-06066

WASHER

€ 2.00

15

2311128000
ref: 15
23111-34C00

ROD,CLUTCH PUSH

€ 15.50

16

2312140300
ref: 16
23121-38201

PIECE,CLUTCH PUSH

€ 17.00

17

0913406001
ref: 17
09134-06010

SCREW

€ 3.00

18

0831022068
ref: 18
08310-00067

NUT 6MM

€ 2.50

19

0611107004
ref: 19

BALL

€ 1.50

20

0926315003
ref: 20

BEARING(15X28X2)

€ 7.00

21

0916015015
ref: 21
09160-15045

WASHER

€ 4.00

22

0928512002
ref: 22
09285-12006

OIL SEAL

€ 7.00

23

0916014003
ref: 23
09160-14054

WASHER (14.2X22X1)

€ 1.00

24

2312240900
ref: 24
23122-40902

SHAFT,CLUTCH RELEASE C

€ 39.00

25

2327040300
ref: 25

ARM,CLUTCH RELEASE

€ 37.50

26

0411120158
ref: 26
04111-2015A

PIN

€ 1.50

27

0110706208
ref: 27
01500-06207

BOLT

€ 2.00

28

2328140300
ref: 28

GUIDE,CLUTCH CABLE

€ 4.50

29

0215206168
ref: 29
02112-16167

SCREW

€ 2.00

all assemblies
