FRAME - SEAT
PE400 1981 (X) USA (E03)

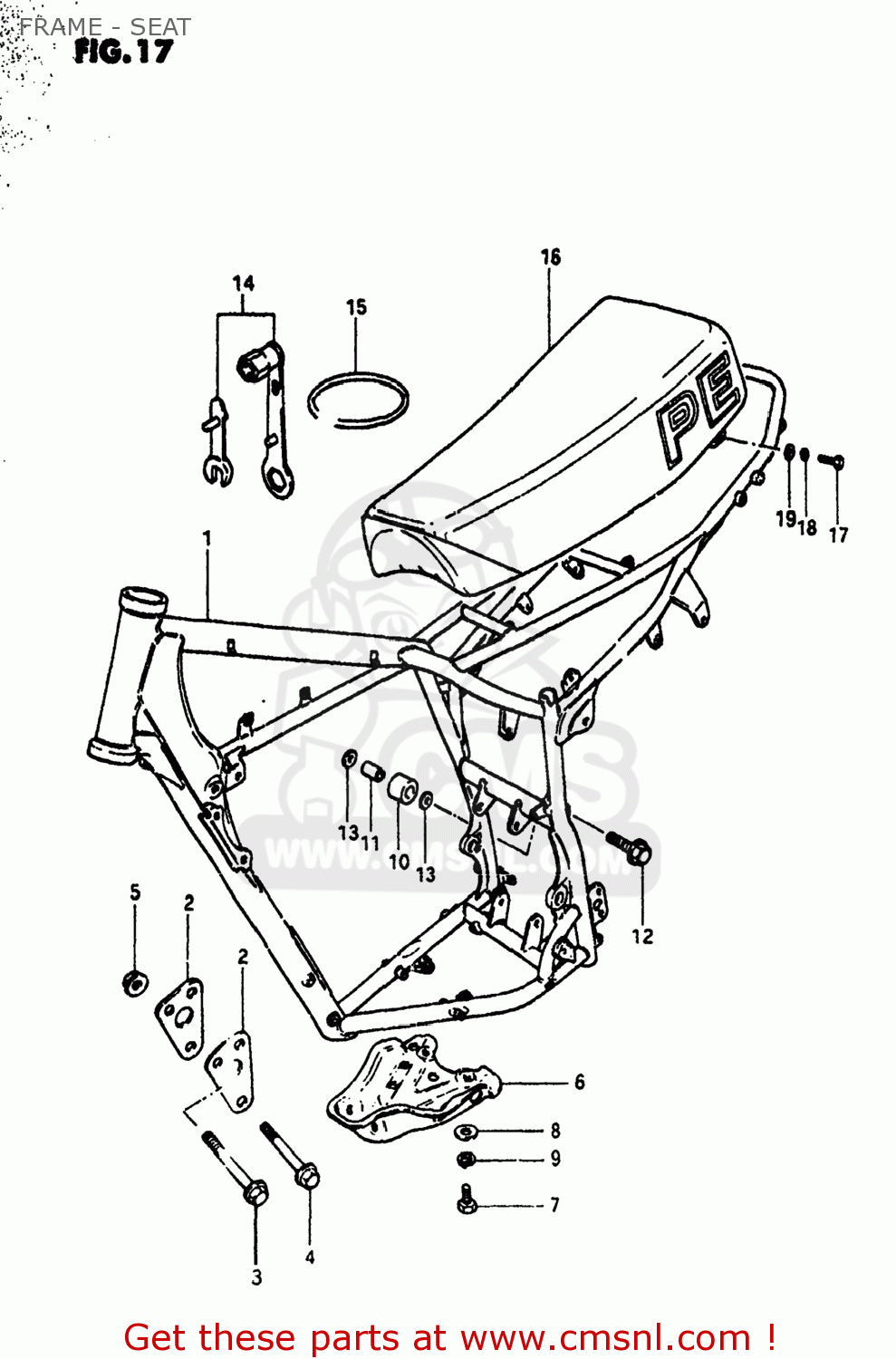

Frame - seat diagram PE400 1981 (X) USA (E03)
FRAME - SEAT PE400 1981 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
4110040600019
ref: 1-1
41100-40611-019
FRAME
€ 363.00
1-2
4110040601019
ref: 1-2
41100-40611-019
FRAME
€ 363.00
2
4199140300
ref: 2
PLATE,ENGINE MOUNTING
€ 11.50
3
0910308037
ref: 3
BOLT(8X67)
€ 6.50
4
0910308017
ref: 4
09103-08099
BOLT
€ 6.00
5
0831931088
ref: 5
08319-3108A
NUT
€ 2.50
6
4251140600
ref: 6
PROTECTOR,ENGINE
€ 0.00
7
0110708168
ref: 7
01500-0816B
BOLT
€ 2.00
8
0916008010
ref: 8
09160-08054
WASHER (8.2X20X1.6)
€ 1.50
9
0832121088
ref: 9
08321-01087
LOCK WASHER
€ 2.00
10-1
4391140410
ref: 10-1
43911-14200
ROLLER,CHAIN CONTROL
€ 18.50
10-2
4391114200
ref: 10-2
ROLLER,CHAIN LENGTH CONTROL
€ 18.50
11
4391340400
ref: 11
SPACER,CHAIN LENGTH ROLLER
€ 8.00
12
0910308043
ref: 12
BOLT(8X45)
€ 4.50
13
0916008035
ref: 13
09160-08130
WASHER
€ 2.00
14
9651040500
ref: 14
SPARK PLUG WRENCH
€ 40.50
15
9643140500
ref: 15
O RING TOOL FITTING
€ 3.50
16
4510040600865
ref: 16
45100-40620-48F
SEAT ASSEMBLY
€ 215.00
17
0110708258
ref: 17
01500-08257
BOLT
€ 2.50
18
0832121088
ref: 18
08321-01087
LOCK WASHER
€ 2.00
19
0916008010
ref: 19
09160-08054
WASHER (8.2X20X1.6)
€ 1.50
