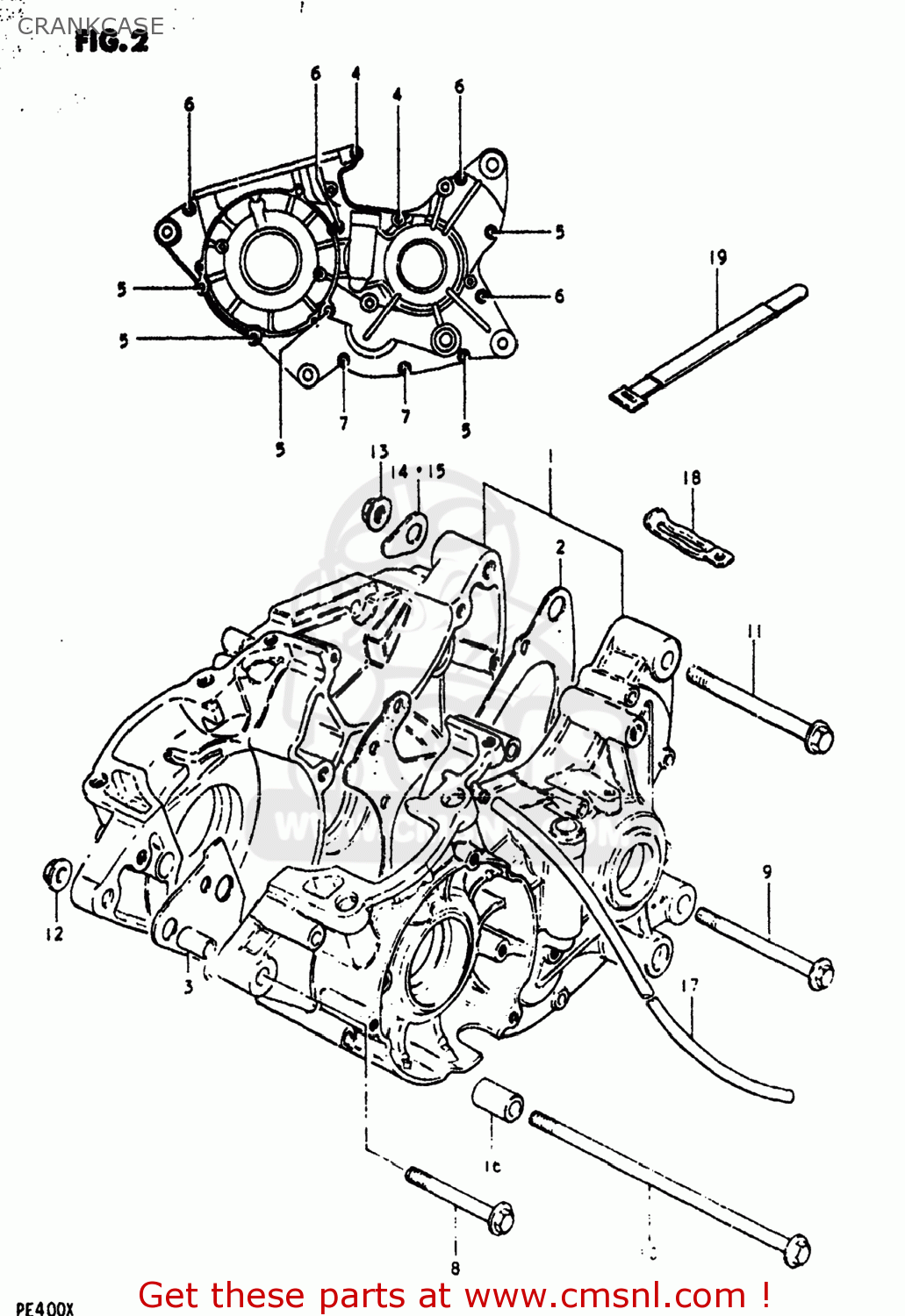

CRANKCASE

ref

part #

description

quantity

1

1130040850
ref: 1

CRANKCASE SET

€ 0.00

2

1148140900
ref: 2

GASKET,CRANKCASE (MCA)

€ 10.50

3

0920613001
ref: 3
04211-13189

PIN

€ 2.50

4

0211206758
ref: 4
02112-06757

CROSS SCREW (6 X 75)

€ 3.00

5

0211206608
ref: 5
02112-06607

SCREW 6X60

€ 2.50

6

0211206557
ref: 6

SCREW

€ 2.50

7

0211206358
ref: 7
02112-06357

SCREW (6X35)

€ 2.50

8

0910308037
ref: 8

BOLT(8X67)

€ 6.50

9-1

0910308009
ref: 9-1
09103-08070

BOLT

€ 5.00

9-2

0910308051
ref: 9-2
09103-08139

BOLT

€ 5.50

10

0910308045
ref: 10
09103-08087

BOLT

€ 12.50

11

0910310016
ref: 11
09103-10110

BOLT

€ 6.50

12

0831931088
ref: 12
08319-3108A

NUT

€ 2.50

13

0831931108
ref: 13

NUT

€ 3.00

14

0916910011
ref: 14

WASHER

€ 1.00

15

0916910012
ref: 15

WASHER

€ 1.00

16

0918008080
ref: 16

SPACER(8.6X16X26)

€ 5.50

17

0934305151
ref: 17
09352-50823-00B

HOSE

€ 13.00

18

0940406412
ref: 18
09404-06432

CLAMP

€ 2.50

19

0940711302
ref: 19
09407-18301

CLAMP

€ 6.00
