REAR WHEEL
PE400 1981 (X) USA (E03)

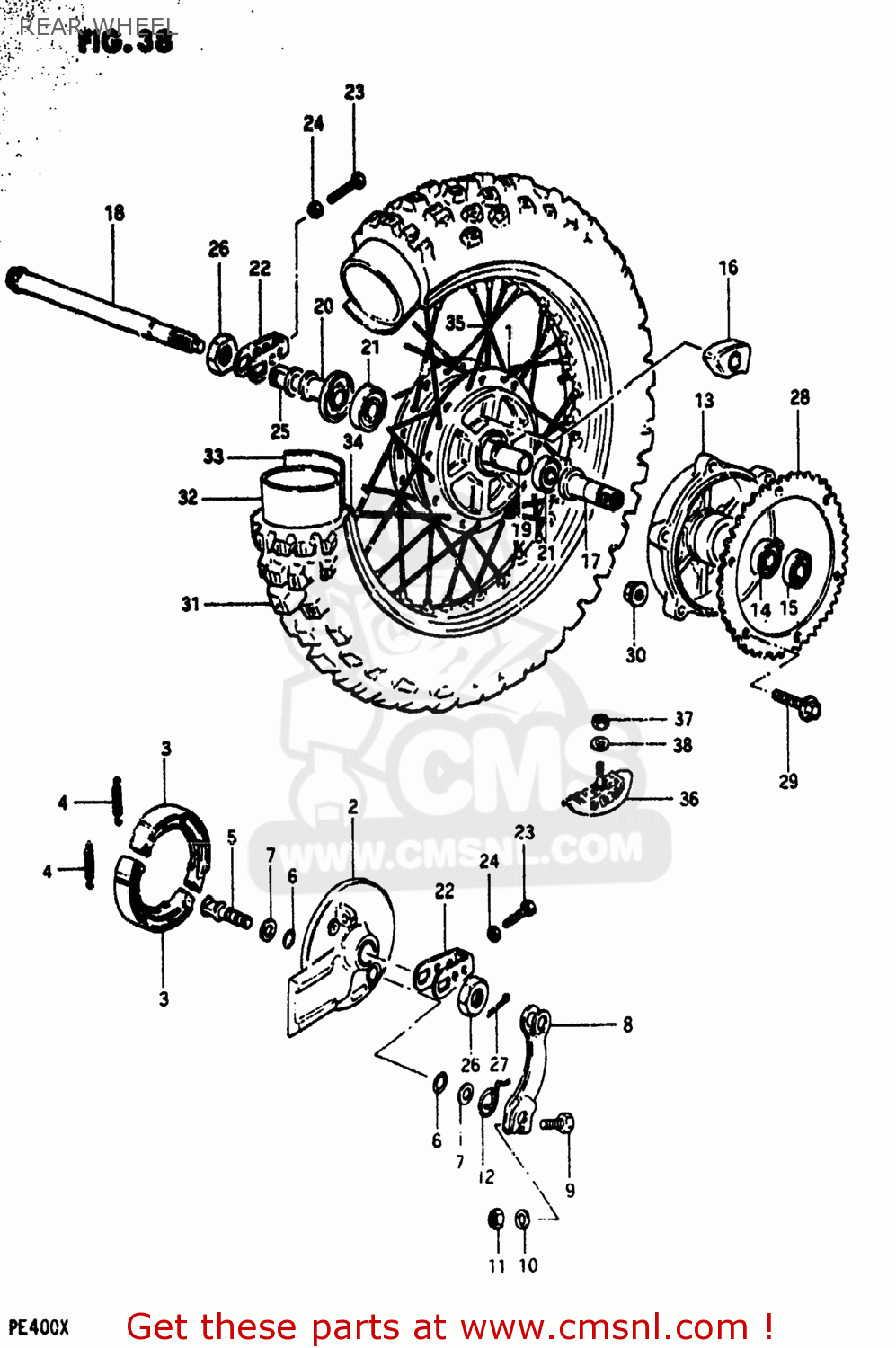

Rear wheel diagram PE400 1981 (X) USA (E03)
REAR WHEEL PE400 1981 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6411040600
ref: 1
HUB,REAR WHEEL
€ 113.00
2
6421040600
ref: 2
PANEL,REAR HUB
€ 136.50
3
5441037200
ref: 3
64400-02830
SHOE,BRAKE
€ 14.00
4
5542041100
ref: 4
SPRING
€ 5.50
5
5444040302
ref: 5
CAM,FRONT BRAKE
€ 24.00
6
0928015001
ref: 6
09280-15003
O-RING,BOSS
€ 2.00
7
0916015001
ref: 7
09160-15048
WASHER (15X24X1.6)
€ 2.50
8-1
6445140600
ref: 8-1
64451-40601
LEVER,REAR BRAKE CAM
€ 17.50
8-2
6445140601
ref: 8-2
LEVER,REAR BRAKE CAM
€ 17.50
9
0910006050
ref: 9
09100-06150
BOLT
€ 1.50
10
0832221068
ref: 10
08322-01067
WASHER
€ 2.00
11
0831011068
ref: 11
08310-00067
NUT
€ 2.50
12
0944833005
ref: 12
SPRING
€ 4.00
13
6430940601
ref: 13
64309-40602
DRUM ASSEMBLY,REAR BRAKE
€ 142.50
14
0814360057
ref: 14
BEARING
€ 16.00
15
0814362057
ref: 15
BEARING
€ 24.50
16
6465040600
ref: 16
ABSORBER,RR HUB SHOCK
€ 16.00
17
6476140600
ref: 17
SHAFT,REAR BRAKE DRUM
€ 49.50
18
6471140600
ref: 18
AXLE,REAR
€ 59.50
19
6473040600
ref: 19
SPACER,REAR HUB BEARING
€ 12.00
20
6474040600
ref: 20
SPACER,REAR AXLE
€ 16.50
21
0812362037
ref: 21
08133-62037
BEARING
€ 24.50
22
6141040600
ref: 22
ADJUSTER,CHAIN
€ 18.00
23
0910408006
ref: 23
09104-08034
BOLT
€ 3.00
24
0831012088
ref: 24
08310-00087
NUT
€ 2.00
25
6478140600
ref: 25
SPACER,CHAIN ADJUSTER
€ 18.50
26
0914024007
ref: 26
NUT
€ 4.50
27
0411130208
ref: 27
04111-3020A
PIN 30X20
€ 1.50
28-1
6451140630
ref: 28-1
SPROCKET,REAR (NT:46)(AL)
€ 107.00
28-2
6451140640
ref: 28-2
SPROCKET,REAR (NT:48)(AL)
€ 50.50
29
0910308048
ref: 29
BOLT(8X30)
€ 3.50
30
0831931088
ref: 30
08319-3108A
NUT
€ 2.50
31
6510040630
ref: 31
TIRE
€ 0.00
32
6520040430
ref: 32
TUBE,INNER
€ 0.00
33
6526115030
ref: 33
55261-11010
PROTECTOR,WHEEL,INNER
€ 3.50
34-1
6531140600
ref: 34-1
65311-40300
RIM,REAR WHEEL
€ 86.50
34-2
6531140610
ref: 34-2
RIM,REAR WHEEL
€ 0.00
35-1
6532040500
ref: 35-1
SPOKE SET,REAR WHEEL
€ 0.00
35-2
6532040510
ref: 35-2
SPOKE SET,REAR
€ 61.50
36
6527032101
ref: 36
65270-28E00
STOPPER,BEAD
€ 38.00
37
0831012088
ref: 37
08310-00087
NUT
€ 2.00
38
0832211088
ref: 38
08322-01087
WASHER
€ 2.00
