CYLINDER
PV50 1981 (X) (E01)

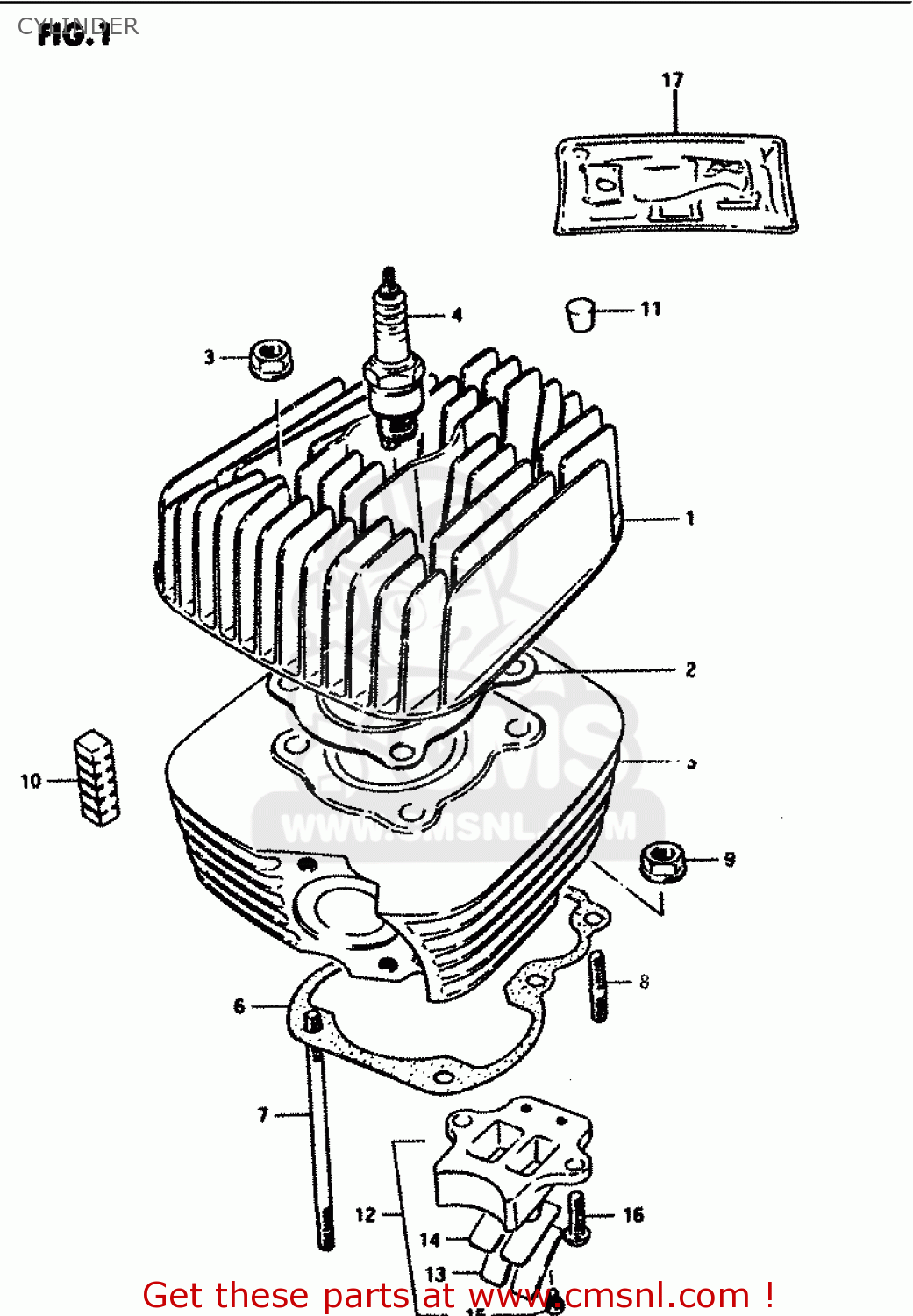

Cylinder diagram PV50 1981 (X) (E01)
CYLINDER PV50 1981 (X) (E01)
×
prices are in EUR
ref
part #
description
quantity
1-1
1111146710
ref: 1-1
MODEL X/D/H/L/M E15,
HEAD,CYLINDER
€ 639.50
1-2
1111146510
ref: 1-2
MODEL R E15,P15
HEAD,CYLINDER
€ 114.00
1-3
1111146510
ref: 1-3
E16
HEAD,CYLINDER
€ 114.00
1-4
1111146500
ref: 1-4
E43
HEAD,CYLINDER
€ 114.00
2-1
1114146181
ref: 2-1
MODEL X/D/H/L/M E15,
GASKET,CYLINDER HEAD (NAS)
€ 8.50
2-2
1114146171
ref: 2-2
MODEL R E15,P15
GASKET,CYLINDER HEAD
€ 7.50
2-3
1114146181
ref: 2-3
E16
GASKET,CYLINDER HEAD (NAS)
€ 8.50
2-4
1114146171
ref: 2-4
E43
GASKET,CYLINDER HEAD
€ 7.50
3-1
0915906017
ref: 3-1
MODEL X/D/H/L/M
NUT
€ 2.50
3-2
0831610063
ref: 3-2
MODEL R
NUT
€ 2.50
4-1
0948200154
ref: 4-1
MODEL X/D/H/L/M E15,
SPARK PLUG (ND,W20EP)
€ 3.00
4-2
0948200177
ref: 4-2
MODEL X/D/H/L/M E15,
SPARK PLUG (NGK,BP6ES)
€ 4.00
4-3
0948200302111
ref: 4-3
MODEL R E15,P15
PLUG,SPARK(W20FPR-U)
€ 3.50
4-4
0948200141
ref: 4-4
MODEL R E15,P15
PLUG,SPARK(BPR6HS)
€ 3.50
4-5
0948200302111
ref: 4-5
E16
PLUG,SPARK(W20FPR-U)
€ 3.50
4-6
0948200141
ref: 4-6
E16
PLUG,SPARK(BPR6HS)
€ 3.50
4-7
0948200085
ref: 4-7
E43
SPARK PLUG
€ 3.50
4-8
0948200084
ref: 4-8
E43
PLUG,SPARK(BP6HS)
€ 4.00
5-1
1121046730
ref: 5-1
MODEL X/D/H/L/M E15,
CYLINDER
€ 436.50
5-2
1121017200
ref: 5-2
MODEL R E15,P15
CYLINDER
€ 0.00
5-3
1121046510
ref: 5-3
E16
CYLINDER
€ 0.00
5-4
1121017200
ref: 5-4
E43
CYLINDER
€ 0.00
6-1
1124146130
ref: 6-1
MODEL R
GASKET,CYLINDER (NAS)
€ 6.00
6-2
1124146120
ref: 6-2
E16
GASKET,CYLINDER (NAS)
€ 5.00
7
0910806012
ref: 7
BOLT,STUD
€ 4.00
8
0142106168
ref: 8
STUD 6X16
€ 2.00
9-1
0915906017
ref: 9-1
MODEL X/D/H/L/M
NUT
€ 2.50
9-2
0831610063
ref: 9-2
MODEL R
NUT
€ 2.50
10
1125146150
ref: 10
PAD,CYLINDER
€ 7.00
11
1115118600
ref: 11
E43,MODEL R E15,P15
PAD,CYLINDER HEAD
€ 2.50
12
1315026411
ref: 12
E43,MODEL R E15,P15
VALVE ASSY,REED
€ 51.00
13
1315226410
ref: 13
E43,MODEL R E15,P15
STOPPER,REED VALVE
€ 4.50
14
1315326410
ref: 14
E43,MODEL R E15,P15
VALVE,REED
€ 6.50
15
0211203083
ref: 15
E43,MODEL R E15,P15
SCREW
€ 1.50
16
0211206167
ref: 16
E43,MODEL R E15,P15
SCREW
€ 2.50
17-1
1140146854
ref: 17-1
MODEL X/D/H/L/M E15,
GASKET SET (NAS)
€ 37.00
17-2
1140046896
ref: 17-2
MODEL R E15,P15
GASKET SET
€ 31.00
17-3
1140146813
ref: 17-3
E16
GASKET SET
€ 157.50
17-4
1140046896
ref: 17-4
E43
GASKET SET
€ 31.00
