HANDLE SWITCH (E16,E43)
PV50 1981 (X) (E01)

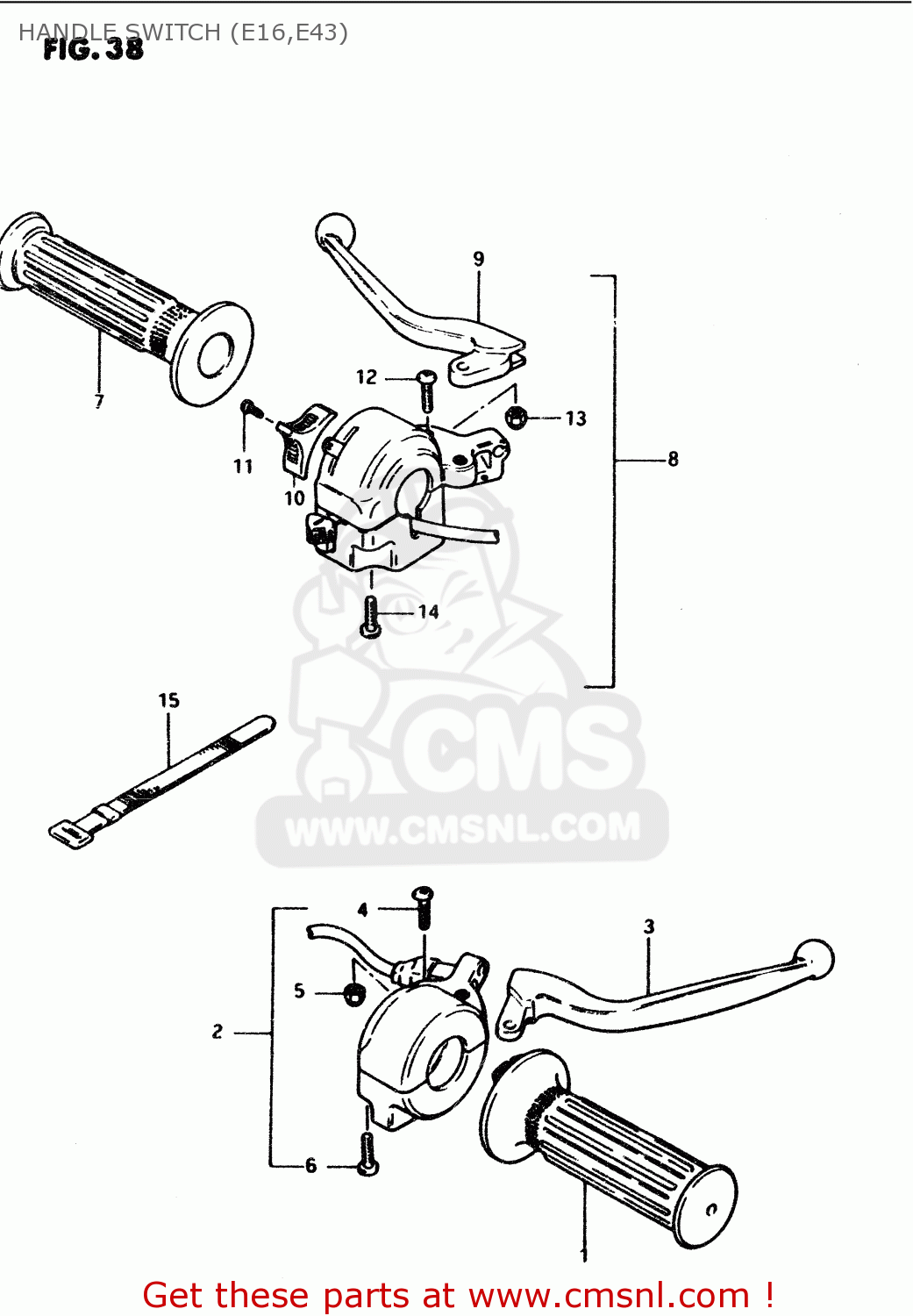

Handle switch (e16,e43) diagram PV50 1981 (X) (E01)
HANDLE SWITCH (E16,E43) PV50 1981 (X) (E01)
×
prices are in EUR
ref
part #
description
quantity
1
5711027501
ref: 1
GRIP,THROTTLE
€ 17.00
2
5730046120
ref: 2
BRAKE LEVER & SWITCH ASSY
€ 0.00
3
5742146100
ref: 3
LEVER
€ 27.50
4
5743101012
ref: 4
BOLT,LEVER PIVOT
€ 5.00
5
0831921057
ref: 5
NUT
€ 1.50
6
0912505105
ref: 6
SCREW
€ 4.50
7
5721146111
ref: 7
GRIP,L
€ 7.50
8
5750046151
ref: 8
LEVER ASSY,CLUTCH
€ 22.50
9
5762146100
ref: 9
LEVER
€ 19.50
10
5732027500
ref: 10
KNOB
€ 8.00
11
0212203067
ref: 11
SCREW
€ 1.00
12
5743101012
ref: 12
BOLT,LEVER PIVOT
€ 5.00
13
0831921057
ref: 13
NUT
€ 1.50
14
0212205203
ref: 14
SCREW
€ 2.00
15
0940712402
ref: 15
CLAMP(L:120)
€ 3.00
