REAR COMBINATION LAMP (E16)
PV50 1981 (X) (E01)

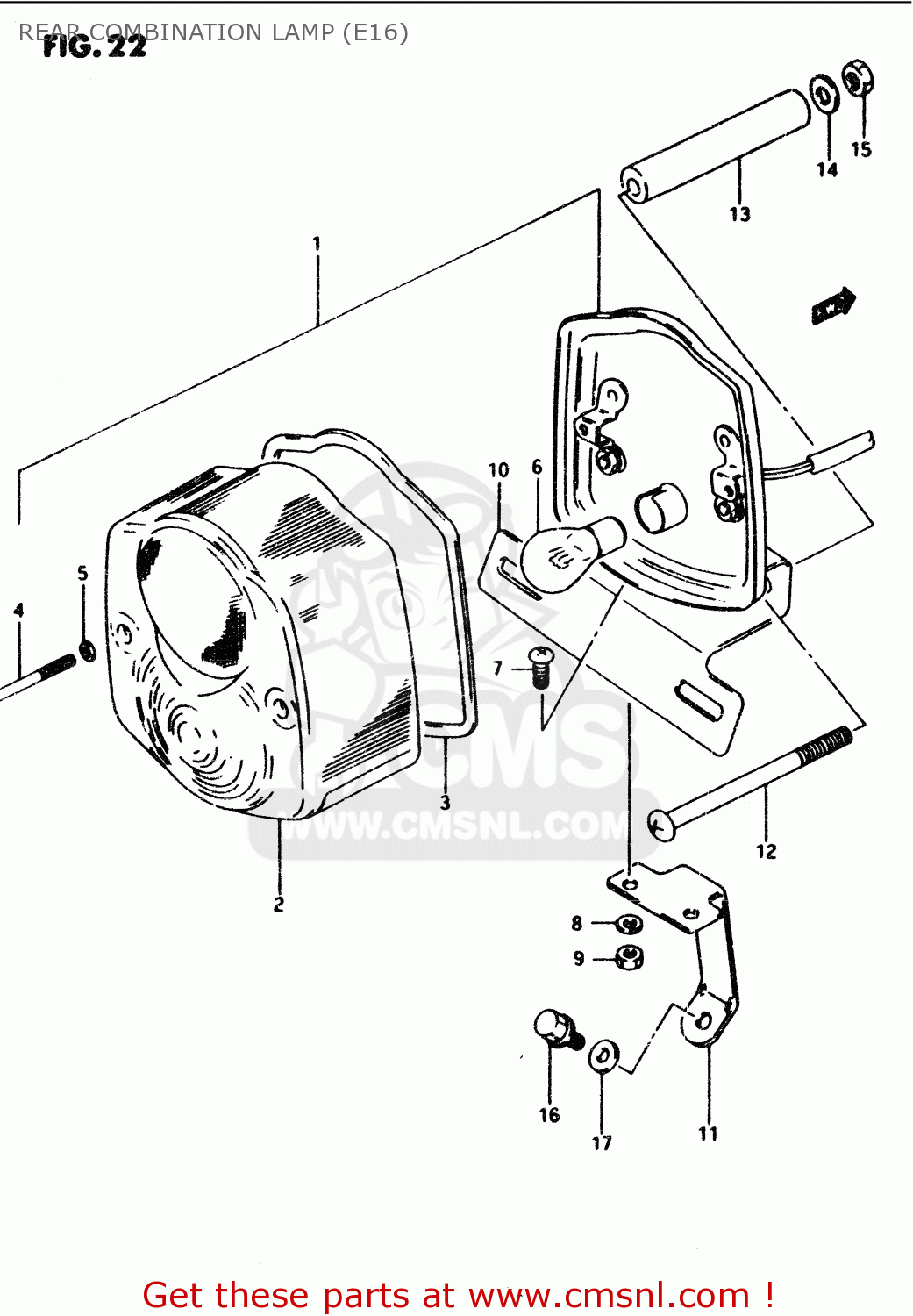

Rear combination lamp (e16) diagram PV50 1981 (X) (E01)
REAR COMBINATION LAMP (E16) PV50 1981 (X) (E01)
×
prices are in EUR
ref
part #
description
quantity
1
3572002480
ref: 1
LAMP UNIT, TAIL
€ 54.00
2
3571239270
ref: 2
LENS
€ 39.00
3
3571346620
ref: 3
GASKET (NAS)
€ 8.00
4
3562335110
ref: 4
SCREW
€ 3.50
5
3562743010
ref: 5
GASKET (NAS)
€ 2.00
6
0947106034
ref: 6
BULB (6V,21/5W)
€ 0.00
7
0211205107
ref: 7
SCREW
€ 2.00
8
0832121057
ref: 8
LOCK WASHER
€ 2.00
9
0831011056
ref: 9
NUT
€ 2.50
10
3592702480
ref: 10
PLATE
€ 0.00
11
3572602480
ref: 11
BRACKET
€ 0.00
12
0912506005
ref: 12
SCREW(6X105)
€ 2.50
13
0918006238
ref: 13
SPACER
€ 0.00
14-1
0832221067
ref: 14-1
MODEL M
WASHER
€ 2.00
14-2
0832201063
ref: 14-2
MODEL R
WASHER
€ 2.00
15-1
0831011067
ref: 15-1
MODEL M
NUT 6MM
€ 2.50
15-2
0831000063
ref: 15-2
MODEL R
NUT 6MM
€ 2.00
16-1
0151706164
ref: 16-1
MODEL M
BOLT
€ 2.50
16-2
0155006163
ref: 16-2
MODEL R
BOLT
€ 2.50
17
0832221066
ref: 17
WASHER, LOWER
€ 2.00
