COWLING BODY (MODEL V)

RF600R 1993 (P) (E02 E04 E15 E17 E18 E21 E22 E24 E25 E34 E53)

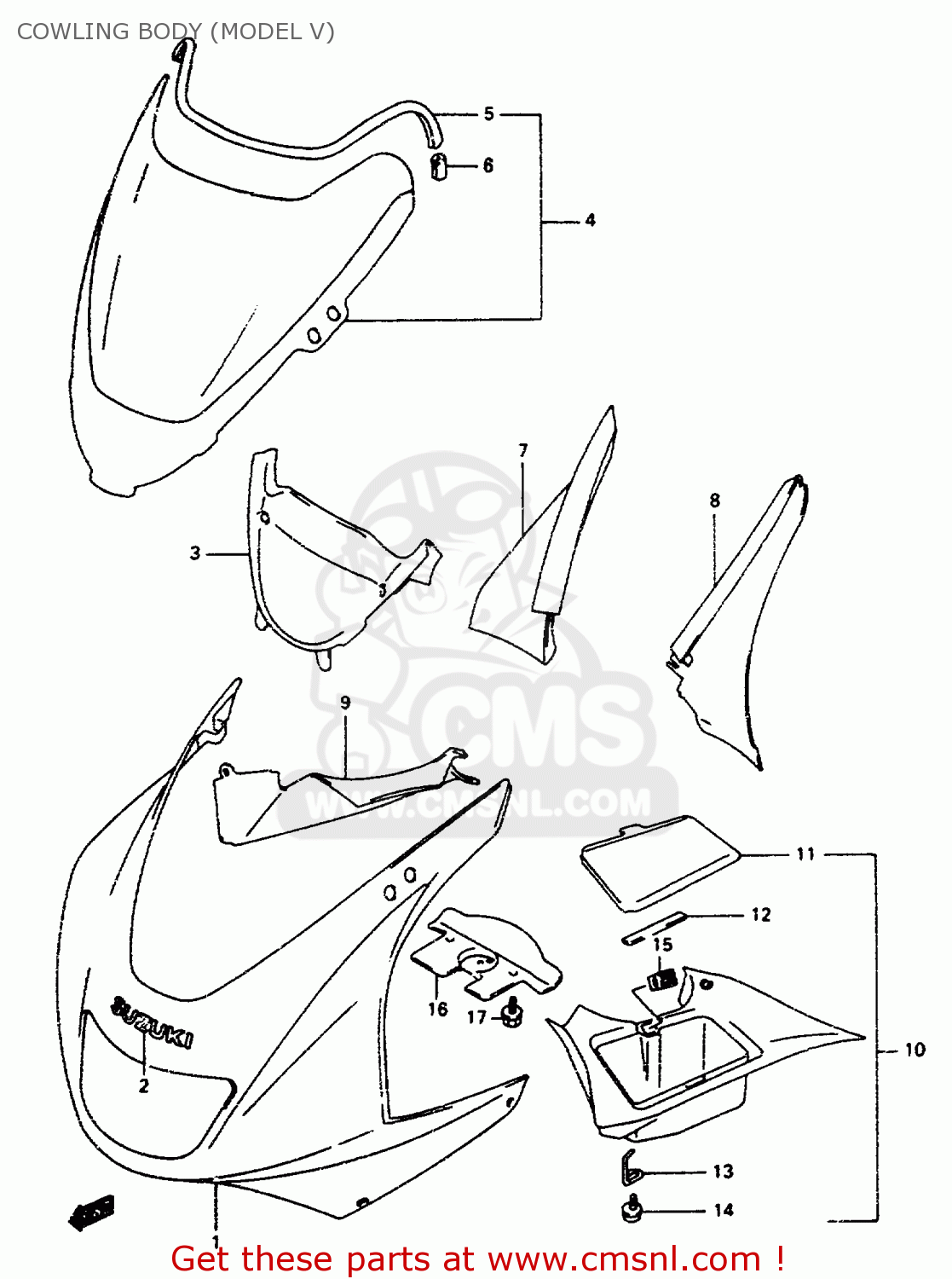

Cowling body (model v) diagram RF600R 1993 (P) (E02 E04 E15 E17 E18 E21 E22 E24 E25 E34 E53)

COWLING BODY (MODEL V) RF600R 1993 (P) (E02 E04 E15 E17 E18 E21 E22 E24 E25 E34 E53)

COWLING BODY (MODEL V) RF600R 1993 (P) (E02 E04 E15 E17 E18 E21 E22 E24 E25 E34 E53)

prices are in EUR

ref

part #

description

quantity

1-1

9440021E00Y0V
ref: 1-1
FOR G4W

COWLING ASSY,BODY(GREEN)

€ 395.50

1-2

9440021E003AX
ref: 1-2
FOR F75

COWLING ASSY,BODY (RED)

€ 410.50

2-1

6818505C1020H
ref: 2-1
FOR Y0V

EMBLEM,SUZUKI(SILVER)

€ 13.50

2-2

6818505C1020G
ref: 2-2
FOR 28V

EMBLEM,COWLING BODY(GRAY)

€ 9.50

3

9464021E00
ref: 3

PANEL,COWLING CTR

€ 77.00

4

9461021E00
ref: 4

WINDSCREEN SET

€ 172.00

5

9463133C01
ref: 5
L:700>600

MOLDING WINDSCREEN

€ 10.00

6

9463721E00
ref: 6

CLIP,WINDSCREEN MOLDING

€ 4.00

7

9442321E00
ref: 7

PANEL,UPR,R

€ 43.00

8

9442421E00
ref: 8

PANEL,UPR,L

€ 36.50

9

9463021E00
ref: 9

PANEL,SIDE,R

€ 58.50

10

9465021E00
ref: 10

PANEL ASSY,SIDE,L

€ 141.50

11

9442721E00
ref: 11

LID,PANEL BOX

€ 40.50

12

9445621E00
ref: 12

CUSHION,LID

€ 2.50

13

9455321E00
ref: 13

HINGE,PANEL LID

€ 5.50

14

0354115103
ref: 14

SCREW

€ 2.00

15

7317050A00
ref: 15

LOCK,I/P CTR BOX

€ 9.00

16

9445721E10
ref: 16

COVER,COWLING FR LWR

€ 16.00

17

0911606109
ref: 17

BOLT(6X12)

€ 1.50

8

9442421E00
ref: 8

PANEL,UPR,L

€ 36.50

9

9463021E00
ref: 9

PANEL,SIDE,R

€ 58.50

10

9465021E00
ref: 10

PANEL ASSY,SIDE,L

€ 141.50

11

9442721E00
ref: 11

LID,PANEL BOX

€ 40.50

12

9445621E00
ref: 12

CUSHION,LID

€ 2.50

13

9455321E00
ref: 13

HINGE,PANEL LID

€ 5.50

14

0354115103
ref: 14

SCREW

€ 2.00

15

7317050A00
ref: 15

LOCK,I/P CTR BOX

€ 9.00

16

9445721E10
ref: 16

COVER,COWLING FR LWR

€ 16.00

17

0911606109
ref: 17

BOLT(6X12)

€ 1.50
