HANDLE SWITCH

RF600R 1993 (P) (E02 E04 E15 E17 E18 E21 E22 E24 E25 E34 E53)

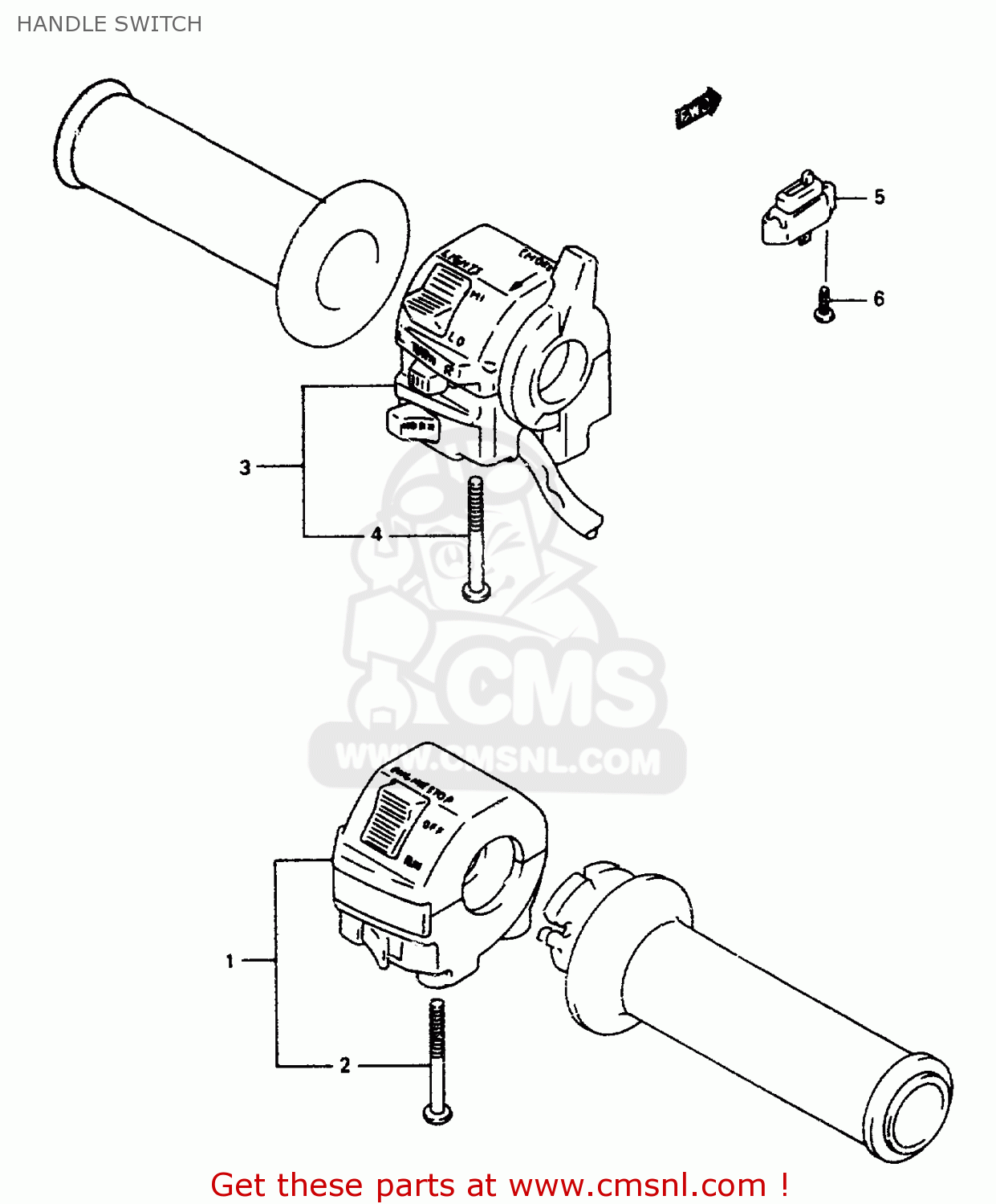

Handle switch diagram RF600R 1993 (P) (E02 E04 E15 E17 E18 E21 E22 E24 E25 E34 E53)

HANDLE SWITCH RF600R 1993 (P) (E02 E04 E15 E17 E18 E21 E22 E24 E25 E34 E53)

HANDLE SWITCH RF600R 1993 (P) (E02 E04 E15 E17 E18 E21 E22 E24 E25 E34 E53)

prices are in EUR

ref

part #

description

quantity

1-1

3720017E14
ref: 1-1
<37200-17E12

SWITCH ASSY,RH

€ 121.00

1-2

3720017E31
ref: 1-2
MODEL P/R/S E24

SWITCH ASSEMBLY,HANDLE,RIGHT

€ 108.00

1-3

3720017E40
ref: 1-3
MODEL T E24

SWITCH ASSEMBLY,HANDLE,RIGHT

€ 108.00

1-4

3720017E41
ref: 1-4
MODEL V E24

SWITCH ASSEMBLY,RIGHT

€ 108.00

2

0211205455
ref: 2

SCREW, 5X45

€ 4.00

3

3740017E11
ref: 3

SWITCH,HANDLE,

€ 157.00

4

0211205455
ref: 4

SCREW, 5X45

€ 4.00

5

3756038A00
ref: 5

SWITCH ASSY,CLUTCH

€ 20.00

6

3756426E00
ref: 6

SCREW

€ 3.00
