REAR WHEEL (MODEL S/T/V)

RF600R 1993 (P) (E02 E04 E15 E17 E18 E21 E22 E24 E25 E34 E53)

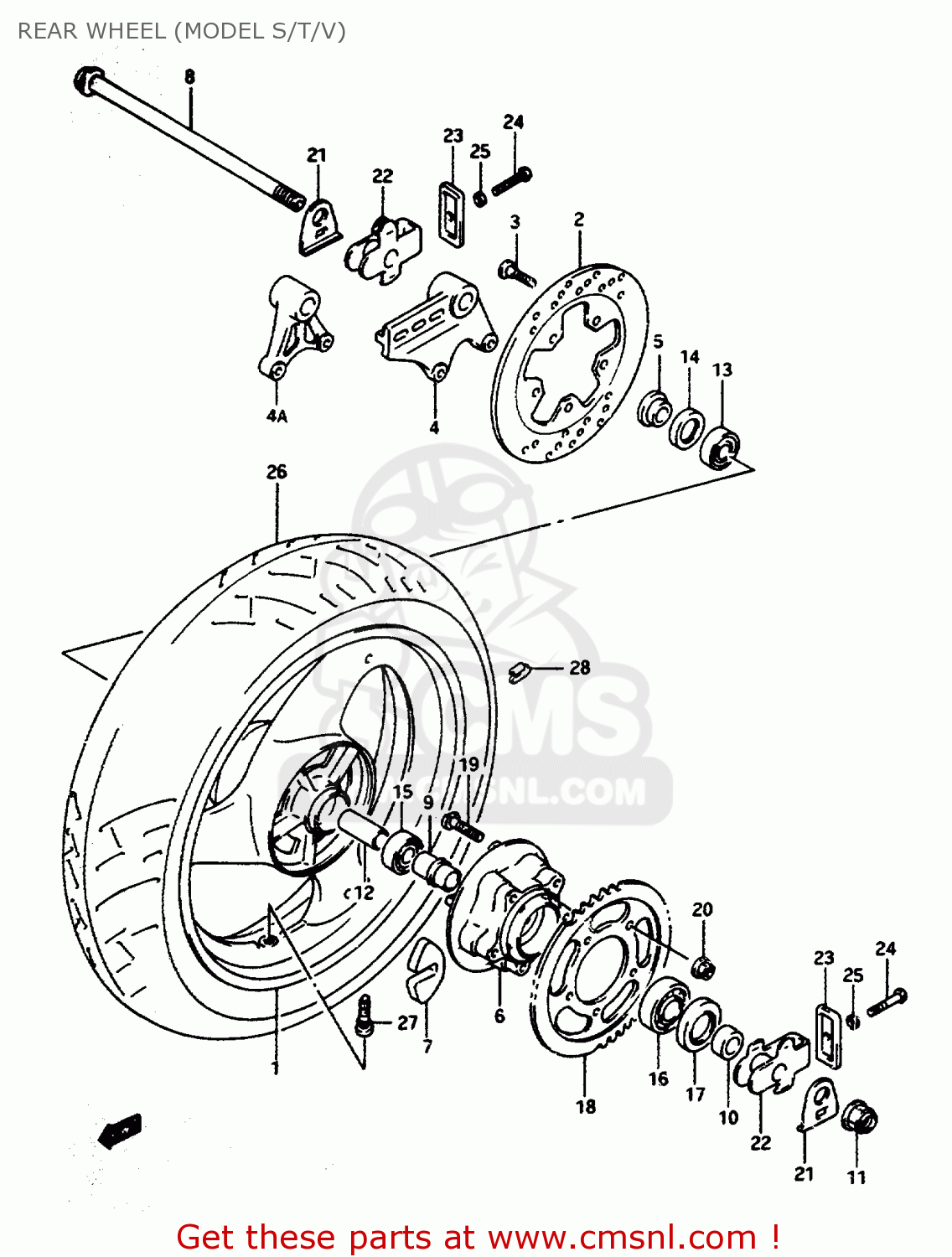

Rear wheel (model s/t/v) diagram RF600R 1993 (P) (E02 E04 E15 E17 E18 E21 E22 E24 E25 E34 E53)

REAR WHEEL (MODEL S/T/V) RF600R 1993 (P) (E02 E04 E15 E17 E18 E21 E22 E24 E25 E34 E53)
REAR WHEEL (MODEL S/T/V) RF600R 1993 (P) (E02 E04 E15 E17 E18 E21 E22 E24 E25 E34 E53)
REAR WHEEL (MODEL S/T/V) RF600R 1993 (P) (E02 E04 E15 E17 E18 E21 E22 E24 E25 E34 E53)
prices are in EUR
ref
part #
description
quantity
1-1
6411121E0035W
ref: 1-1
MODEL S
WHEEL,REAR
6411121E0035W
€ 805.00
1-2
6411121E0135W
ref: 1-2
MODEL T/V
WHEEL,RR(MT4.50X17)
6411121E0135W
€ 805.00
2
6921121E00
ref: 2
DISC,RR BRAKE
6921121E00
€ 249.00
3
0910608125
ref: 3
BOLT 8X33
0910608125
€ 6.00
4
6972117E10
ref: 4
MODEL S
BRACKET,RR CALIPER
6972117E10
€ 153.50
4A
6972146E00
ref: 4A
MODEL T/V
BRACKET,RR CALIPER
6972146E00
€ 108.50
5
6474117E00
ref: 5
SPACER,RR AXLE,R
6474117E00
€ 15.50
6
6461133C00
ref: 6
DRUM,RR SPROCKET
€ 114.00
7
6465132C00
ref: 7
ABSORBER,RR HUB SHOCK
6465132C00
€ 11.50
8
6471121E10
ref: 8
AXLE,RR
6471121E10
€ 119.50
9
6473327A00
ref: 9
RETAINER,RR HUB BEARING
6473327A00
€ 18.50
10
6475126E00
ref: 10
SPACER,RR AXLE,L
6475126E00
€ 20.50
11
0831931188
ref: 11
NUT ,18MM
0831931188
€ 17.50
12
0918020104
ref: 12
SPACER(20.8X27.2X97)
0918020104
€ 22.50
13
0812362047
ref: 13
BEARING
0812362047
€ 17.00
14
0928528001
ref: 14
SEAL,OIL(28X47X7)
0928528001
€ 11.50
15
0926220042
ref: 15
BEARING(20X47X14)
0926220042
€ 21.00
16
0926225073
ref: 16
BEARING(25X62X17)
0926225073
€ 21.50
17
0928535001
ref: 17
SEAL,OIL(35X62X8)
0928535001
€ 9.00
18-1
6451117C62
ref: 18-1
E18
SPROCKET,RR(NT:43)
6451117C62
€ 102.50
18-2
6451117C11
ref: 18-2
E2,E4,E22,E24,E25,E3
SPROCKET,RR(NT:42-530)
€ 47.00
19
0911910043
ref: 19
BOLT(10X47)
0911910043
€ 4.50
20
0831931107
ref: 20
NUT
0831931107
€ 3.00
21
6144526E00
ref: 21
WASHER,CHAIN ADJUSTER
6144526E00
€ 7.50
22
6141021E00
ref: 22
ADJUSTER,CHAIN
6141021E00
€ 27.50
23
6142145D00
ref: 23
PLATE,CHAIN ADJUSTER GUIDE
6142145D00
€ 21.50
24
0910608119
ref: 24
BOLT(8X50)
0910608119
€ 4.50
25
0916408015
ref: 25
WASHER
0916408015
€ 3.00
26-1
6511021E00
ref: 26-1
MODEL S/T/V
TIRE,REAR 160/70 ZR17
€ 219.00
26-2
6511021E30
ref: 26-2
MODEL S
TIRE,REAR 160/60 ZR17
€ 219.00
27
4313024A11
ref: 27
VALVE ASSEMBLY,WHEEL,TR412
€ 7.00
28-1
5541100A00
ref: 28-1
BALANCER,WHEEL (10G)
€ 6.50
28-2
5541200A01
ref: 28-2
BALANCER,WHEEL (20G)
€ 7.00
28-3
5541300A01
ref: 28-3
BALANCER,WHEEL
€ 4.00
