FOOTREST

RF600R 1995 (S) (E02 E04 E18 E22 E24 E25 E34 E37)

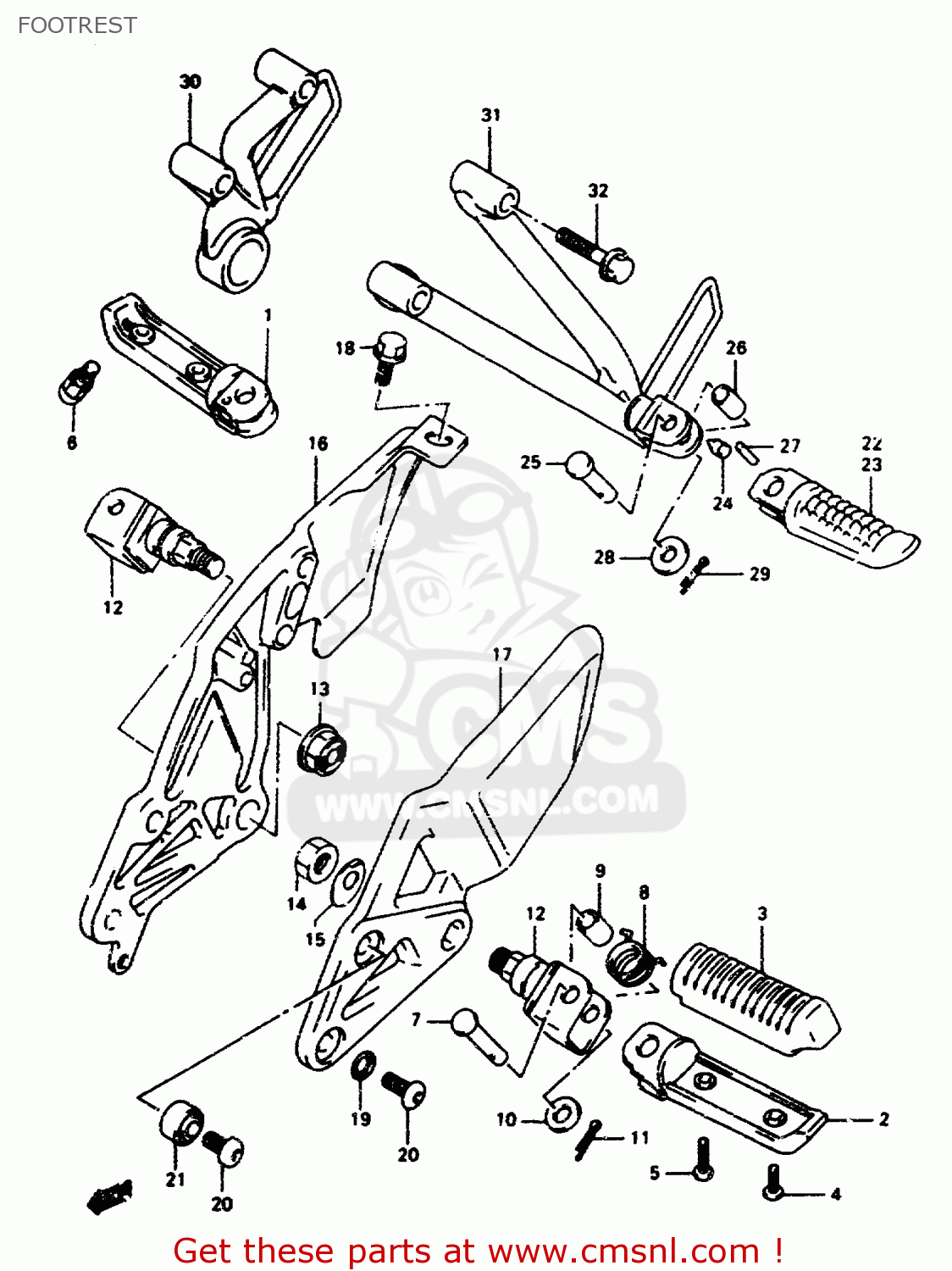

Footrest diagram RF600R 1995 (S) (E02 E04 E18 E22 E24 E25 E34 E37)

FOOTREST RF600R 1995 (S) (E02 E04 E18 E22 E24 E25 E34 E37)
FOOTREST RF600R 1995 (S) (E02 E04 E18 E22 E24 E25 E34 E37)
FOOTREST RF600R 1995 (S) (E02 E04 E18 E22 E24 E25 E34 E37)
prices are in EUR
ref
part #
description
quantity
1-1
4351140C00
ref: 1-1
MODEL P/R
BAR,FOOTREST,R
4351140C00
€ 37.50
1-2
4351131E00
ref: 1-2
MODEL S/T/V
BAR,FR FOOTREST,R
4351131E00
€ 45.00
2
4352140C00
ref: 2
BAR,FOOTREST,L
4352140C00
€ 37.50
3
4355040C11
ref: 3
RUBBER,FOOTREST
4355040C11
€ 16.00
4-1
0211235167
ref: 4-1
MODEL P
SCREW
0211235167
€ 2.50
4-2
0211235163
ref: 4-2
MODEL R/S/T/V
SCREW
€ 2.50
5-1
0211205207
ref: 5-1
MODEL P
SCREW
0211205207
€ 3.00
5-2
0211235203
ref: 5-2
MODEL R/S/T/V
SCREW
0211235203
€ 2.50
6
4357648B01
ref: 6
MODEL S/T/V
SENSOR,FOOTREST
€ 4.00
7
0920008057
ref: 7
PIN
0920008057
€ 3.00
8-1
0944819020
ref: 8-1
MODEL P/R/S
SPRING
0944819020
€ 3.50
8-2
0944818022
ref: 8-2
MODEL T/V
SPRING
0944818022
€ 3.50
9
0918008149
ref: 9
SPACER(8.1X12X22)
0918008149
€ 7.00
10
0916008043
ref: 10
MODEL P/R
WASHER(8.5X18X1)
0916008043
€ 1.50
11
0411125158
ref: 11
PIN 20X15
0411125158
€ 1.50
12
4353011D00
ref: 12
BOSS,FR FOOTREST
4353011D00
€ 66.00
13
0831931128
ref: 13
NUT 12MM
0831931128
€ 4.00
14
0831000123
ref: 14
NUT
€ 2.50
15
4321417C01
ref: 15
WASHER,FR FOOTREST
4321417C01
€ 52.50
16
4351121E00
ref: 16
BRACKET,FOOTREST,R
4351121E00
€ 168.00
17
4352121E00
ref: 17
BRACKET,FOOTREST,L
4352121E00
€ 168.00
18
0155008203
ref: 18
BOLT
0155008203
€ 3.00
19
0916408015
ref: 19
WASHER
0916408015
€ 3.00
20
0910608129
ref: 20
BOLT(8X25)
0910608129
€ 5.00
21
0931908025
ref: 21
BUSH
0931908025
€ 13.50
22
4361132C00
ref: 22
BAR,PILLION FOOTREST R
4361132C00
€ 31.00
23
4362132C00
ref: 23
BAR,PILLION FOOTREST L
4362132C00
€ 31.00
24
4369117C00
ref: 24
CUSHION,FOOTREST HOLDER
4369117C00
€ 6.00
25
0920008067
ref: 25
PIN
0920008067
€ 5.50
26
0918008149
ref: 26
SPACER(8.1X12X22)
0918008149
€ 7.00
27
0926104003
ref: 27
PIN(4X20)
0926104003
€ 2.00
28
0832201087
ref: 28
MODEL P/R/S/T
WASHER
0832201087
€ 2.00
29
0411125158
ref: 29
PIN 20X15
0411125158
€ 1.50
30-1
4381021E10
ref: 30-1
MODEL P/R
BRACKET,PILLION FOOTREST
4381021E10
€ 130.50
30-2
4381021E20
ref: 30-2
MODEL S
BRACKET,PILLION FOOTREST
€ 130.50
30-3
4381021E20019
ref: 30-3
MODEL T
BRACKET COMP,PILLION FOOT
€ 112.00
30-4
4381021E200FP
ref: 30-4
MODEL V
BRACKET,PILLION FOOTREST
€ 130.50
31-1
4382021E10
ref: 31-1
MODEL P/R/S
BRACKET
€ 144.00
31-2
4382021E10019
ref: 31-2
MODEL T
BRACKET,PILLION FOOTREST,L
€ 150.50
31-3
4382021E100FP
ref: 31-3
MODEL V
BRACKET,PILLION FOOTREST
4382021E100FP
€ 144.00
32-1
0151708405
ref: 32-1
MODEL P
BOLT 8X40
€ 3.50
32-2
0155008403
ref: 32-2
MODEL R/S/T/V
BOLT
0155008403
€ 3.50
