STARTER CLUTCH

RF600R 1995 (S) (E02 E04 E18 E22 E24 E25 E34 E37)

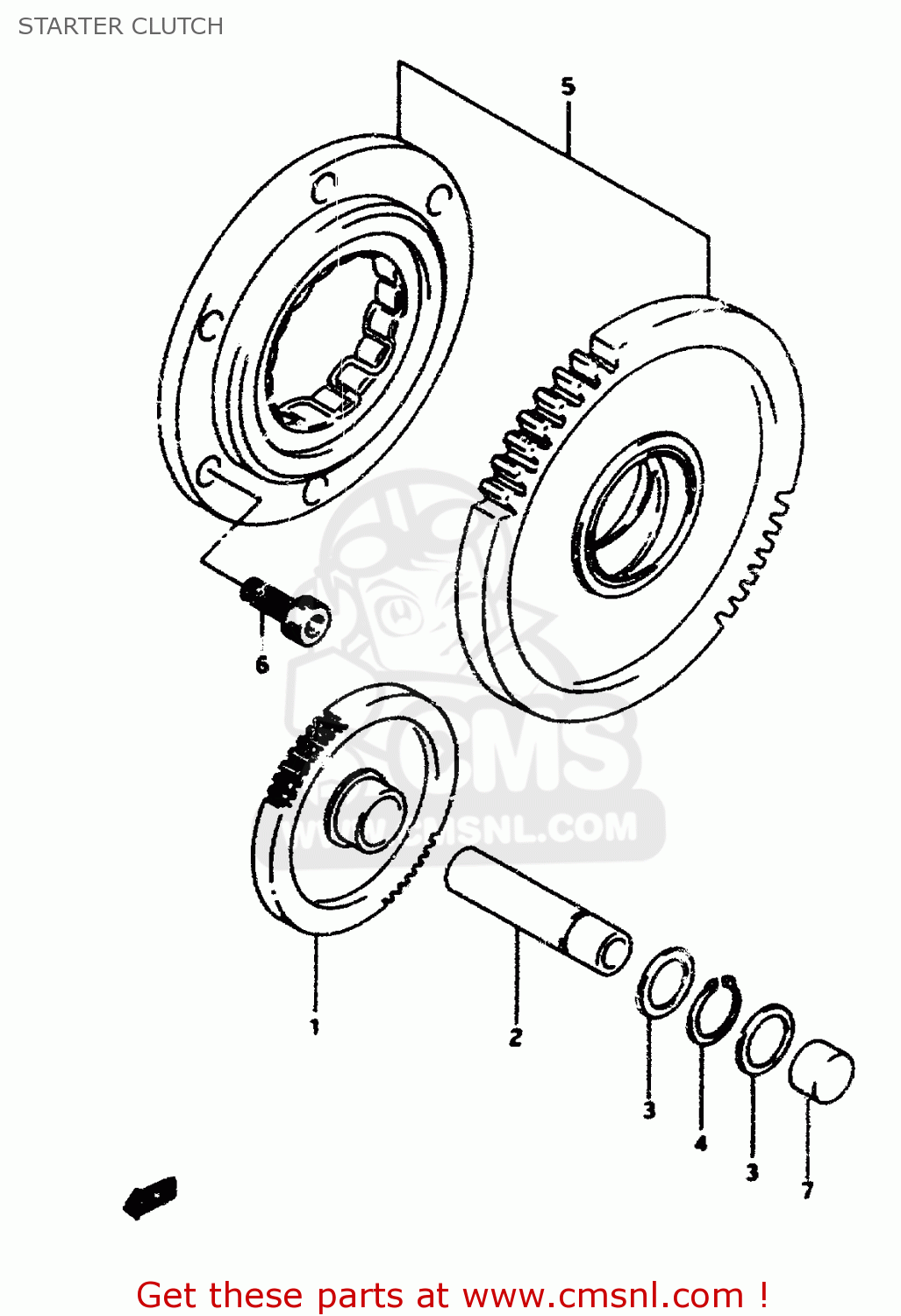

Starter clutch diagram RF600R 1995 (S) (E02 E04 E18 E22 E24 E25 E34 E37)

STARTER CLUTCH RF600R 1995 (S) (E02 E04 E18 E22 E24 E25 E34 E37)

STARTER CLUTCH RF600R 1995 (S) (E02 E04 E18 E22 E24 E25 E34 E37)

prices are in EUR

ref

part #

description

quantity

1

1261121E00
ref: 1

GEAR,STARTER IDLE (NT:1

€ 73.50

2

1261617E00
ref: 2

SHAFT,STARTER IDLE GEAR

€ 10.50

3-1

0822112185
ref: 3-1
MODEL P/R/S/T

WASHER

€ 2.50

3-2

0918112130
ref: 3-2
MODEL V

SHIM(12X18X0.5)

€ 2.50

4

0833131126
ref: 4

CIRCLIP,12 MM

€ 2.00

5

1260021811
ref: 5

CLUTCH SET,STARTER

€ 251.00

6-1

0713006165
ref: 6-1
MODEL P

BOLT

€ 3.00

6-2

0713006163
ref: 6-2
MODEL R

BOLT,OIL FILLE

€ 3.00

6-3

0713006123
ref: 6-3
MODEL S/T/V

BOLT,STRANGER

€ 2.50

7

0924112006
ref: 7

PLUG

€ 5.50
