SEAT (MODEL S/T/V)

RF600R 1995 (S) (E02 E04 E18 E22 E24 E25 E34 E37)

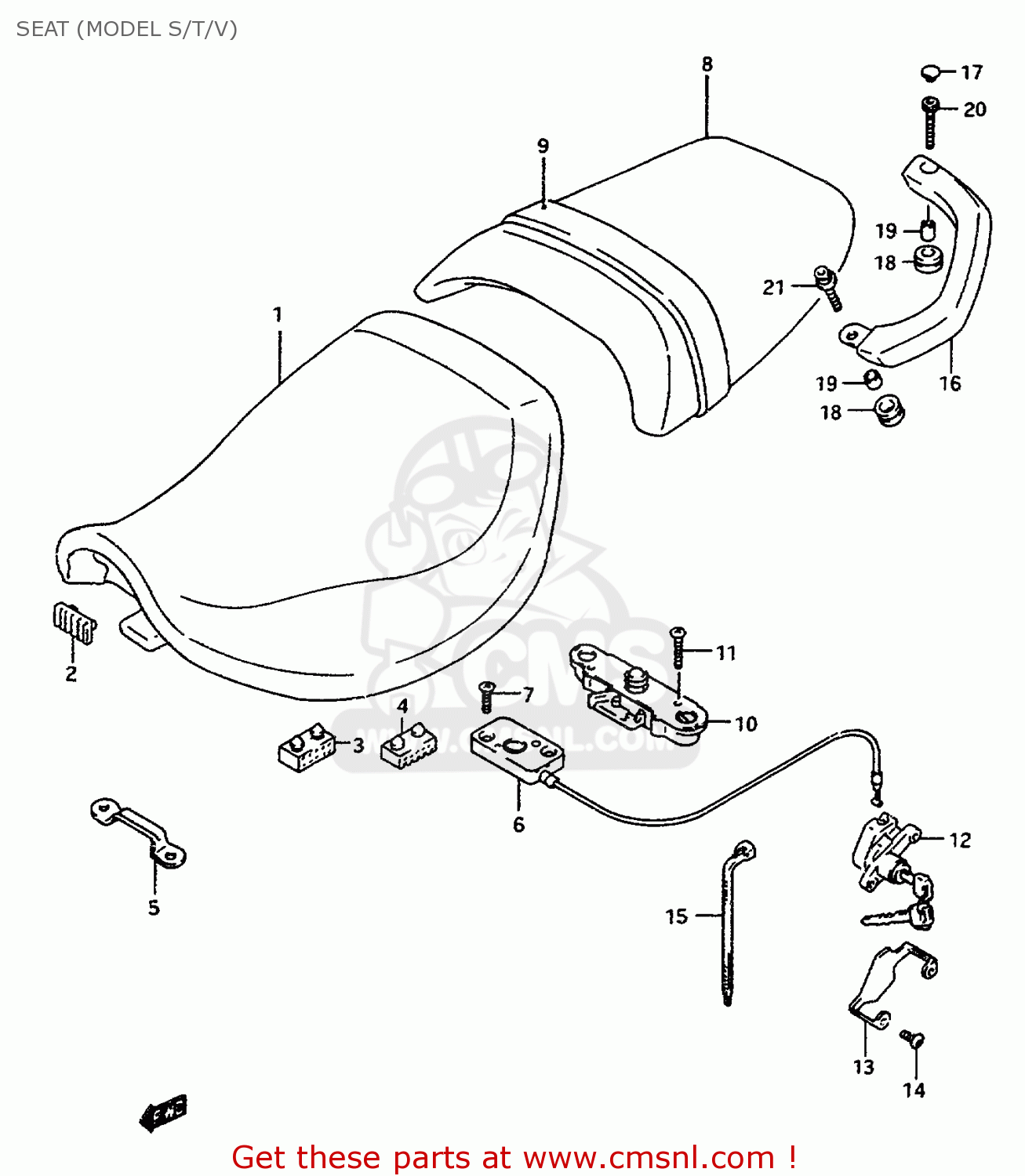

Seat (model s/t/v) diagram RF600R 1995 (S) (E02 E04 E18 E22 E24 E25 E34 E37)

SEAT (MODEL S/T/V) RF600R 1995 (S) (E02 E04 E18 E22 E24 E25 E34 E37)
SEAT (MODEL S/T/V) RF600R 1995 (S) (E02 E04 E18 E22 E24 E25 E34 E37)
SEAT (MODEL S/T/V) RF600R 1995 (S) (E02 E04 E18 E22 E24 E25 E34 E37)
prices are in EUR
ref
part #
description
quantity
1
4510021E006VP
ref: 1
SEAT ASSY
€ 301.50
2
4514912C00
ref: 2
CUSHION,SEAT(40X20X6)
4514912C00
€ 3.00
3
4514921E00
ref: 3
CUSHION,BATTERY
4514921E00
€ 7.00
4
4514931300
ref: 4
CUSHION,SEAT(40X20X15)
4514931300
€ 2.00
5
4511917E00
ref: 5
PLATE,SEAT FR HOOK
4511917E00
€ 9.00
6
4522021E10
ref: 6
BRACKET COMP,SEAT SUPPORT
4522021E10
€ 34.00
7
0212206253
ref: 7
SCREW
0212206253
€ 2.00
8-1
4530021E016VP
ref: 8-1
SEAT ASSY,PILLION
€ 246.00
8-2
4530021E116VP
ref: 8-2
E34,E37
SEAT ASSY,PILLION (BLACK)
€ 259.50
9
4518021E006VP
ref: 9
E34,E37
BAND,SEAT (BLACK)
€ 45.00
10
4522021E00
ref: 10
BRACKET COMP,SEAT SUPPORT
€ 48.50
11
0211206303
ref: 11
SCREW 6X30
0211206303
€ 2.50
12
9570010833
ref: 12
LOCK SET,SEAT & HELMET
9570010833
€ 99.50
13
4528945D01
ref: 13
PLATE,SEAT LOCK GUARD
€ 10.50
14-1
0913906075
ref: 14-1
MODEL S/T
SCREW(6X12)
0913906075
€ 3.00
14-2
0913906092
ref: 14-2
MODEL V
SCREW(6X14)
0913906092
€ 3.50
15-1
0940714403
ref: 15-1
MODEL S/T
CLAMP(L:125)
0940714403
€ 2.50
15-2
0940714403
ref: 15-2
MODEL V
CLAMP(L:125)
0940714403
€ 2.50
16-1
4621021E00291
ref: 16-1
HANDLE,PILLION RIDER,R(BLACK)
€ 84.50
16-2
4622021E00291
ref: 16-2
HANDLE,PILLION RIDER,L(BLACK)
€ 84.50
17
0925006004
ref: 17
CAP(OD:14.5)
0925006004
€ 1.50
18
0932011008
ref: 18
CUSHION
0932011008
€ 3.00
19
0918008033
ref: 19
SPACER(8.4X12X12)
0918008033
€ 2.50
20
0713008353
ref: 20
BOLT
€ 4.00
21
0712008303
ref: 21
BOLT
0712008303
€ 3.50
16-2
4622021E00291
ref: 16-2
HANDLE,PILLION RIDER,L(BLACK)
€ 84.50
17
0925006004
ref: 17
CAP(OD:14.5)
0925006004
€ 1.50
18
0932011008
ref: 18
CUSHION
0932011008
€ 3.00
19
0918008033
ref: 19
SPACER(8.4X12X12)
0918008033
€ 2.50
20-1
0713008355
ref: 20-1
MODEL P
BOLT,UPPER
€ 4.00
20-2
0713008353
ref: 20-2
MODEL R
BOLT
€ 4.00
21-1
0712008307
ref: 21-1
MODEL P
BOLT
0712008307
€ 3.50
21-2
0712008303
ref: 21-2
MODEL R
BOLT
0712008303
€ 3.50
22
0946200008
ref: 22
BAND
0946200008
€ 4.50
