FRONT WHEEL

RF900R 1995 (S2) (E02 E04 E18 E22 E24 E25 E34 E37)

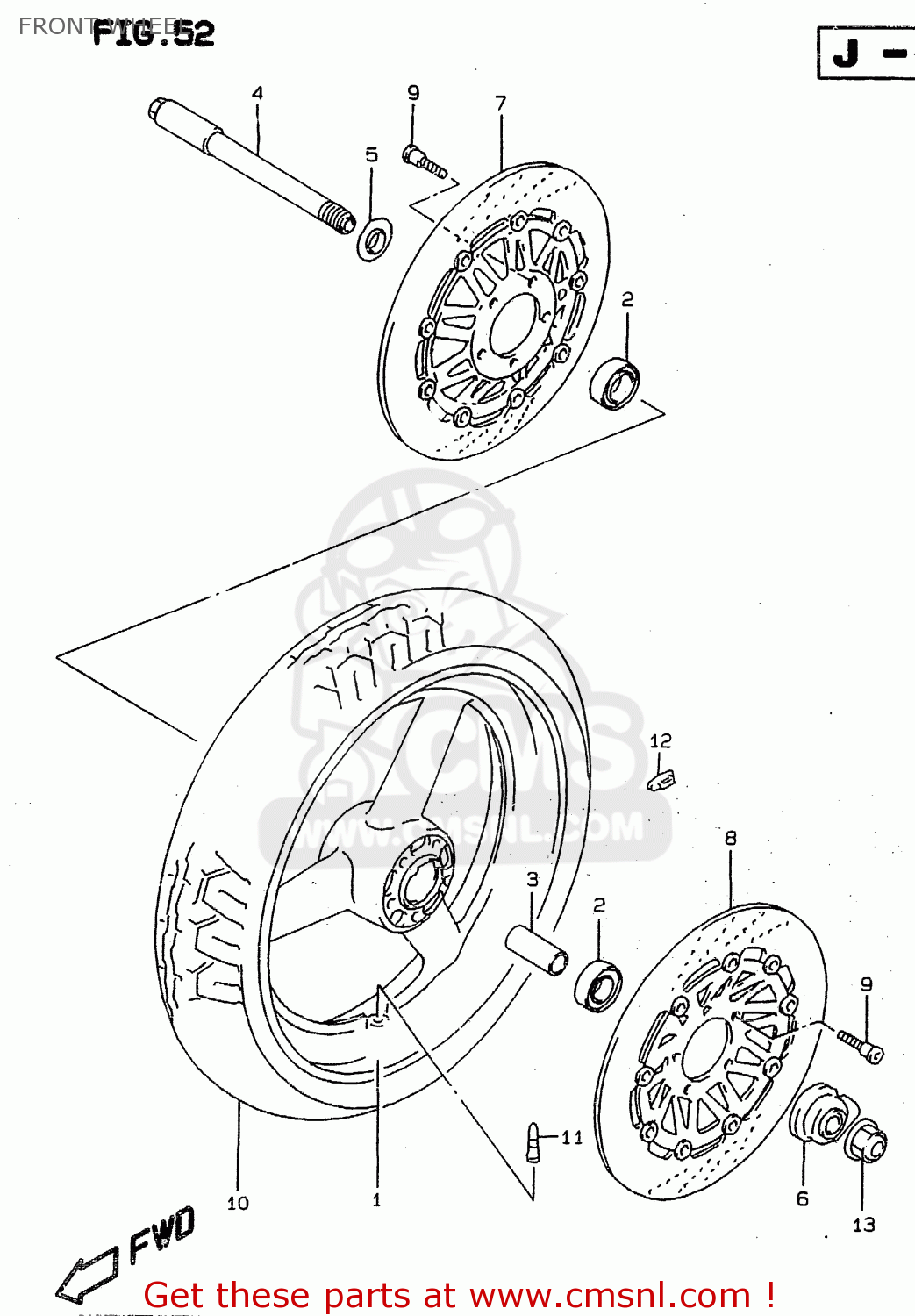

Front wheel diagram RF900R 1995 (S2) (E02 E04 E18 E22 E24 E25 E34 E37)

FRONT WHEEL RF900R 1995 (S2) (E02 E04 E18 E22 E24 E25 E34 E37)

FRONT WHEEL RF900R 1995 (S2) (E02 E04 E18 E22 E24 E25 E34 E37)

prices are in EUR

ref

part #

description

quantity

1-1

5411117E111TU
ref: 1-1
RF900RR FOR 33J

WHEEL,FRONT (MT3.50X17)

€ 636.00

1-2

5411117E1135W
ref: 1-2
FOR 19A, 1HU, 1UH

WHEEL,FRONT (MT3.50X17)

€ 700.50

1-3

5411117E11Y22
ref: 1-3
RF900RS2 FOR D8A

WHEEL,FR(MT3.50X17)

€ 564.50

1-4

5411117E1112R
ref: 1-4
FOR F3C, E6M, 7AY, G

WHEEL,FRONT (17XMT3.50)(

€ 652.00

2

0812362047
ref: 2

BEARING

€ 17.00

3

0918020103
ref: 3

SPACER(20.8X27.2X74)

€ 31.50

4

5471131E00
ref: 4

AXLE,FR

€ 97.50

5

5474017C00
ref: 5

SPACER,FR HUB BEARING,R

€ 17.50

6

5460017C01
ref: 6

BOX ASSY,SPEEDOMETER GEAR

€ 139.00

7-1

5921031E00
ref: 7-1
MODEL R/S/T

DISC, FRONT BRAKE RH

€ 258.50

7-2

5921031E01
ref: 7-2
MODEL V

DISC,FR BRAKE,R

€ 0.00

7-3

5921031E10
ref: 7-3
MODEL W

DISC,FR BRAKE,R

€ 241.50

8-1

5922031E00
ref: 8-1
MODEL R/S/T

DISC COMP,FRONT BRAKE

€ 258.50

8-2

5922031E01
ref: 8-2
MODEL V

DISC,FR BRAKE,L

€ 0.00

8-3

5922031E10
ref: 8-3
MODEL W

DISC,FR BRAKE,L

€ 241.50

9

0910608125
ref: 9

BOLT 8X33

€ 6.00

10-1

5511031E00
ref: 10-1

TIRE,FRONT 120/70 ZR17

€ 246.00

10-2

5511031E10
ref: 10-2
MODEL S

TIRE,FRONT 120/70 ZR17

€ 246.00

11

4313024A11
ref: 11

VALVE ASSEMBLY,WHEEL,TR412

€ 7.00

12-1

5541100A00
ref: 12-1

BALANCER,WHEEL (10G)

€ 6.50

12-2

5541200A01
ref: 12-2

BALANCER,WHEEL (20G)

€ 7.00

13

0915920006
ref: 13

NUT

€ 19.00
