WIRING HARNESS

RF900R 1995 (S2) (E02 E04 E18 E22 E24 E25 E34 E37)

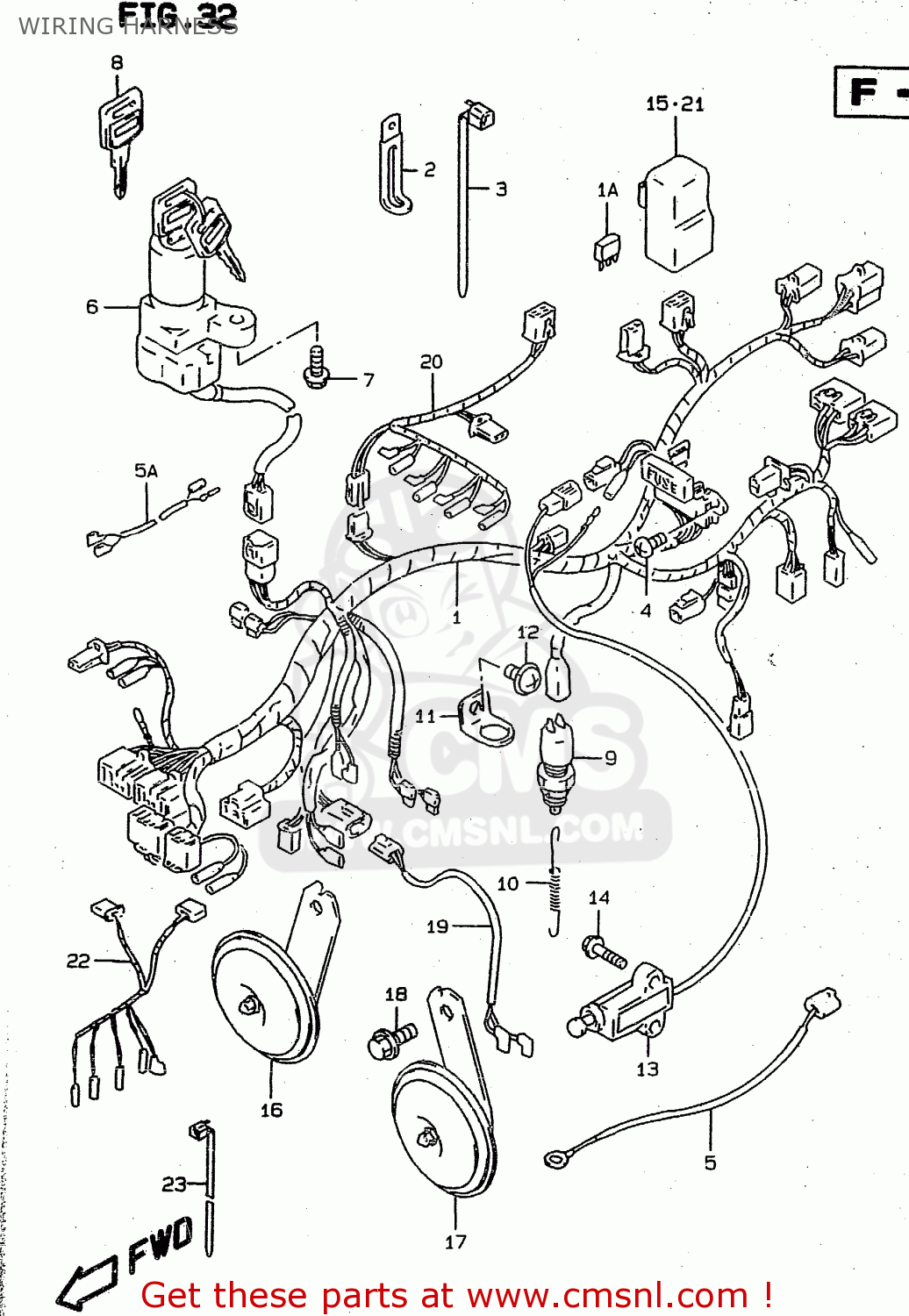

Wiring harness diagram RF900R 1995 (S2) (E02 E04 E18 E22 E24 E25 E34 E37)

WIRING HARNESS RF900R 1995 (S2) (E02 E04 E18 E22 E24 E25 E34 E37)
WIRING HARNESS RF900R 1995 (S2) (E02 E04 E18 E22 E24 E25 E34 E37)
WIRING HARNESS RF900R 1995 (S2) (E02 E04 E18 E22 E24 E25 E34 E37)
prices are in EUR
ref
part #
description
quantity
1-1
3661021E10
ref: 1-1
MODEL R
HARNESS,WIRING
€ 511.50
1-2
3661021E11
ref: 1-2
MODEL S
HARNESS,WIRING
€ 511.50
1-3
3661021E20
ref: 1-3
MODEL T/V/W
HARNESS,WIRING
€ 477.50
1A
3661138A00
ref: 1A
DIODE(STANLEY DE8804)
3661138A00
€ 13.00
2-1
0940406402
ref: 2-1
MODEL R/S
CLAMP
€ 2.50
2-2
0940406429
ref: 2-2
MODEL T/V/W
CLAMP(L:45)
€ 2.50
3-1
0940711402
ref: 3-1
CLAMP(L:90)
0940711402
€ 2.50
3-2
0940714403
ref: 3-2
CLAMP(L:125)
0940714403
€ 2.50
3-3
0940718403
ref: 3-3
CLAMP L:165
€ 2.50
4
0214206123
ref: 4
SCREW 6X12
0214206123
€ 2.00
5
3685117E10
ref: 5
WIRE,OIL PRESSURE SWITCH LEAD
3685117E10
€ 13.50
5A
3685219D00
ref: 5A
WIRE,CLUTCH LEAD
3685219D00
€ 12.00
6-1
3710026D02
ref: 6-1
MODEL R/S/T/V
LOCK ASSEMBLY,STEERING
3710026D02
€ 134.00
6-2
3710033D40
ref: 6-2
MODEL W
LOCK ASSY,STEE
€ 128.00
6-3
3710026D11
ref: 6-3
E24
LOCK ASSY,STEERING
€ 103.50
7
0913906026
ref: 7
SCREW(6X18)
0913906026
€ 2.50
8
3714626D10
ref: 8
OPT
KEY,BLANK
3714626D10
€ 41.50
9
3774024A00
ref: 9
SWITCH ASSY,STOP LAMP
3774024A00
€ 20.50
10
0944306012
ref: 10
SPRING
0944306012
€ 3.00
11
4325121E00
ref: 11
BRACKET,STOP LAMP SWITCH
4325121E00
€ 3.50
12
0214206083
ref: 12
SCREW
0214206083
€ 1.50
13-1
3784044A20
ref: 13-1
MODEL R
SWITCH ASSEMBLY,SIDE STAND
€ 75.50
13-2
3784044X50
ref: 13-2
MODEL S/T/V/W
SWITCH ASSY,SIDE STAND
3784044X50
€ 75.50
14
0155006203
ref: 14
BOLT
0155006203
€ 2.50
15
3874024X50
ref: 15
RELAY ASSY
3874024X50
€ 37.50
16-1
3850221E00
ref: 16-1
MODEL R/S
HORN ASSEMBLY,LOW PITCH
€ 63.50
16-2
3850221E02
ref: 16-2
MODEL T/V/W <-38502-
HORN ASSY
3850221E02
€ 63.50
17
3850121E01
ref: 17
E18, E25, E34, E37,
HORN ASSY
3850121E01
€ 54.00
18
0155008163
ref: 18
BOLT
0155008163
€ 3.00
19
3685221E10
ref: 19
E18, E25, E34, E37,
WIRE,HORN LEAD
€ 14.00
20
3685921E00
ref: 20
MODEL S
WIRE,CARBURETOR HEATER LEAD
3685921E00
€ 51.50
21
3874024X50
ref: 21
MODEL S/T/V/W
RELAY ASSY
3874024X50
€ 37.50
22
3885621E00
ref: 22
MODEL T/V/W
WIRE, CARB HEATER LEAD
€ 0.00
23
0940711401
ref: 23
MODEL T/V/W
CLAMP(L:95)
0940711401
€ 2.50
