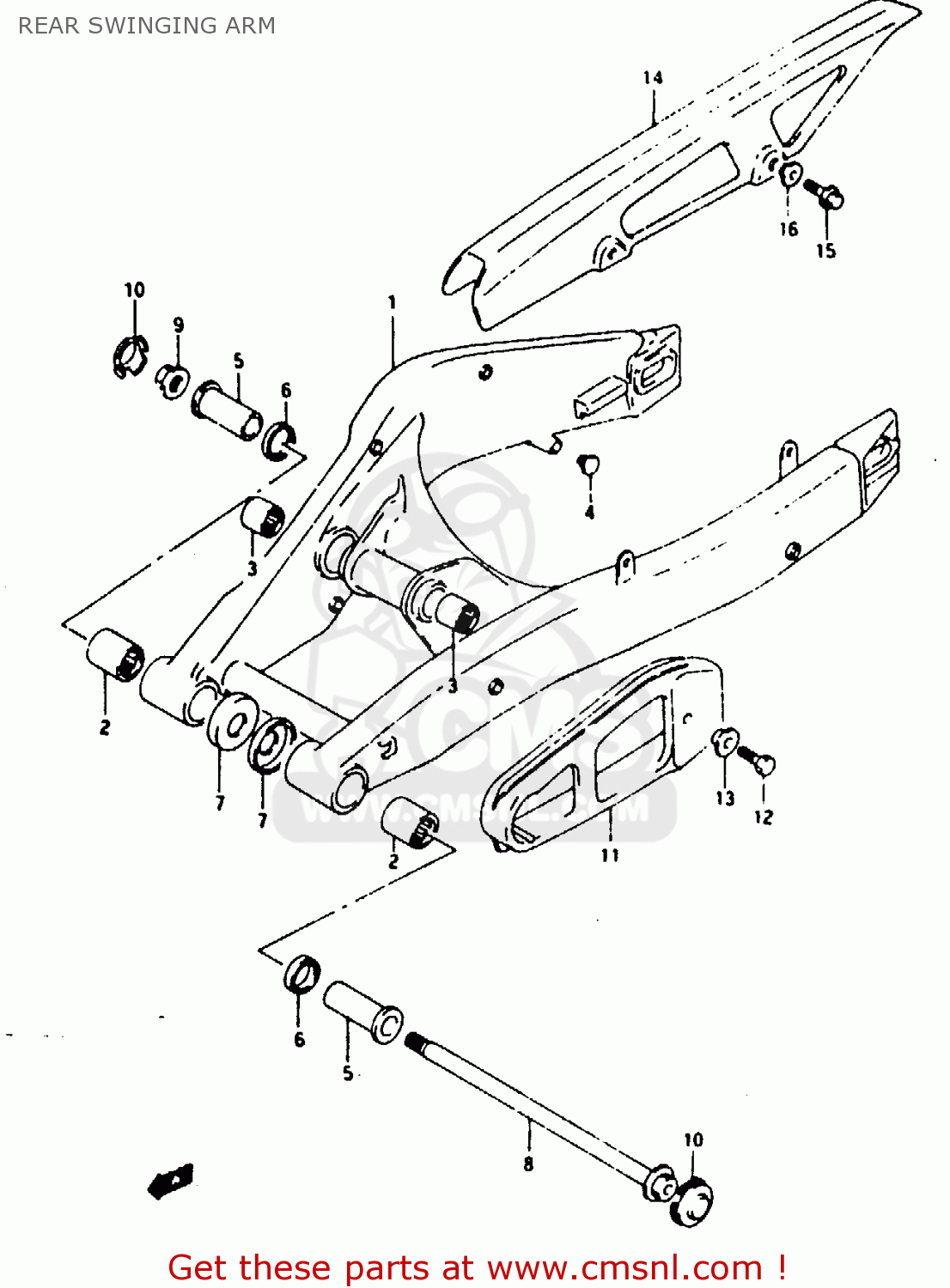

REAR SWINGING ARM

ref

part #

description

quantity

1-1

6100019D0013L
ref: 1-1
MODEL N @r61000-19D5

SWINGING ARM ASSY, REAR (SILVER)

€ 535.00

1-2

6100019D5013L
ref: 1-2
MODEL N MODEL P/R E4

SWINGING ARM ASSY, REAR (SILVER)

€ 535.00

1-3

6100019D7013L
ref: 1-3
MODEL P/R E1, E2, E1

SWINGING ARM ASSY, REAR (SILVER)

€ 555.00

2

0926320073
ref: 2

BEARING(20X27X30)

€ 24.50

3

0926317037
ref: 3

BEARING(17X24X25)

€ 19.00

4

0925008016
ref: 4

CAP(OD:12)

€ 2.50

5

6125138200
ref: 5

SPACER,RR SWGARM PIVOT OUTER

€ 16.50

6

0928520005
ref: 6

OIL SEAL

€ 5.00

7

6126219D00
ref: 7

COVER, PIVOT DUST

€ 6.00

8

6121119D00
ref: 8

SHAFT, PIVOT

€ 23.00

9

0831931148
ref: 9

NUT

€ 9.00

10

4149914A00019
ref: 10

CAP,CUSHION LEVER

€ 3.00

11

6127319D00
ref: 11

BUFFER,CHAIN TOUCH DEFENSE

€ 32.50

12-1

0110706205
ref: 12-1
MODEL N/P

BOLT

€ 2.00

12-2

0155006203
ref: 12-2
MODEL R

BOLT

€ 2.50

13

0916906064
ref: 13

WASHER

€ 4.50

14

6131019D00
ref: 14

CASE,CHAIN

€ 78.00

15-1

0151706105
ref: 15-1
MODEL N/P

BOLT

€ 2.50

15-2

0155006103
ref: 15-2
MODEL R

BOLT

€ 2.50

16

0916906026
ref: 16

WASHER

€ 2.00
