SPEEDOMETER
RG125FU 1994 (R) (E02 E04)

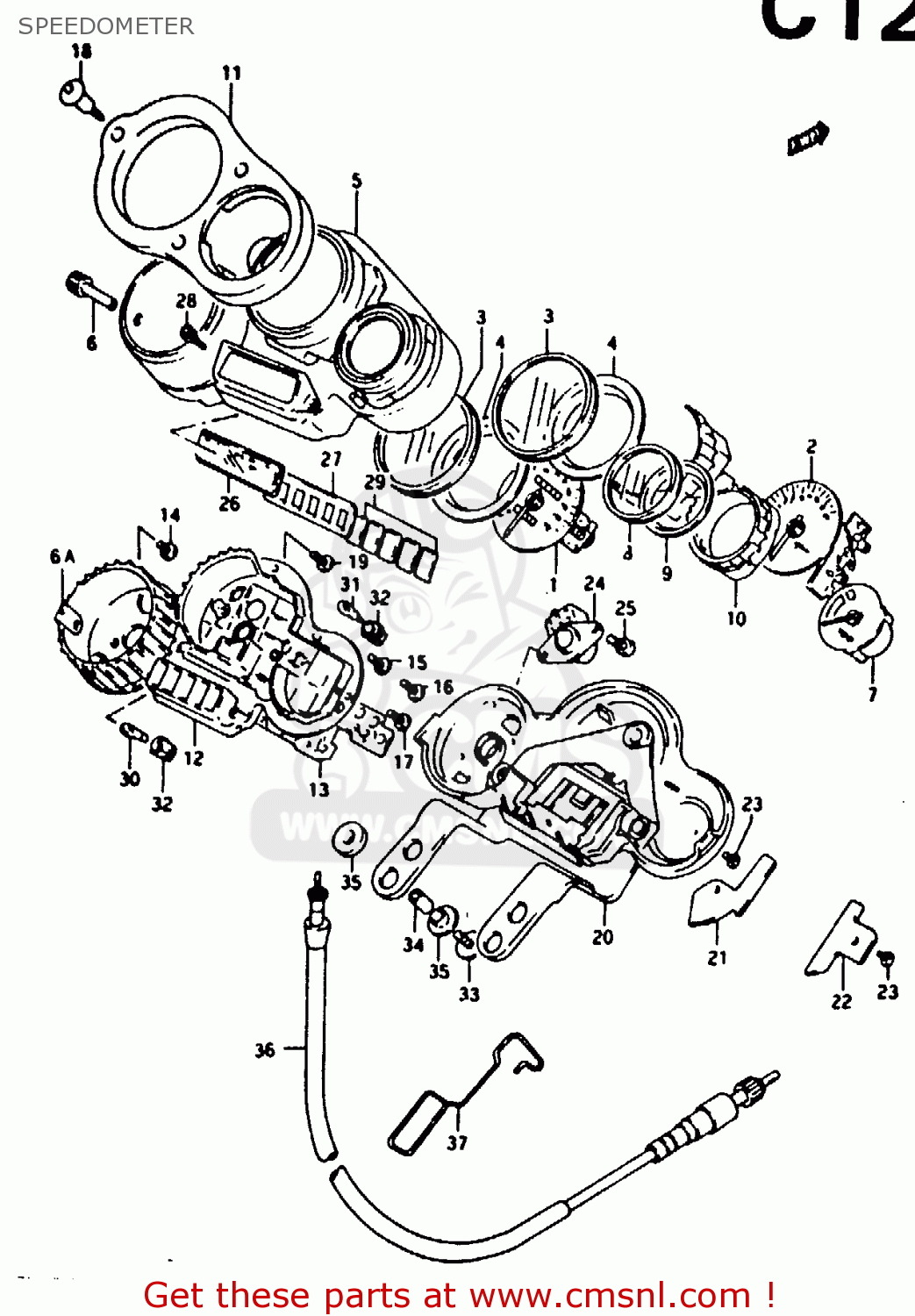

Speedometer diagram RG125FU 1994 (R) (E02 E04)
SPEEDOMETER RG125FU 1994 (R) (E02 E04)
×
prices are in EUR
ref
part #
description
quantity
1-1
3411019D00
ref: 1-1
SPEEDOMETER (KILO)
€ 223.50
1-2
3411019D10
ref: 1-2
E2
SPEEDOMETER (MILE/KILO)
€ 194.00
2
3421019D00
ref: 2
TACHOMETER
€ 374.50
3
3415419D00
ref: 3
GLASS
€ 30.00
4
3411319D00
ref: 4
PLATE,SPEEDOMETER
€ 28.00
5
3415019D00
ref: 5
CASE,SPEEDOMETER
€ 66.50
6
3412427A00
ref: 6
KNOB,TRIP
€ 7.50
6A
3412638D10
ref: 6A
COVER,SPEEDOMETER KNOB
€ 6.00
7
3441019D00
ref: 7
METER,TEMP
€ 96.50
8
3441219D00
ref: 8
GLASS,TEMPERATURE METER
€ 19.50
9
3441319D00
ref: 9
PLATE,TEMPERATURE METER
€ 27.00
10
3441119D00
ref: 10
CASE,TEMPERATURE METER
€ 47.00
11-1
3425719D00
ref: 11-1
MODEL N/P
COVER, SPEEDOMETER
€ 53.50
11-2
3425719D01
ref: 11-2
MODEL R
COVER, SPEEDOMETER
€ 53.50
12
3416519D00
ref: 12
CASE,METER
€ 59.50
13
3417719D00
ref: 13
PLATE,PRINTED
€ 50.00
14
3414919D00
ref: 14
SCREW
€ 2.50
15
3414719D00
ref: 15
SCREW
€ 1.50
16
3424919D00
ref: 16
SCREW
€ 1.50
17
3412516A00
ref: 17
SCREW
€ 2.00
18
3419919D00
ref: 18
BOLT,COVER
€ 8.50
19
3438349020
ref: 19
SCREW,METER
€ 1.50
20
3416619D00
ref: 20
COVER,LWR
€ 179.00
21
3419319D00
ref: 21
PLATE,SPEEDOMETER
€ 16.00
22
3449319D00
ref: 22
PLATE,TEMP METER
€ 14.00
23
0311114165
ref: 23
SCREW
€ 2.00
24
3413127A00
ref: 24
BOX,METER GEAR
€ 116.50
25
0211234105
ref: 25
SCREW, 4X10
€ 2.00
26
3639319D00
ref: 26
GLASS, PILOT BOX
€ 7.50
27-1
3639619D00
ref: 27-1
MODEL N
GASKET
€ 13.00
27-2
3639619D01
ref: 27-2
MODEL P/R
GASKET
€ 13.00
28
3418619D00
ref: 28
BOLT
€ 3.00
29-1
3630019840
ref: 29-1
LENS SET
€ 24.00
29-2
3630019850
ref: 29-2
E2
LENS SET
€ 24.00
30
0947112085
ref: 30
BULB(12V3W,WB371,T7)
€ 3.00
31
0947112100
ref: 31
BULB(12V1.7W,WB372,T7)
€ 2.00
32
3417319D00
ref: 32
SOCKET
€ 17.00
33
0911606131
ref: 33
BOLT(6X25)
€ 2.00
34
0918006239
ref: 34
SPACER (6.1X8X15)
€ 3.00
35
0932008060
ref: 35
CUSHION
€ 4.50
36-1
3491019D00
ref: 36-1
MODEL N
CABLE ASSY, SPEEDOMETER
€ 82.00
36-2
3491019D01
ref: 36-2
MODEL P/R
CABLE ASSY,SPEEDOMETER
€ 82.00
37
3493819D10
ref: 37
GUIDE,SPEEDOMETER CABLE
€ 0.00
