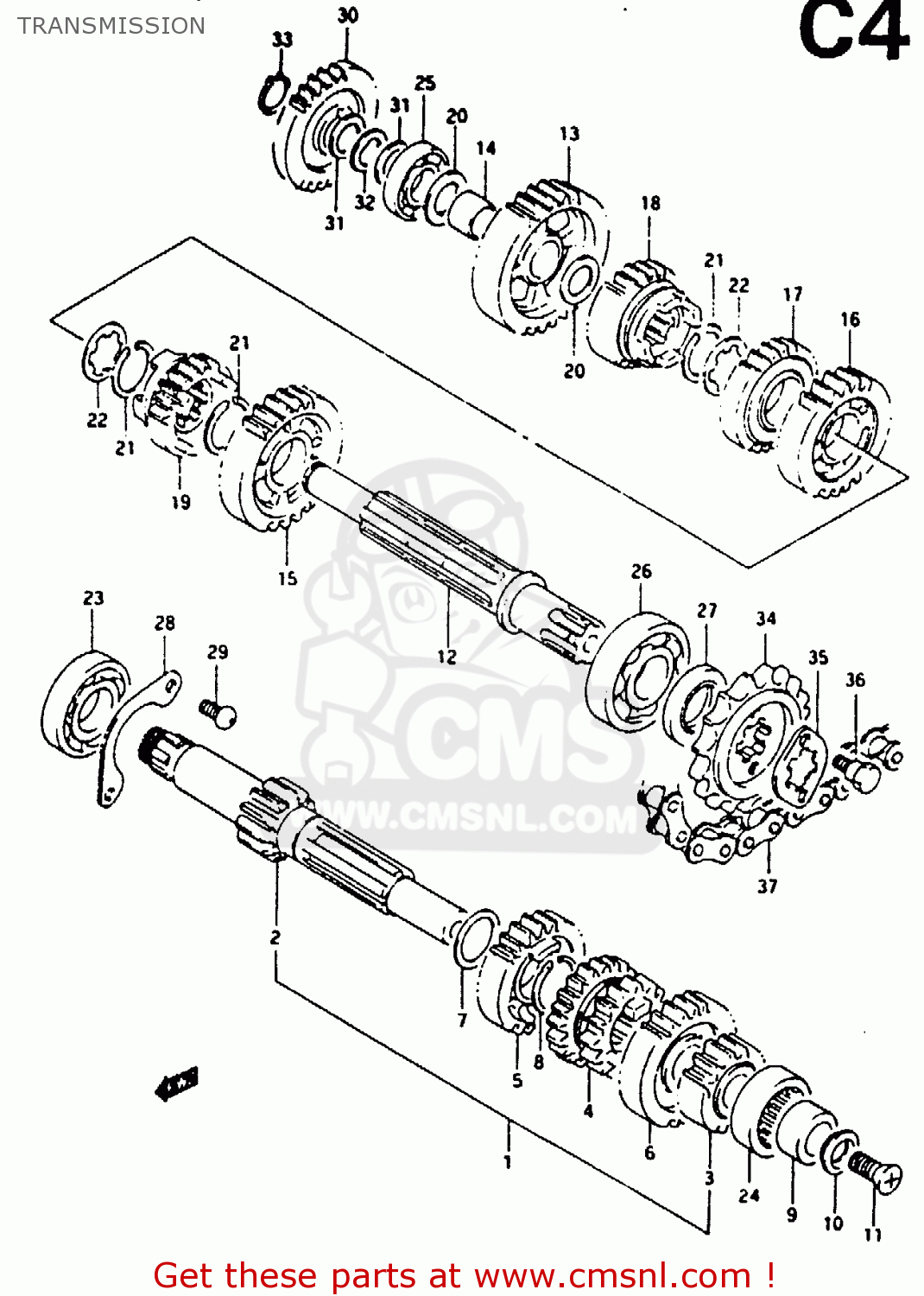

TRANSMISSION

ref

part #

description

quantity

1

2412019D00
ref: 1
MODEL N/P

COUNTER SHAFT

€ 0.00

2

2412103D02
ref: 2

SHAFT,COUNTER(NT11)

€ 101.50

3

2422103D02
ref: 3

GEAR,2ND DRIVE(NT:14)

€ 60.00

4

2423103D02
ref: 4

GEAR, 3RD/4TH DRIVE (NT:15/21)

€ 75.00

5

2425103D00
ref: 5

GEAR,5TH DRIVE(NT:24)

€ 67.00

6

2426119D00
ref: 6

GEAR, 6TH DRIVE (NT:24)

€ 47.00

7

0821120261
ref: 7

WASHER

€ 2.50

8

0938020007
ref: 8

CIRCLIP

€ 3.00

9

2412719D00
ref: 9

RACE,CNTR SHAFT L BRG INNER

€ 17.50

10

2412619D00
ref: 10

RETAINER,CNTR SHAFT L BEARING

€ 8.50

11

0212206128
ref: 11

SCREW

€ 3.00

12

2413103D00
ref: 12

SHAFT,DRIVE

€ 102.00

13

2431103D02
ref: 13

GEAR, 1ST DRIVEN (NT:29)

€ 51.00

14

0930015015
ref: 14

BUSH(15X18X13)

€ 13.00

15

2432119D00
ref: 15

GEAR,2ND DRIVEN(NT:26)

€ 191.00

16

2433119D00
ref: 16

GEAR,3RD DRIVEN(NT:20)

€ 54.50

17

2434103D00
ref: 17

GEAR,4TH DRIVEN(NT:23)

€ 49.00

18

2435103D00
ref: 18

GEAR,5TH DRIVE

€ 52.00

19

2436103D01
ref: 19

GEAR, 6TH DRIVEN (NT:20)

€ 52.50

20

0821115241
ref: 20

WASHER,THRUST

€ 4.00

21

0938022006
ref: 21

CIRCLIP

€ 3.00

22

0916722011
ref: 22

WASHER,LOCK

€ 3.00

23

0926220111
ref: 23
RH

BEARING(20X47X10.5)

€ 25.50

24

0926320081
ref: 24
LH

BEARING,20X32X1

€ 49.00

25

0926215025
ref: 25
RH

BEARING(15X35X8)

€ 17.00

26

0926220110
ref: 26
LH

BEARING(20X52X12.5)

€ 33.50

27

0928320038
ref: 27

OIL SEAL (20X35X5)

€ 5.50

28

2474112B00
ref: 28

RETAINER,CNTR SHAFT BEARING

€ 6.00

29

0211206128
ref: 29

SCREW 6X12

€ 2.00

30

2626036A01
ref: 30

GEAR,KICK STARTER IDLE

€ 39.50

31

0822115206
ref: 31

THRUST WASHER

€ 2.50

32

0916415008
ref: 32

WAVE WASHER

€ 3.00

33

0833131156
ref: 33

CIRCLIP

€ 2.00

34-1

2751019D00
ref: 34-1

SPROCKET,ENGINE(NT:16)

€ 29.50

34-2

2751003D00
ref: 34-2
E15, E18

SPROCKET, ENGINE (NT:15)

€ 37.00

35

2751236200
ref: 35

PLATE

€ 7.00

36

0911106039
ref: 36

BOLT(6X13)

€ 6.00

37-1

2760036A10130
ref: 37-1
MODEL N RG125FUP/FUR

CHAIN ASSY, DRIVE (DID 428VCA*130LE)

€ 106.50

37-2

2760036A10132
ref: 37-2
MODEL P/R

CHAIN ASSY, DRIVE (DID 428VCA*132LE)

€ 85.00
