COWLING (RG250H/FH)

RG250F 1987 (H) (E01 E02 E15 E24 E30 E34)

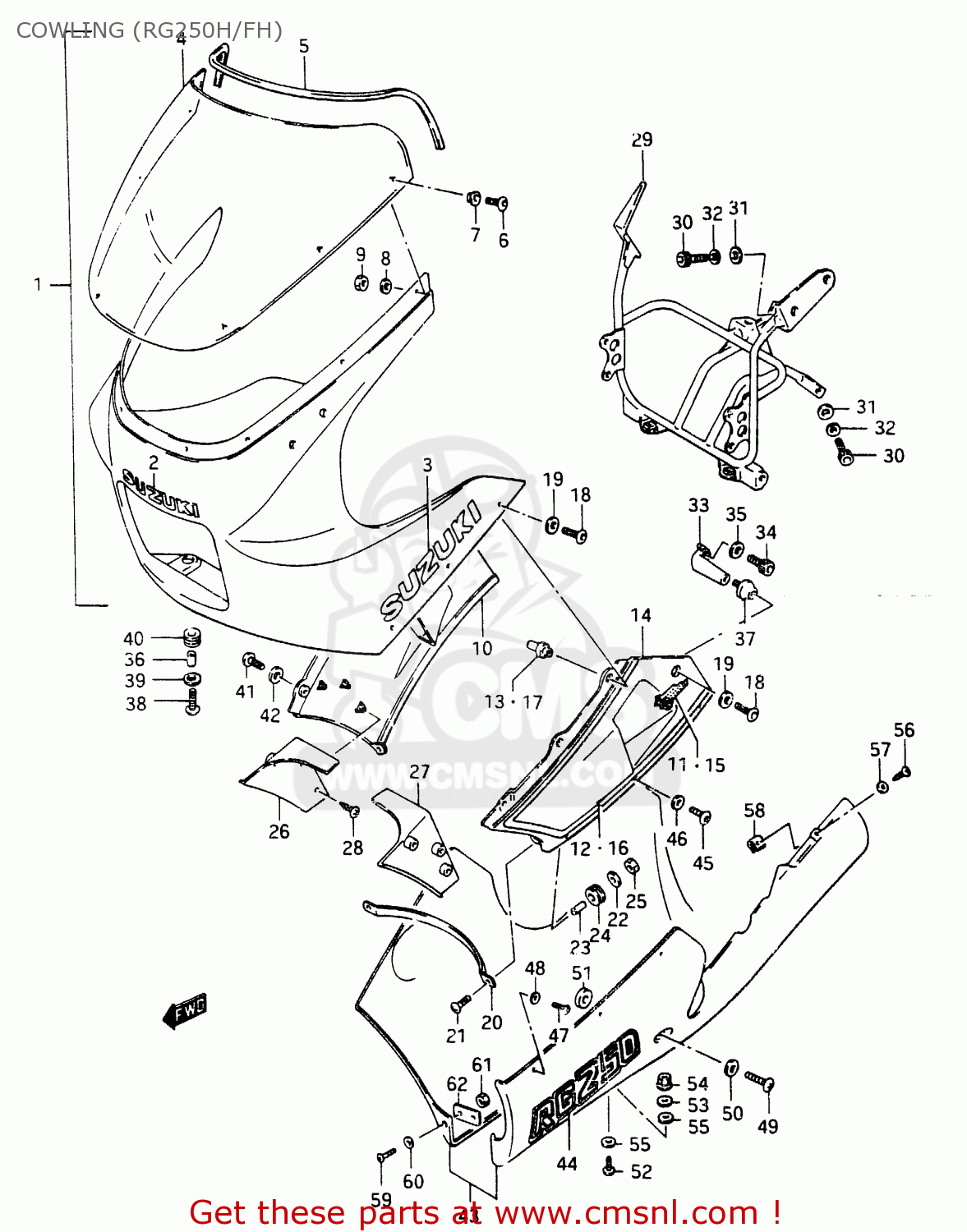

Cowling (rg250h/fh) diagram RG250F 1987 (H) (E01 E02 E15 E24 E30 E34)

COWLING (RG250H/FH) RG250F 1987 (H) (E01 E02 E15 E24 E30 E34)
COWLING (RG250H/FH) RG250F 1987 (H) (E01 E02 E15 E24 E30 E34)
COWLING (RG250H/FH) RG250F 1987 (H) (E01 E02 E15 E24 E30 E34)
prices are in EUR
ref
part #
description
quantity
1
9440040A4017P
ref: 1
COWLING ASSY (BLUE)
€ 686.50
2
6827104A00064
ref: 2
EMBLEM
6827104A00064
€ 12.00
3
6827140A2073H
ref: 3
EMBLEM
€ 12.00
4
9461140A00
ref: 4
WINDOW
€ 332.00
5
9463140A00
ref: 5
MOLDING
9463140A00
€ 18.00
6
0913905024
ref: 6
SCREW(5X14)
0913905024
€ 2.50
7
0932005008
ref: 7
CUSHION
0932005008
€ 5.00
8
0832221055
ref: 8
WASHER,5MM
0832221055
€ 2.50
9
0831921055
ref: 9
NUT 8MM
0831921055
€ 1.50
10
9445040A1022R
ref: 10
RG250H
COVER, COWLING RH
€ 206.50
10
9445040A2022R
ref: 10
RG250FH
COVER, COWLING RH
€ 209.50
11
6868120A109AR
ref: 11
EMBLEM
€ 10.00
12
6868040A20724
ref: 12
TAPE SET, RH
€ 0.00
13
9443416710
ref: 13
NUT,COWLING COVER
9443416710
€ 4.50
14
9446040A1022R
ref: 14
RG250H
COVER, COWLING LH
€ 157.00
14
9446040A2022R
ref: 14
RG250FH
COVER, COWLING LH
€ 178.00
15
6868120A109AR
ref: 15
EMBLEM
€ 10.00
16
6869040A20724
ref: 16
TAPE SET, LH
€ 0.00
17
9443416710
ref: 17
NUT,COWLING COVER
9443416710
€ 4.50
18
0913906028
ref: 18
SCREW(6X20)
0913906028
€ 3.50
19
0916006019
ref: 19
WASHER(6.5X16X1.2)
0916006019
€ 1.50
20
9442140A0022R
ref: 20
PANEL, COWLING LOWER
€ 13.00
21
0214206257
ref: 21
SCREW
€ 3.00
22
0916006027
ref: 22
WASHER (6.5X20X1.2)
0916006027
€ 2.00
23
0918006030
ref: 23
SPACER (6.8X10X10)
0918006030
€ 2.00
24
0932010015
ref: 24
CUSHION
0932010015
€ 2.50
25
0831921068
ref: 25
NUT 6MM
0831921068
€ 2.00
26
9445140A00
ref: 26
GUIDE PLATE, RH
€ 12.00
27
9446140A00
ref: 27
GUIDE PLATE, LH
€ 11.50
28
0321205105
ref: 28
SCREW
0321205105
€ 1.00
29
9451040A01
ref: 29
BRACE, COWLING
€ 96.50
30
0711008205
ref: 30
BOLT
€ 3.00
31
0832211084
ref: 31
WASHER
0832211084
€ 1.50
32
0832121084
ref: 32
WASHER,LOCK,8.
0832121084
€ 2.50
33
9453140A00
ref: 33
SPACER, COWLING LOWER
€ 15.50
34
0711008168
ref: 34
BOLT
€ 3.00
35
0832211084
ref: 35
WASHER
0832211084
€ 1.50
36
0918006120
ref: 36
SPACER(6.5X11.5X12)
0918006120
€ 2.50
37
9457016701
ref: 37
CUSHION,COWLING
9457016701
€ 16.50
38
0913906028
ref: 38
SCREW(6X20)
0913906028
€ 3.50
39
0916006076
ref: 39
WASHER
€ 2.00
40
0932011008
ref: 40
CUSHION
0932011008
€ 3.00
41
0913906042
ref: 41
SCREW(6X30)
0913906042
€ 7.50
42
0916006019
ref: 42
WASHER(6.5X16X1.2)
0916006019
€ 1.50
43
9447040A217PD
ref: 43
RG250FH,RG250HOPT
COWLING ASSY, UNDER
€ 725.50
44
6819140A308KY
ref: 44
RG250FH,RG250HOPT
EMBLEM
€ 10.50
45
0913906027
ref: 45
RG250FH,RG250HOPT
SCREW(6X12)
0913906027
€ 3.00
46
0916006019
ref: 46
RG250FH,RG250HOPT
WASHER(6.5X16X1.2)
0916006019
€ 1.50
47
9449920A00
ref: 47
RG250FH,RG250HOPT
SCREW
9449920A00
€ 2.00
48
9448920A00
ref: 48
RG250FH,RG250HOPT
WASHER
9448920A00
€ 7.50
49
0214206257
ref: 49
RG250FH,RG250HOPT
SCREW
€ 3.00
50
0916006019
ref: 50
RG250FH,RG250HOPT
WASHER(6.5X16X1.2)
0916006019
€ 1.50
51
9447720A00
ref: 51
RG250FH,RG250HOPT
CUSHION
9447720A00
€ 8.50
52
0214205167
ref: 52
RG250FH,RG250HOPT
SCREW
0214205167
€ 1.50
53
9446920A00
ref: 53
RG250FH,RG250HOPT
WASHER
9446920A00
€ 2.00
54
0831921058
ref: 54
RG250FH,RG250HOPT
NUT
€ 1.50
55
9447840A00
ref: 55
RG250FH,RG250HOPT
WASHER
9447840A00
€ 5.00
56
0324205169
ref: 56
RG250FH,RG250HOPT
SCREW
€ 1.50
57
9447840A00
ref: 57
RG250FH,RG250HOPT
WASHER
9447840A00
€ 5.00
58
9447940A00
ref: 58
RG250FH,RG250HOPT
NUT
9447940A00
€ 4.00
59
9449920A00
ref: 59
RG250FH,RG250HOPT
SCREW
9449920A00
€ 2.00
60
9448920A00
ref: 60
RG250FH,RG250HOPT
WASHER
9448920A00
€ 7.50
61
0831022048
ref: 61
RG250FH,RG250HOPT
NUT 4MM
€ 2.00
62
9448440A00
ref: 62
RG250FH,RG250HOPT
BRACKET
€ 6.50
