REAR SWINGING ARM

RG250F 1987 (H) (E01 E02 E15 E24 E30 E34)

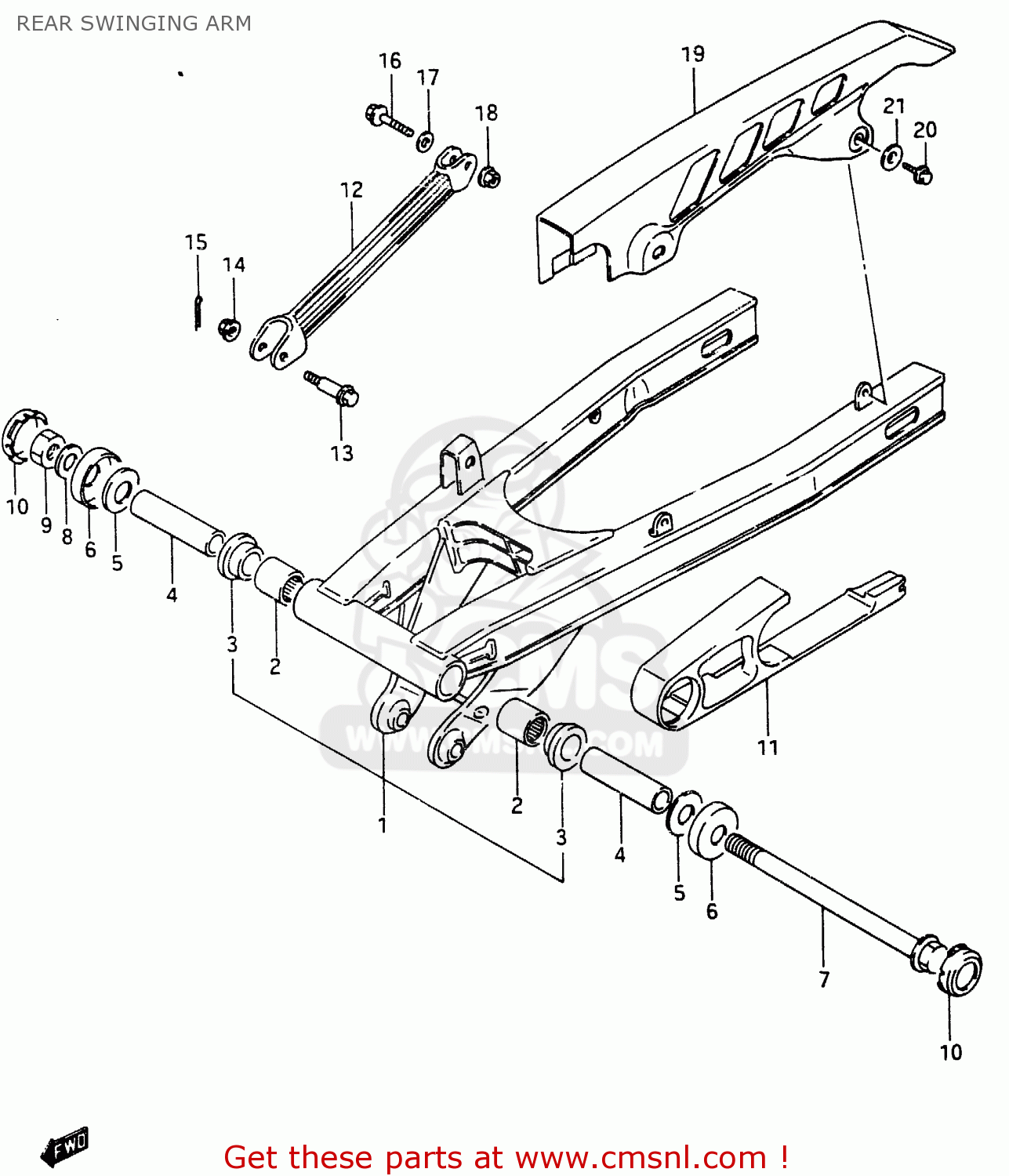

Rear swinging arm diagram RG250F 1987 (H) (E01 E02 E15 E24 E30 E34)

REAR SWINGING ARM RG250F 1987 (H) (E01 E02 E15 E24 E30 E34)
REAR SWINGING ARM RG250F 1987 (H) (E01 E02 E15 E24 E30 E34)
REAR SWINGING ARM RG250F 1987 (H) (E01 E02 E15 E24 E30 E34)
prices are in EUR
ref
part #
description
quantity
1
6100040A00
ref: 1
SWINGING ARM ASSY, REAR
€ 594.00
2
0926320039
ref: 2
BEARING(20X27X30)
0926320039
€ 21.00
3
6126116700
ref: 3
BUSHING
€ 20.50
4
6125116700
ref: 4
SPACER, PIVOT
6125116700
€ 21.00
5
0821114341
ref: 5
WASHER
0821114341
€ 3.00
6
6126245002
ref: 6
CVR,RR SWGARM DUST SEAL(OD:40)
6126245002
€ 4.50
7
6121116701
ref: 7
SHAFT, PIVOT
€ 23.50
8
0832211148
ref: 8
WASHER
0832211148
€ 2.00
9
0915914017
ref: 9
NUT
0915914017
€ 9.00
10
6122243400
ref: 10
CAP,SWINGINGARM PIVOT
6122243400
€ 4.00
11
6127340A00
ref: 11
BUFFER, CHAIN TACH DIFENCE
€ 29.50
12
6431004A00
ref: 12
TORQUE LINK, REAR
€ 43.50
13
0911108058
ref: 13
BOLT
€ 4.00
14
0831616088
ref: 14
NUT
0831616088
€ 2.50
15
0411120208
ref: 15
PIN 20X20
0411120208
€ 1.50
16
0910010227
ref: 16
BOLT(10X38)
0910010227
€ 3.50
17
0832211107
ref: 17
WASHER
0832211107
€ 2.50
18
0831931107
ref: 18
NUT
0831931107
€ 3.00
19
6131120A01291
ref: 19
CASE, CHAIN
€ 83.50
20
0151706105
ref: 20
BOLT
€ 2.50
21
0916906026
ref: 21
WASHER
0916906026
€ 2.00
