RIGHT HANDLE SWITCH (MODEL H)

RG250F 1987 (H) (E01 E02 E15 E24 E30 E34)

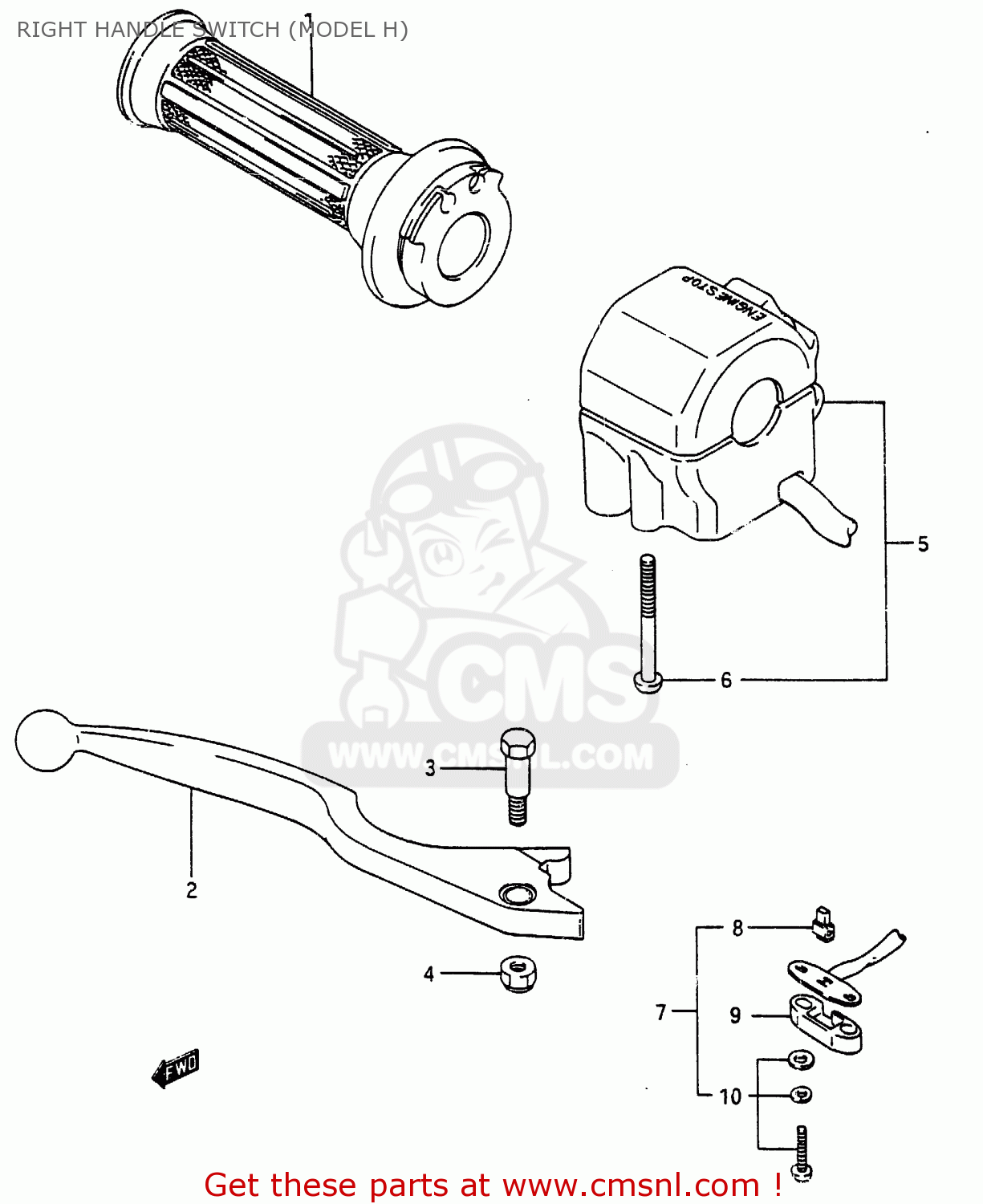

Right handle switch (model h) diagram RG250F 1987 (H) (E01 E02 E15 E24 E30 E34)

RIGHT HANDLE SWITCH (MODEL H) RG250F 1987 (H) (E01 E02 E15 E24 E30 E34)

RIGHT HANDLE SWITCH (MODEL H) RG250F 1987 (H) (E01 E02 E15 E24 E30 E34)

prices are in EUR

ref

part #

description

quantity

1

5711016710
ref: 1

GRIP,THROTTLE

€ 27.00

2

5742049101
ref: 2

LEVER,BRAKE

€ 36.50

3

5743149100
ref: 3

BOLT,LEVER PIVOT

€ 6.00

4

0831921065
ref: 4

NUT

€ 2.50

5

3720040A60
ref: 5

SWITCH ASSY, HANDLE RH

€ 0.00

5

3720040A50
ref: 5
E2,E4,E15,E16,E21,E2

SWITCH ASSY, HANDLE RH

€ 107.00

6

0211205455
ref: 6

SCREW, 5X45

€ 4.00

7

5746049300
ref: 7

SWITCH ASSEMBLY

€ 40.00

8

5746518601
ref: 8

CONTACT,SWITCH

€ 4.50

9

5748133010
ref: 9

COVER,FR BK TERMINAL BASE

€ 19.50

10

0912503105
ref: 10

SCREW

€ 2.50
