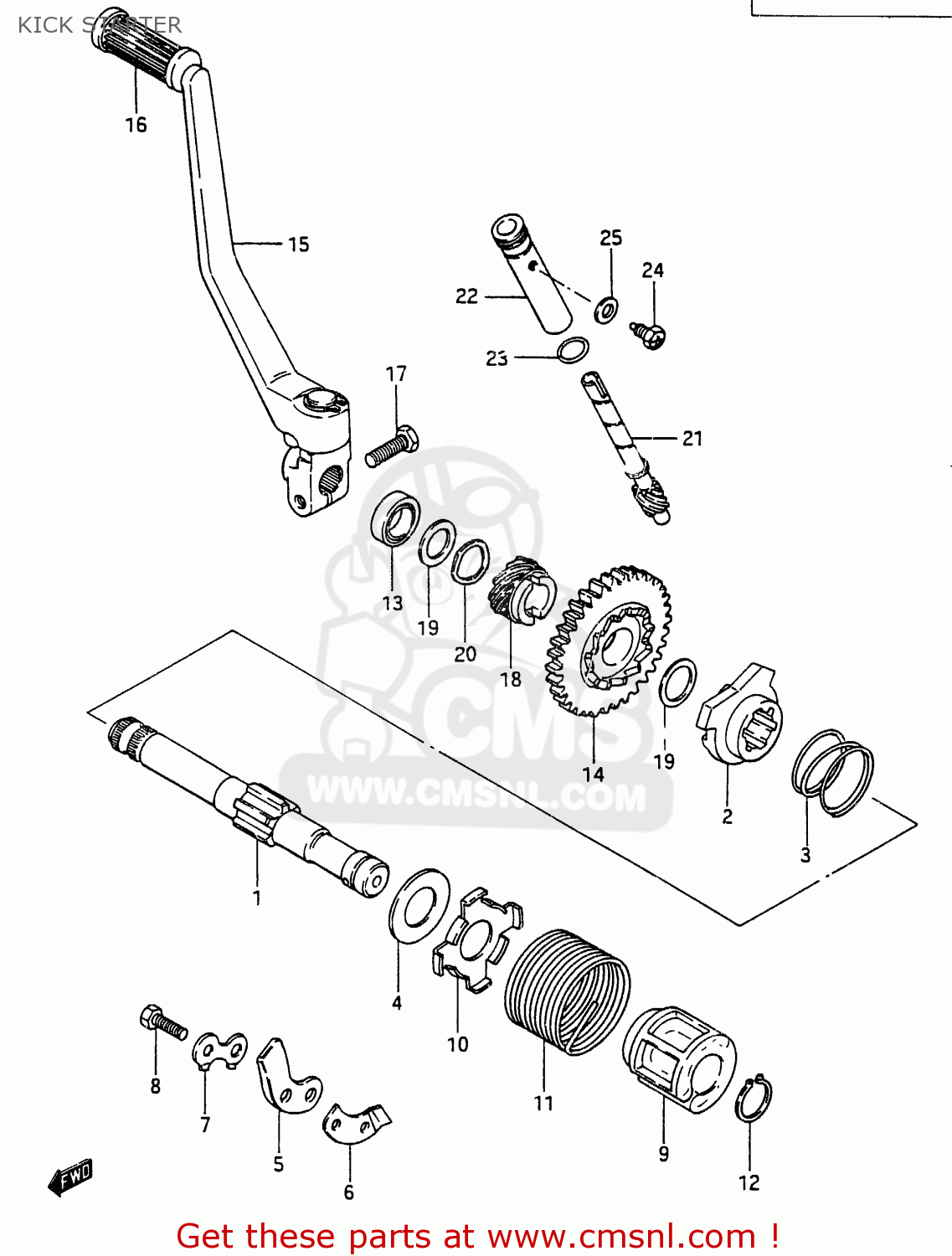

KICK STARTER

ref

part #

description

quantity

1

2621116700
ref: 1

SHAFT, KICK STARTER

€ 72.50

2

2623140A01
ref: 2

STARTER, KICK

€ 33.50

3

0944032002
ref: 3

SPRING

€ 2.00

4

0821117342
ref: 4

WASHER

€ 3.00

5

2623240A00
ref: 5

GUIDE, KICK STARTER

€ 0.00

6

2623330000
ref: 6

STOPPER,KICK STARTER

€ 4.00

7

0916906003
ref: 7

WASHER

€ 1.50

8

0110706166
ref: 8

BOLT

€ 2.00

9

2622130531
ref: 9

GUIDE,KICK SHAFT SPRING

€ 6.00

10

2622216500
ref: 10

HOLDER,KICK SHAFT SPRING

€ 0.00

11

0944845003
ref: 11

SPRING

€ 4.50

12

0938017001
ref: 12

CIRCLIP

€ 2.00

13

0928516003
ref: 13

SEAL,OIL(16X24X5)

€ 3.00

14

2624016700
ref: 14
NT:34

GEAR, KICK STARTER DRIVE

€ 77.50

15

2630016711
ref: 15

LEVER ASSY

€ 109.00

16

2635201000
ref: 16

RUBBER,KICK STARTER PEDAL

€ 3.50

17

0910008193
ref: 17

BOLT 8X25

€ 2.50

18

2642111301
ref: 18

GEAR, TACHOMETER DRIVE (NT:13)

€ 24.00

19

0822116245
ref: 19

WASHER

€ 3.50

20

0916416003
ref: 20

WASHER

€ 2.50

21

2643116700
ref: 21
NT:10

GEAR, TACHOMETER DRIVEN

€ 18.00

22

2644139102
ref: 22

SLEEVE,TACHOMETER DRIVE GEAR

€ 12.00

23

0928010001
ref: 23

O RING(D:1.3,ID:9.6)

€ 2.00

24

0913506002
ref: 24

BOLT

€ 2.50

25

0832221067
ref: 25

WASHER

€ 2.00

all assemblies
