AIR CLEANER
RG80 1988 (J) FRANCE GERMANY (E04 E22)

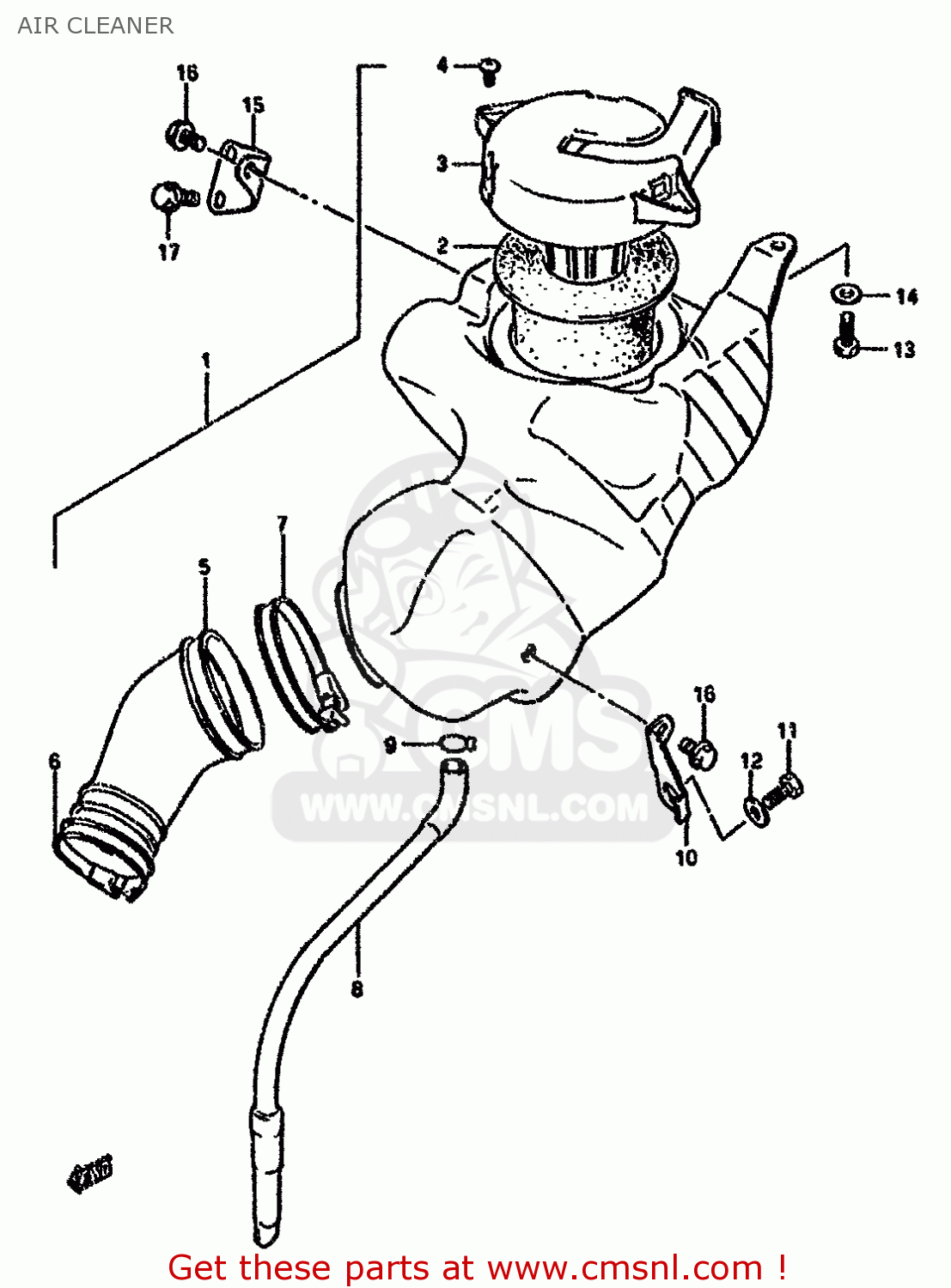

Air cleaner diagram RG80 1988 (J) FRANCE GERMANY (E04 E22)
AIR CLEANER RG80 1988 (J) FRANCE GERMANY (E04 E22)
×
prices are in EUR
ref
part #
description
quantity
1
1370046A00
ref: 1
CLEANER ASSY,AIR
€ 0.00
2
1378136A02
ref: 2
FILTER
€ 28.50
3
1389046A00
ref: 3
TUBE,AIR CLEANER OUTLET
€ 40.50
4
0214205103
ref: 4
SCREW
€ 2.50
5
1388146A00
ref: 5
TUBE,AIR CLEANER OUTLET
€ 25.50
6
0940248208
ref: 6
CLAMP
€ 4.50
7
0940264203
ref: 7
CLAMP
€ 6.00
8
1387021308
ref: 8
-13870-21291
TUBE,DRAIN
€ 16.50
9
0940113409
ref: 9
-13824-00A00
CLIP
€ 2.50
10
1376136A02
ref: 10
BRACKET, AIR CLEANER
€ 6.50
11
0150006167
ref: 11
BOLT
€ 3.00
12
0916006006
ref: 12
WASHER
€ 2.00
13
0150006207
ref: 13
BOLT
€ 2.00
14
0916006019
ref: 14
WASHER(6.5X16X1.2)
€ 1.50
15
1376236A01
ref: 15
BRACKET,AIRCLEANER
€ 3.50
16
0155006107
ref: 16
BOLT
€ 2.50
17
0155006167
ref: 17
BOLT
€ 1.50
