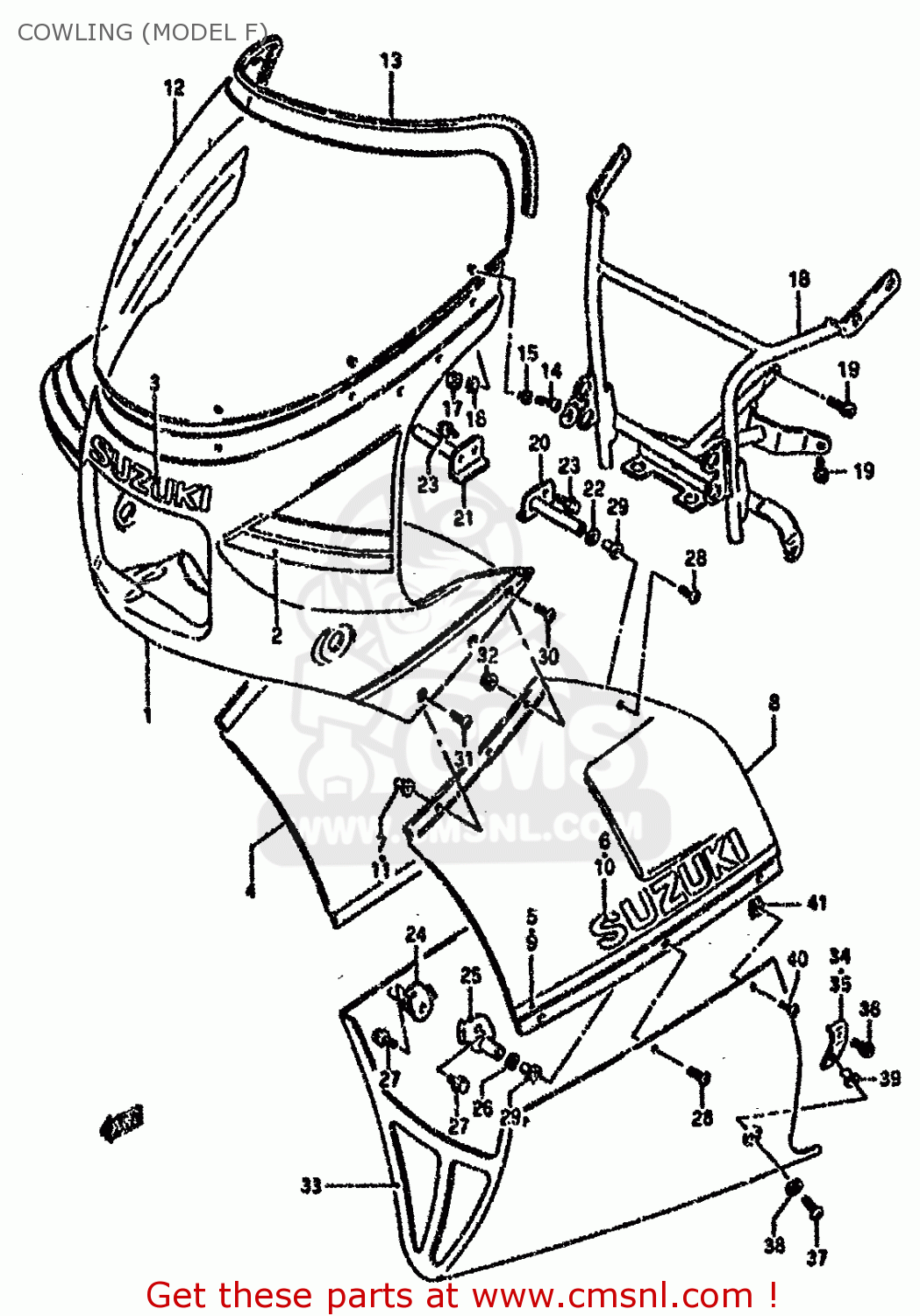

COWLING (MODEL F)

ref

part #

description

quantity

1-1

9441036A1019F
ref: 1-1

BODY,COWLING (BLUE)

€ 302.50

1-2

9441036A1014C
ref: 1-2

BODY,COWLING (RED

€ 302.50

2-1

6819036A007VN
ref: 2-1
FOR 19F

TAPE SET,COWLING

€ 36.50

2-2

6819036A007UY
ref: 2-2
FOR 14C

TAPE SET,COWLING

€ 42.00

3

6827143400064
ref: 3

EMBLEM,HEADLAMP

€ 4.00

4-1

9443036A2014L
ref: 4-1
FOR 19F

COVER,SIDE RH (WHITE)

€ 145.50

4-2

9443036A2008X
ref: 4-2
FOR 14C

COVER,SIDE RH (WHITE)

€ 145.50

5-1

6868036A0008L
ref: 5-1
FOR 14L

TAPE SET,SIDE RH (BLUE)

€ 6.50

5-2

6868036A0024M
ref: 5-2
FOR 08X

TAPE SET,SIDE RH (GRAY)

€ 0.00

6

681114340007G
ref: 6

EMBLEM

€ 8.00

7

9443416710
ref: 7

NUT,COWLING COVER

€ 4.50

8-1

9444036A2014L
ref: 8-1
FOR 19F

COVER,SIDE LH (WHITE)

€ 145.50

8-2

9444036A2008X
ref: 8-2
FOR 14C

COVER,SIDE LH (WHITE)

€ 145.50

9-1

6869036A0008L
ref: 9-1
FOR 14L

TAPE SET,SIDE LH (BLUE)

€ 6.50

9-2

6869036A0024M
ref: 9-2
FOR 08X

TAPE SET,SIDE LH (GRAY)

€ 0.00

10

681114340007G
ref: 10

EMBLEM

€ 8.00

11

9443416710
ref: 11

NUT,COWLING COVER

€ 4.50

12-1

9461136A00
ref: 12-1
E4

SCREEN,COWLING WIND

€ 244.50

12-2

9461146A00
ref: 12-2
E22

WIND SCREE,COWLING

€ 238.00

13

9463136A00
ref: 13

MOLDING, SCREEN

€ 15.00

14

0913905024
ref: 14

SCREW(5X14)

€ 2.50

15

0932005008
ref: 15

CUSHION

€ 5.00

16

0832221055
ref: 16

WASHER,5MM

€ 2.50

17

0831921055
ref: 17

NUT 8MM

€ 1.50

18

9451036A01
ref: 18

BRACE,COWLING

€ 85.00

19

0712006165
ref: 19

BOLT

€ 2.50

20

9452036A00
ref: 20

BRACE,COWLING RR

€ 9.00

21

9459036A00
ref: 21

BRACE,REAR RH

€ 8.00

22

0916010026
ref: 22

WASHER (10.5X18X1)

€ 2.00

23

0712006168
ref: 23

BOLT

€ 2.50

24

9453036A00
ref: 24

BRACE,SIDE RH

€ 6.50

25

9454036A00
ref: 25

BRACE,SIDE LH

€ 8.00

26

0916010026
ref: 26

WASHER (10.5X18X1)

€ 2.00

27

0151706167
ref: 27

BOLT 6X16

€ 1.50

28

0214205257
ref: 28

SCREW

€ 1.00

29

9461936A10
ref: 29

NUT

€ 6.50

30

0214206127
ref: 30

SCREW 6X12

€ 1.50

31

0214206167
ref: 31

SCREW

€ 2.00

32

0831626068
ref: 32

NUT 6MM

€ 2.00

33-1

9447046A007TG
ref: 33-1
OPT,FOR 19F

COVER,LOWER (WHITE/BLUE)

€ 0.00

33-2

9447046A007VA
ref: 33-2
OPT,FOR 14C

COVER,LOEWR (WHITE/RED)

€ 0.00

34

9457036A00
ref: 34
OPT

BRACE,COWLING LWR COVER

€ 5.00

35

9457046A00
ref: 35
OPT

BRACE,COWLING LWR COVER,R

€ 7.50

36

0151706167
ref: 36
OPT

BOLT 6X16

€ 1.50

37

0214205207
ref: 37
OPT

SCREW

€ 2.00

38

0832221057
ref: 38
OPT

WASHER

€ 2.50

39

9461936A10
ref: 39
OPT

NUT

€ 6.50

40

0214205128
ref: 40
OPT

SCREW

€ 1.50

41

0914805023
ref: 41
OPT

NUT

€ 1.50
