FUEL COCK

RG80 1988 (J) FRANCE GERMANY (E04 E22)

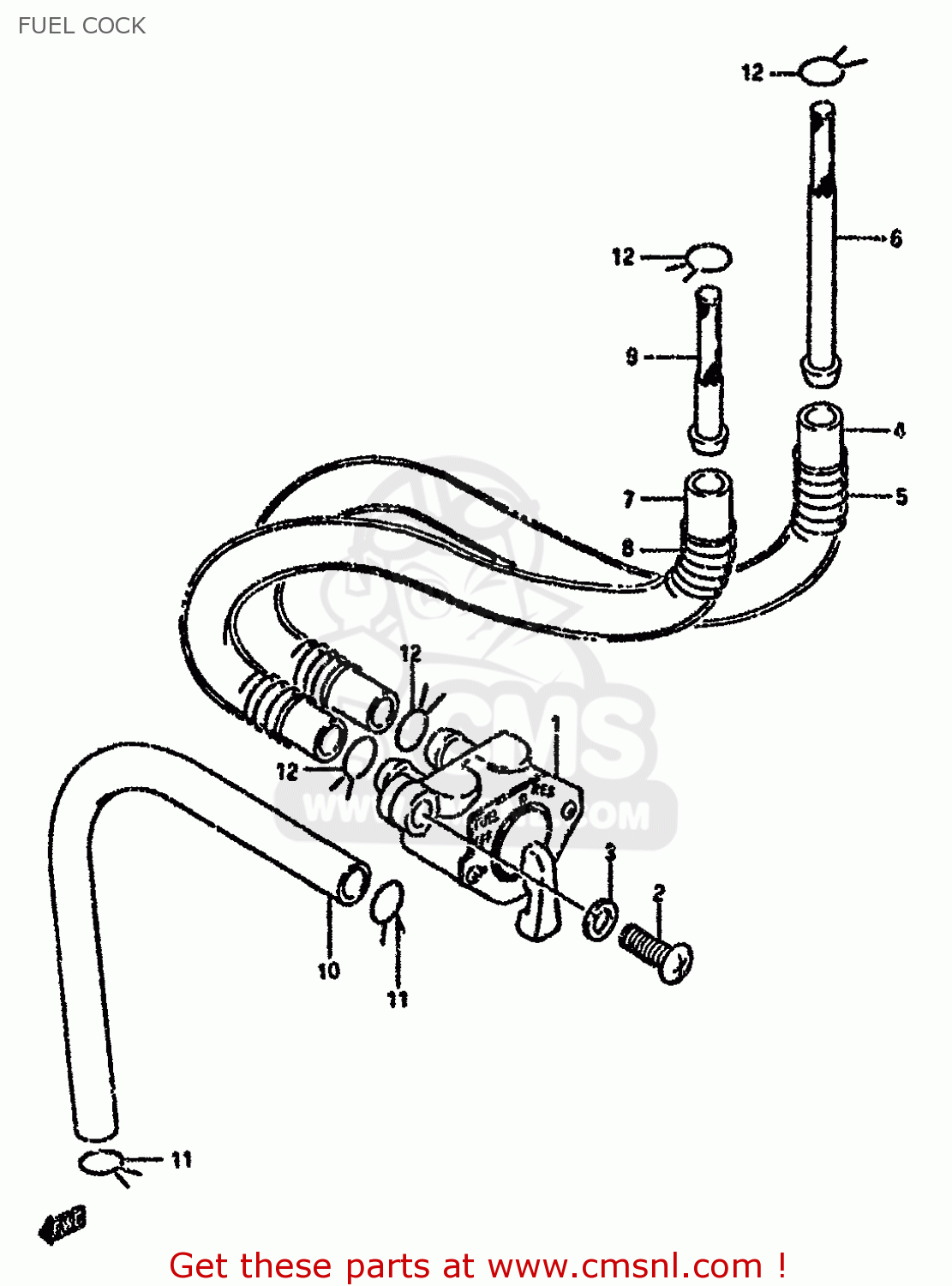

Fuel cock diagram RG80 1988 (J) FRANCE GERMANY (E04 E22)

FUEL COCK RG80 1988 (J) FRANCE GERMANY (E04 E22)

FUEL COCK RG80 1988 (J) FRANCE GERMANY (E04 E22)

prices are in EUR

ref

part #

description

quantity

1

4430036A10
ref: 1

COCK ASSY,FUEL

€ 45.50

2

0211205167
ref: 2

SCREW

€ 2.50

3

0832101057
ref: 3

WASHER,LOCK

€ 2.00

4

0935270103600
ref: 4

HOSE(7X10.2X600)

€ 8.00

5

0944013043
ref: 5

SPRING

€ 14.50

6

4432216700
ref: 6

FILTER,FUEL

€ 4.00

7

0934307174
ref: 7

HOSE 7X10.2X210

€ 7.50

8

0944013016
ref: 8

SPRING

€ 14.50

9

4432227001
ref: 9

FILTER,FUEL

€ 4.50

10

0935250823600
ref: 10

HOSE(5X8.2X600)

€ 13.00

11

0940108402
ref: 11

CLIP

€ 1.50

12

0940110410
ref: 12

CLIP

€ 1.50
