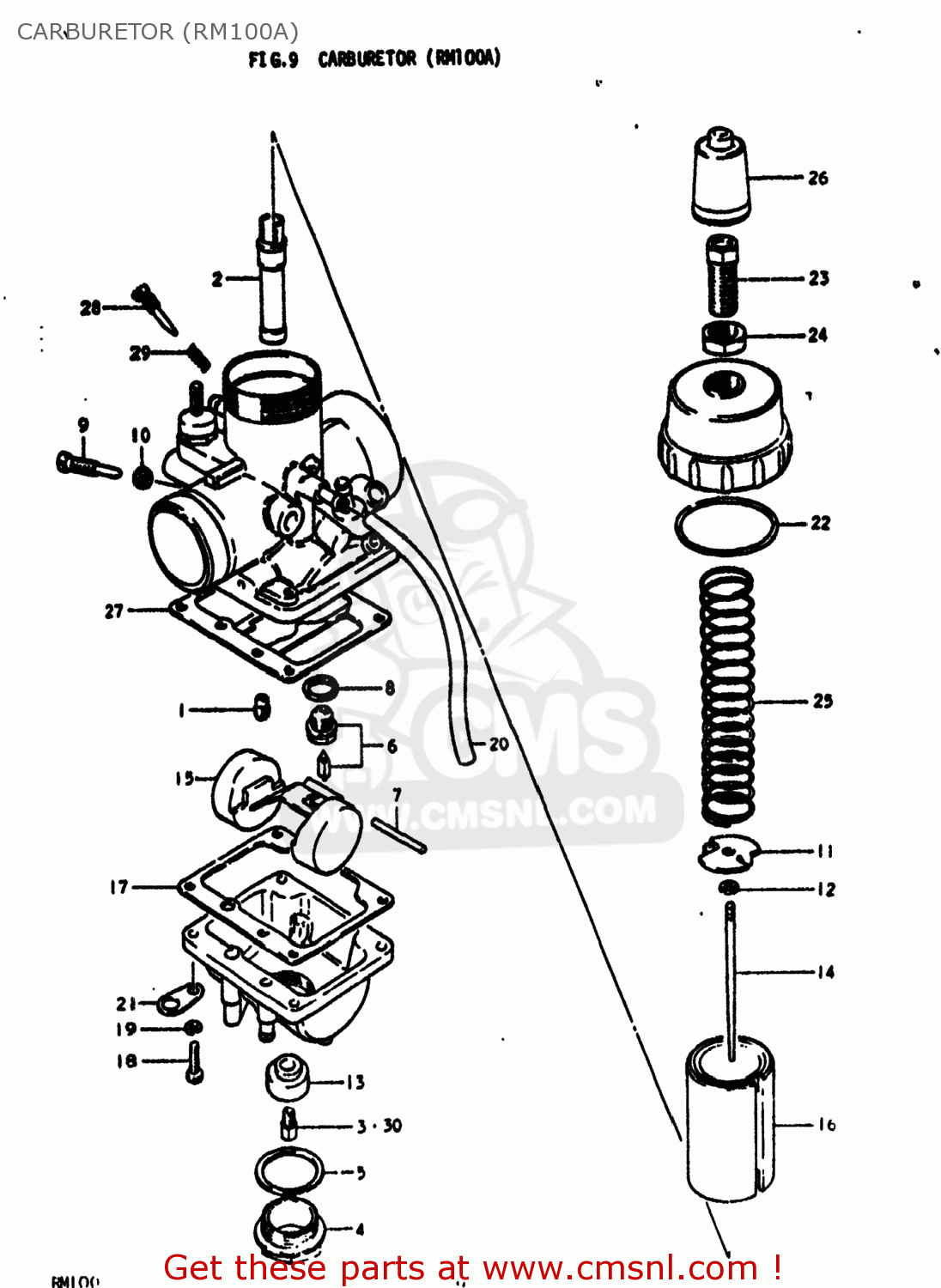

CARBURETOR (RM100A)

ref

part #

description

quantity

0

1320041600
ref: 0

CARBURETOR ASSEMBLY

€ 83.00

1

0949235004
ref: 1

JET,PILOT(35)

€ 7.50

2

0949400169
ref: 2

JET,NEEDLE

€ 0.00

3

0949132002
ref: 3

JET,MAIN(160)

€ 6.50

4

1324728310
ref: 4

PLUG

€ 0.00

5

1324928310
ref: 5

GASKET,DRAIN PLUG (MCA)

€ 2.00

6

1337029700
ref: 6

VALVE ASSEMBLY,NEEDLE

€ 26.50

7

1325435013
ref: 7
13254-01010

PIN,FLOAT

€ 3.00

8-1

1339228310
ref: 8-1

GASKET

€ 1.00

8-2

1366216510
ref: 8-2

NUT, STOP SCREW

€ 3.50

9

1326715110
ref: 9
13267-40230

ADJUSTER

€ 7.50

10

1366216510
ref: 10

NUT, STOP SCREW

€ 3.50

11

1358128010
ref: 11

SEAT,THROTTLE VALVE SPRING

€ 6.50

12

1339410010
ref: 12

CLIP

€ 4.50

13

1333128710
ref: 13

RING

€ 8.50

14

1338328700
ref: 14

NEEDLE JET

€ 9.00

15

1325228310
ref: 15

FLOAT

€ 20.50

16

1355134011
ref: 16

VALVE,THROTTLE

€ 16.50

17

1325128700
ref: 17

GASKET,FLOAT CHAMBER

€ 4.00

18

0211104168
ref: 18
02112-0416A

SCREW

€ 1.00

19

0832121048
ref: 19
08321-0104A

LOCK WASHER

€ 2.00

20

1368430010
ref: 20
13684-40A00

HOSE

€ 7.50

21

1369330010
ref: 21

PLATE

€ 4.00

22

1329534600
ref: 22

O-RING

€ 3.00

23

1357731010
ref: 23

ADJUSTER,CABLE

€ 7.00

24

1366131010
ref: 24

NUT,CABLE ADJUSTER LOCK

€ 2.50

25

1357328310
ref: 25

SPRING

€ 10.00

26

1368131010
ref: 26

CAP

€ 9.00

27

1325928310
ref: 27

PLATE

€ 0.00

28

1326915010
ref: 28

SCREW,PILOT AIR

€ 10.50

29

1326801010
ref: 29

SPRING

€ 3.50

30-1

0949129002
ref: 30-1

JET,MAIN(145)

€ 8.00

30-2

0949130003
ref: 30-2
09491-30017

JET

€ 12.00

30-3

0949134002
ref: 30-3

JET,MAIN(170)

€ 7.00

30-4

0949135003
ref: 30-4

JET,MAIN

€ 7.00

30-5

0949136003
ref: 30-5
09491-36006

JET

€ 15.00

all assemblies
