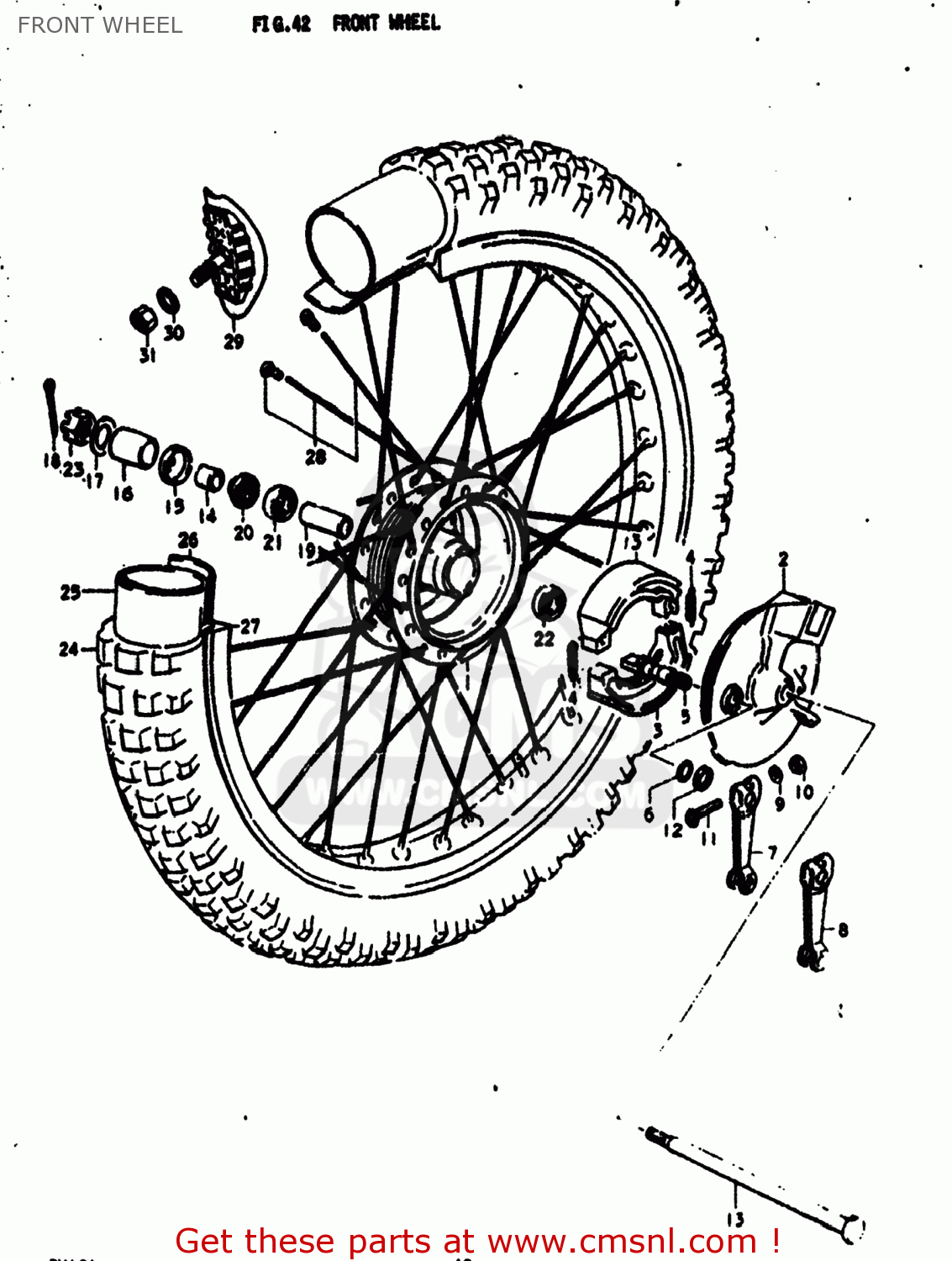

FRONT WHEEL

ref

part #

description

quantity

1

5411028301
ref: 1
54110-28303

HUB,FRONT

€ 90.50

2-1

5421028302
ref: 2-1

PANEL,FRONT HUB

€ 40.50

2-2

5421041610
ref: 2-2
54210-41611

PANEL,FRONT HUB

€ 0.00

3

5441001005
ref: 3
54400-35860

SHOE,BRAKE

€ 39.00

4

0944307001
ref: 4
09443-07025

SPRING(L:34)

€ 2.50

5

5444101002
ref: 5

CAM,FR BRAKE

€ 19.50

6

0928012001
ref: 6

O RING(D:2.5,ID:11.4)

€ 2.50

7

5445103002
ref: 7

LEVER,FR BRAKE CAM

€ 10.50

8

5445138000
ref: 8

LEVER,FRONT BRAKE CAM

€ 34.00

9

0832221068
ref: 9
08322-01067

WASHER

€ 2.00

10

0831011068
ref: 10
08310-00067

NUT

€ 2.50

11

0910006050
ref: 11
09100-06150

BOLT

€ 1.50

12

0916012011
ref: 12

WASHER(12.5X20X1)

€ 1.50

13-1

5471128303
ref: 13-1

AXLE,FRONT

€ 22.50

13-2

6471143000
ref: 13-2
64711-43001

AXLE,REAR

€ 28.50

14

0918012052
ref: 14

SPACER

€ 0.00

15

5489225500
ref: 15

DUST SEAL,FRONT HUB DRUM

€ 2.50

16

0918012064
ref: 16

SPACER

€ 3.00

17

0832211128
ref: 17
08322-01127

WASHER

€ 2.00

18

0411130308
ref: 18
04111-3030A

COTTER PIN

€ 1.50

19

0916012041
ref: 19

WASHER

€ 2.00

20

0928418002
ref: 20

OIL SEAL

€ 4.50

21

0811362010
ref: 21
08113-62017

BEARING

€ 11.00

22

0814362010
ref: 22
08143-62017

BEARING, LH

€ 11.50

23

0831431128
ref: 23
08314-3112A

NUT 12MM

€ 2.00

24-1

5510016511
ref: 24-1
55100-14230

TIRE,FRONT

€ 0.00

24-2

5510041310
ref: 24-2

TIRE,FRONT

€ 36.00

24-3

5510041311
ref: 24-3

TIRE,FRONT

€ 0.00

25

5520016510
ref: 25

TUBE

€ 32.50

26

5526116510
ref: 26
55261-14540

PROTECTOR,WHEEL,INNER

€ 5.00

27-1

5531141020
ref: 27-1
55311-28322

RIM,FRONT WHEEL

€ 83.00

27-2

5531128322
ref: 27-2

RIM,FRONT WHEEL

€ 83.00

28

5530028850
ref: 28
55320-28700

SPOKE SET,FRONT

€ 48.50

29-1

6527030000
ref: 29-1
65270-43D00

STOPPER,BEAD

€ 30.50

29-2

6527030001
ref: 29-2
65270-43D00

STOPPER,BEAD

€ 30.50

30

0832211088
ref: 30
08322-01087

WASHER

€ 2.00

31-1

0915908016
ref: 31-1

NUT

€ 2.00

31-2

0831012088
ref: 31-2
08310-00087

NUT

€ 2.00
