GEAR SHIFTING (RM100A)
RM100 1978 (C) USA (E03)

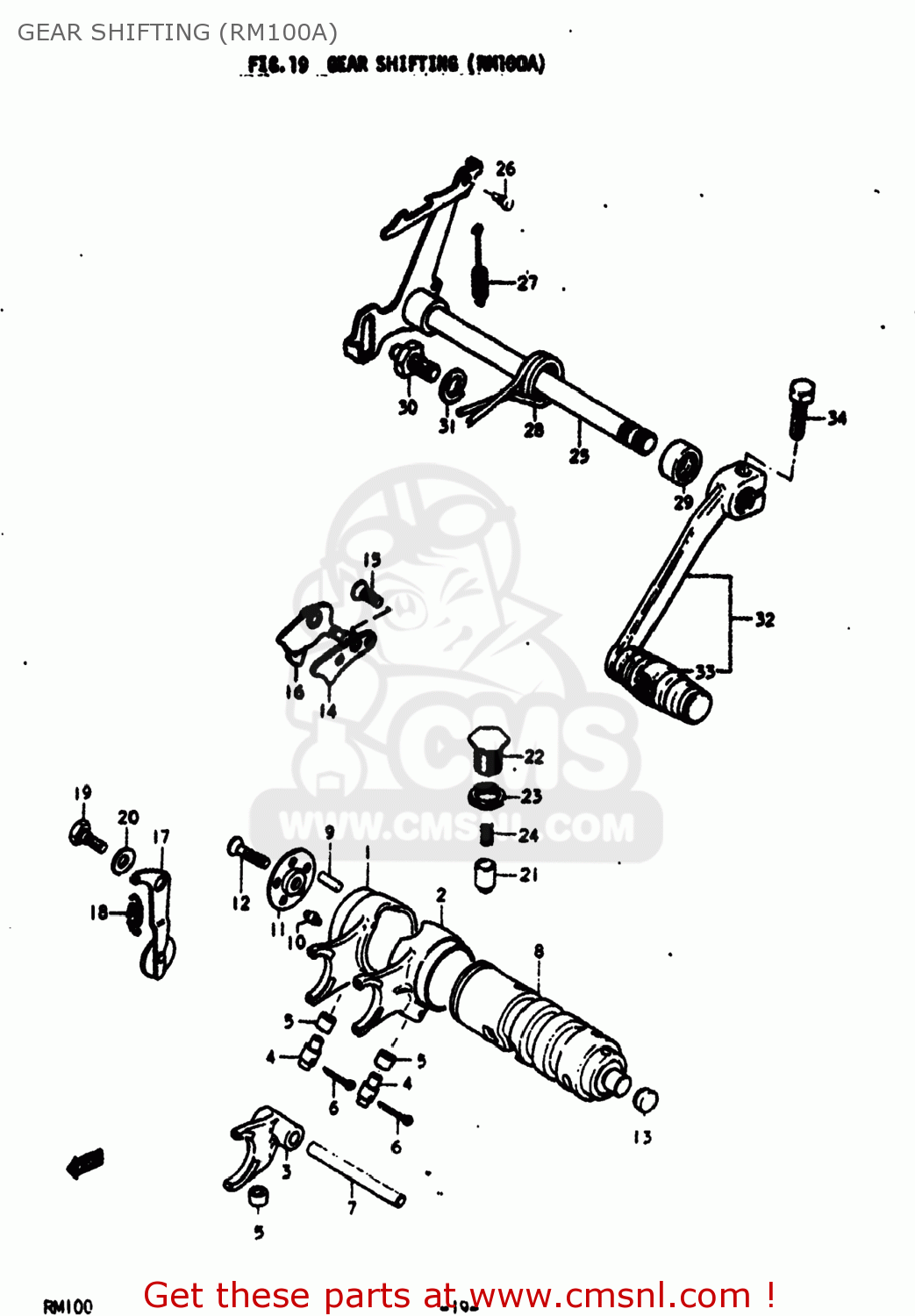

Gear shifting (rm100a) diagram RM100 1978 (C) USA (E03)
GEAR SHIFTING (RM100A) RM100 1978 (C) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2521128300
ref: 1
FORK,GEAR SHIFT NO.1
€ 30.50
2
2522128001
ref: 2
25221-28002
FORK,GEAR SHIFT NO.2
€ 25.00
3
2523128001
ref: 3
FORK,GEAR SHIFT NO.3
€ 28.50
4
0920910002
ref: 4
PIN
€ 8.50
5
0918006004
ref: 5
09180-06086
SPACER
€ 2.50
6
0411125208
ref: 6
04111-2520A
PIN 25X20
€ 2.00
7
2541105100
ref: 7
SHAFT,GEAR SHIFT FORK
€ 5.50
8
2531028701
ref: 8
CAM,GEAR SHIFT
€ 30.50
9
0926104002
ref: 9
ROLLER(4X13.8)
€ 1.50
10
0920904012
ref: 10
PIN
€ 2.50
11
2532228030
ref: 11
RETAINER,GEAR SHIFT CAM DR PIN
€ 6.50
12
0212206208
ref: 12
02122-0620A
SCREW
€ 2.00
13
0924312002
ref: 13
PLUG
€ 1.50
14
2534012101
ref: 14
GUIDE,GEAR SHIFT CAM
€ 11.50
15
0212206168
ref: 15
02122-06167
SCREW
€ 2.00
16
2537012101
ref: 16
PAWL,GEAR SHIFT CAM STOPPER
€ 5.50
17
2535028001
ref: 17
STOPPER,GEAR SHIFT CAM
€ 12.00
18
0944307014
ref: 18
SPRING
€ 2.00
19
0911106003
ref: 19
BOLT(6X16.1)
€ 1.50
20
0916006022
ref: 20
WASHER(6.5X16X2.3)
€ 1.50
21
2535128700
ref: 21
STOPPER,GEAR SHIFTING
€ 6.50
22
2535228700
ref: 22
HOLDER,SHIFTING CAM STOPPER
€ 7.00
23
0916814004
ref: 23
GASKET(14X19.2X2) (NAS)
€ 2.50
24
0944005017
ref: 24
SPRING
€ 1.50
25
2551028300
ref: 25
25510-283V0
SHAFT,GEAR SHIFT
€ 61.00
26
0920907012
ref: 26
PIN
€ 1.50
27
0944306008
ref: 27
SPRING
€ 2.00
28
0944426008
ref: 28
SPRING
€ 4.50
29
0928512002
ref: 29
09285-12006
OIL SEAL
€ 7.00
30
2567119000
ref: 30
STOPPER,GEAR SHIFT ARM
€ 5.50
31
0832121108
ref: 31
08321-01107
LOCK WASHER
€ 2.00
32
2560016500
ref: 32
25600-16520
LEVER ASSEMBLY,GEAR SHIFTING
€ 26.00
33
2565216500
ref: 33
RUBBER,GEAR SHIFT PEDAL
€ 4.00
34
0111206208
ref: 34
01500-06207
BOLT
€ 2.00
