FRONT FORK (RM100A
RM100 1978 (C) USA (E03)

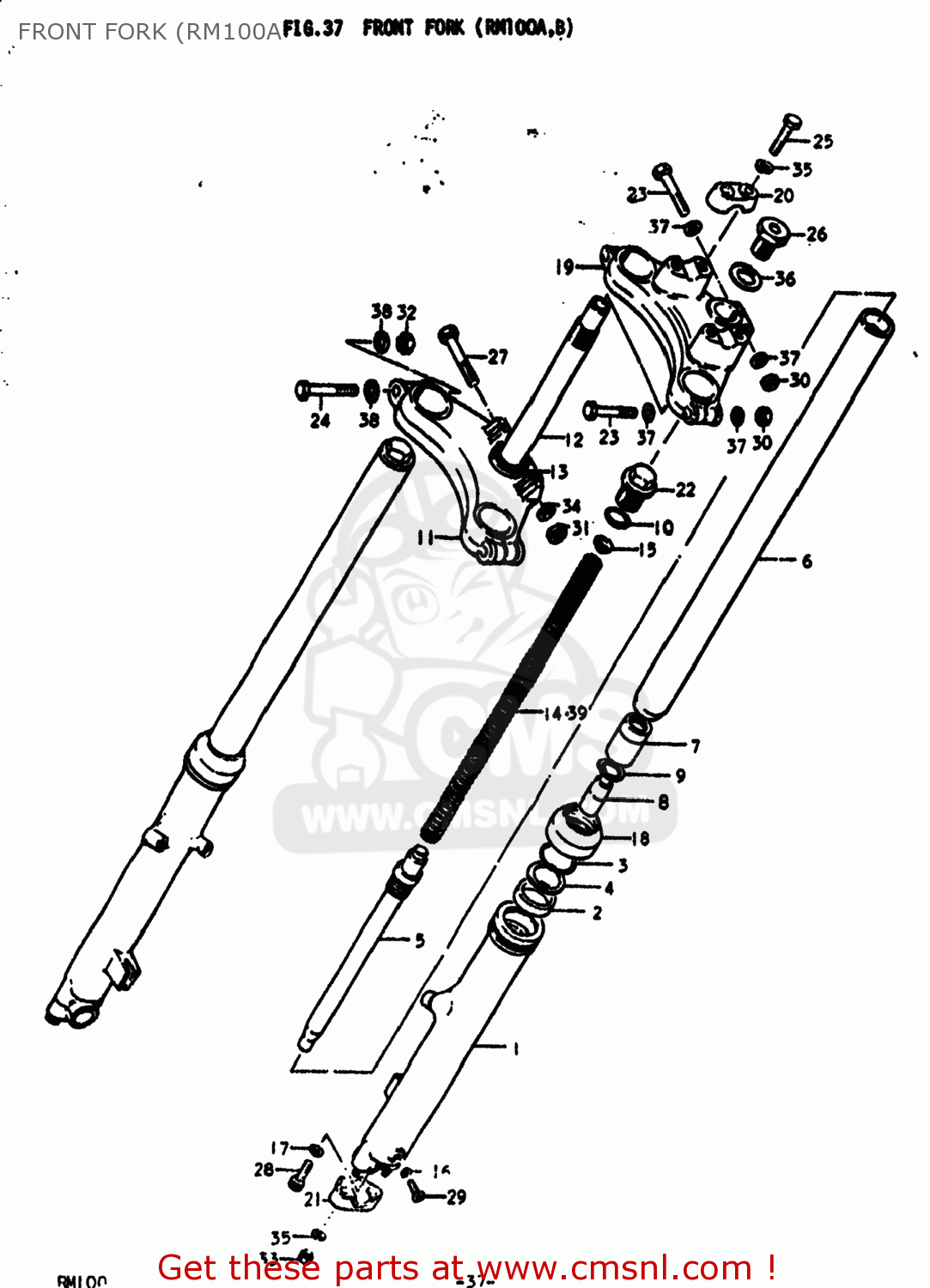

Front fork (rm100a diagram RM100 1978 (C) USA (E03)
FRONT FORK (RM100A RM100 1978 (C) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
0-1
5110041600
ref: 0-1
51100-41602
DAMPER SET
€ 0.00
0-2
5110041601
ref: 0-2
51100-41602
DAMPER SET
€ 0.00
0-3
5110041602
ref: 0-3
DAMPER SET
€ 0.00
1
5114036011
ref: 1
TUBE,OUTER,LEFT
€ 87.00
2
5115308011
ref: 2
SEAL,OIL
€ 10.50
3
5115636010
ref: 3
RING,SNAP
€ 5.50
4
5115836010
ref: 4
WASHER,FRONT FORK
€ 4.00
5
5114628312
ref: 5
CYLINDER,FRONT FORK
€ 30.00
6
5111128311
ref: 6
TUBE,FORK,INNER
€ 57.50
7
5111228311
ref: 7
PISTON
€ 0.00
8
5119528311
ref: 8
PIECE,OIL LOCK
€ 6.50
9
5111828312
ref: 9
SNAP RING
€ 2.50
10
5118125010
ref: 10
51181-29400
O-RING,FORK INNER TUBE
€ 2.50
11
5141141600
ref: 11
STEM,STEERING
€ 0.00
12
5140132110
ref: 12
STEM,STEERING
€ 59.50
13
5162133001
ref: 13
RACE,STEERING OUTER LWR
€ 10.00
14-1
5117141600
ref: 14-1
SPRING
€ 9.50
14-2
5117141601
ref: 14-2
SPRING
€ 0.00
14-3
5117141602
ref: 14-3
SPRING
€ 15.00
15
5117225210
ref: 15
GUIDE,SPRING
€ 0.00
16
5118303010
ref: 16
GASKET,DRAIN,PLUG (NAS)
€ 3.00
17-1
5114834010
ref: 17-1
51148-36011
GASKET
€ 4.00
17-2
5114836011
ref: 17-2
GASKET (NAS)
€ 4.00
18
5117325010
ref: 18
SEAL,DUST
€ 10.00
19
5131141600
ref: 19
HEAD,STEERING STEM
€ 0.00
20
5621127100
ref: 20
HOLDER,HANDLEBAR
€ 12.50
21
5113216511
ref: 21
HOLDER,AXLE
€ 11.50
22
5135125011
ref: 22
BOLT,FR FORK
€ 16.50
23
0112208508
ref: 23
01500-08507
Bolt 8X50
€ 3.00
24
0112112558
ref: 24
01500-1255B
BOLT
€ 3.00
25
0122108357
ref: 25
01204-08357
Bolt
€ 3.50
26
5135128310
ref: 26
CAP
€ 6.50
27
0112210608
ref: 27
01500-1060A
BOLT
€ 3.50
28
5114731011
ref: 28
BOLT
€ 3.50
29
0211104087
ref: 29
02112-04087
SCREW
€ 1.50
30
0831221088
ref: 30
08310-00087
NUT
€ 2.00
31
0831212108
ref: 31
08310-00107
NUT
€ 2.50
32
0831211128
ref: 32
09140-12039
NUT
€ 3.00
33
0914008005
ref: 33
09140-08017
NUT (8MM)
€ 1.50
34
0832121108
ref: 34
08321-01107
LOCK WASHER
€ 2.00
35
0832121088
ref: 35
08321-01087
LOCK WASHER
€ 2.00
36
5135628310
ref: 36
WASHER,STEM HEAD
€ 2.50
37
0832221088
ref: 37
08322-01087
WASHER
€ 2.00
38
0832211128
ref: 38
08322-01127
WASHER
€ 2.00
39
5117141710
ref: 39
SPRING
€ 0.00
39
5117141710
ref: 39
SPRING
€ 0.00
