CARBURETOR
RM125 1981 (X) USA (E03)

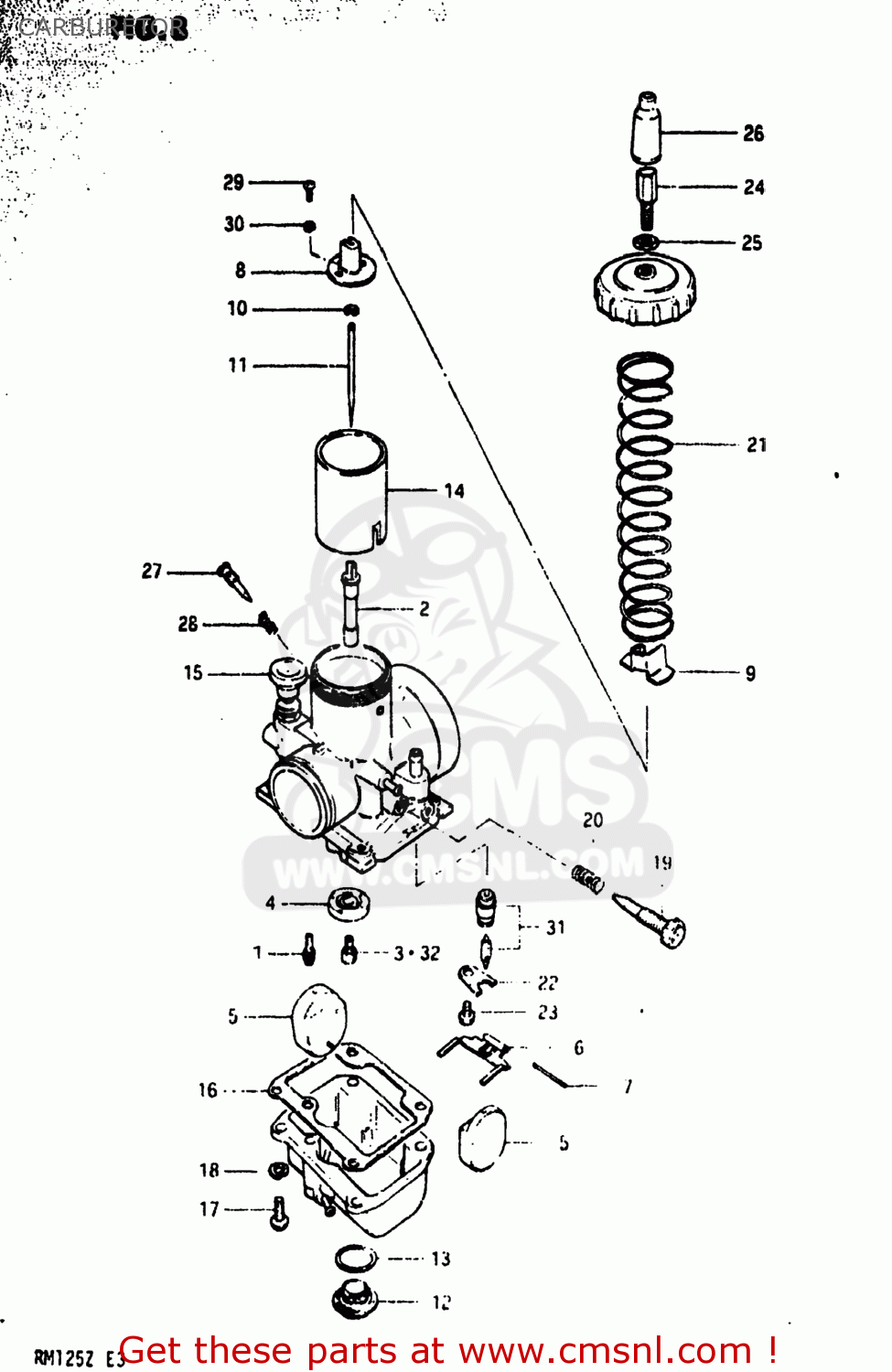

Carburetor diagram RM125 1981 (X) USA (E03)
CARBURETOR RM125 1981 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
0-1
1320014102
ref: 0-1
CARBURETOR ASSEMBLY
€ 144.50
0-2
1320014110
ref: 0-2
CARBURETOR ASSEMBLY
€ 380.50
1
0949230003
ref: 1
09492-30006
JET
€ 8.50
2
0949400318
ref: 2
JET,NEEDLE
€ 19.00
3-1
0949150003
ref: 3-1
09491-50008
JET
€ 12.50
3-2
0949154001
ref: 3-2
09491-54002
JET
€ 11.50
4
1333140200
ref: 4
RING,MAIN JET FIXING
€ 8.00
5
1325216600
ref: 5
FLOAT
€ 17.50
6
1325314100
ref: 6
ARM,FLOAT
€ 6.50
7
1325401010
ref: 7
PIN,FLOAT
€ 3.00
8
1358140200
ref: 8
CONNECTOR
€ 7.00
9
1362940200
ref: 9
COVER,HOLDER
€ 4.00
10
1339410010
ref: 10
CLIP
€ 4.50
11
1338314100
ref: 11
NEEDLE,JET
€ 14.50
12
1324740200
ref: 12
PLUG
€ 9.50
13
0928020003
ref: 13
O RING(D:1.5,ID:19.5)
€ 2.50
14
1355114110
ref: 14
VALVE,THROTTLE
€ 80.00
15-1
1341014100
ref: 15-1
VALVE ASSEMBLY,STARTER
€ 38.00
15-2
1341014110
ref: 15-2
13410-14100
VALVE ASSEMBLY,STARTER
€ 38.00
16
1325140230
ref: 16
GASKET,FLOAT CAHMBER (NAS)
€ 8.50
17
0211205168
ref: 17
02112-05167
SCREW
€ 2.50
18
0832121058
ref: 18
08321-0105A
LOCK WASHER
€ 2.00
19
1326740230
ref: 19
SCREW,THROTTLE STOP
€ 7.50
20
1326893100
ref: 20
13268-03110
SPRING
€ 3.50
21
1357341610
ref: 21
SPRING,THROTTLE VALVE RETURN
€ 8.50
22
1337339110
ref: 22
PLATE
€ 6.50
23
0211204068
ref: 23
02112-0406B
SCREW 4X6
€ 2.00
24
1357741612
ref: 24
ADJUSTER,CABLE
€ 8.00
25
1366116600
ref: 25
NUT
€ 5.00
26
1368133010
ref: 26
CAP,CABLE ADJUSTER
€ 8.00
27
1326915010
ref: 27
SCREW,PILOT AIR
€ 10.50
28
1326801010
ref: 28
SPRING
€ 3.50
29
0211203088
ref: 29
02112-03087
SCREW
€ 1.50
30
0832121038
ref: 30
09162-03001
LOCK WASHER
€ 1.50
31-1
1337040230
ref: 31-1
13370-40600
VALVE ASSEMBLY,NEEDLE
€ 48.50
31-2
1337040600
ref: 31-2
VALVE ASSY,NEEDLE
€ 48.50
32-1
0949142001
ref: 32-1
09491-42005
JET,MAIN (210)
€ 11.00
32-2
0949144001
ref: 32-2
09491-44007
JET,MAIN (220)
€ 9.50
32-3
0949146001
ref: 32-3
JET,MAIN(230)
€ 6.50
32-4
0949148001
ref: 32-4
09491-48003
JET
€ 13.00
32-5
0949152001
ref: 32-5
09491-52006
JET
€ 7.50
