FRONT WHEEL
RM125 1981 (X) USA (E03)

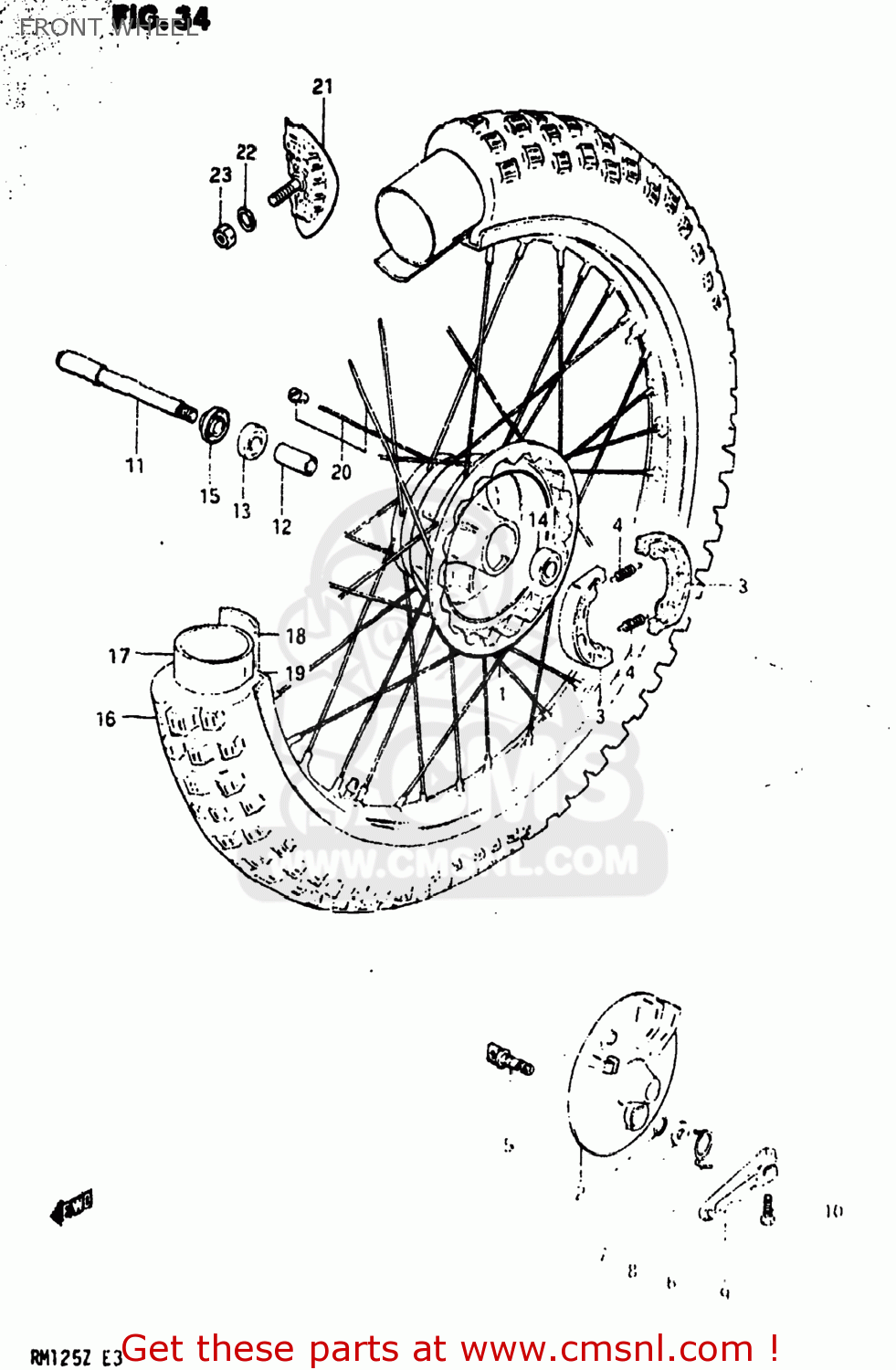

Front wheel diagram RM125 1981 (X) USA (E03)
FRONT WHEEL RM125 1981 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5411014102
ref: 1
HUB,FRONT
€ 151.00
2-1
5421014101
ref: 2-1
54210-14110
PANEL,FRONT HUB
€ 55.50
2-2
5421014110
ref: 2-2
PANEL,FRONT HUB
€ 55.50
3
5441014100
ref: 3
64400-40810
SHOE,BRAKE
€ 21.50
4
0944308021
ref: 4
SPRING
€ 9.00
5-1
5444114100
ref: 5-1
54441-14101
CAM,FRONT BRAKE
€ 16.00
5-2
5444114101
ref: 5-2
CAM,FR BRAKE
€ 16.00
6
0944832007
ref: 6
SPRING
€ 8.00
7
0928012001
ref: 7
O RING(D:2.5,ID:11.4)
€ 2.50
8
0916012011
ref: 8
WASHER(12.5X20X1)
€ 1.50
9
5445114100
ref: 9
54451-14101
LEVER,FRONT BRAKE CAM
€ 35.50
10
0110706258
ref: 10
01500-06257
BOLT
€ 2.00
11
5471114202
ref: 11
54711-14500
AXLE,FRONT
€ 46.50
12
5473014100
ref: 12
SPACER,FRONT HUB BEARING
€ 23.00
13
0812362027
ref: 13
BEARING
€ 14.50
14
0814362027
ref: 14
BEARING
€ 12.50
15
5474014200
ref: 15
SPACER,FRONT AXLE,RIGHT
€ 8.50
16-1
5510014200
ref: 16-1
55100-14230
TIRE,FRONT
€ 0.00
16-2
5510014230
ref: 16-2
TIRE,FRONT
€ 0.00
17-1
5520028330
ref: 17-1
55200-16510
TUBE,INNER
€ 32.50
17-2
5520016510
ref: 17-2
TUBE
€ 32.50
18-1
5526128330
ref: 18-1
55261-14540
PROTECTOR,WHEEL,INNER
€ 5.00
18-2
5526116510
ref: 18-2
55261-14540
PROTECTOR,WHEEL,INNER
€ 5.00
19
5531114100
ref: 19
55311-14500
RIM,FRONT WHEEL
€ 124.50
20
5532014110
ref: 20
55320-14111
SPOKE SET,FRONT
€ 41.00
21-1
6527046910
ref: 21-1
65270-43D00
STOPPER,BEAD
€ 30.50
21-2
6527014300
ref: 21-2
STOPPER,BEAD
€ 26.00
22
0832211088
ref: 22
08322-01087
WASHER
€ 2.00
23
0831022088
ref: 23
08310-00087
NUT 8MM
€ 2.00
