CLUTCH
RM125 1981 (X) USA (E03)

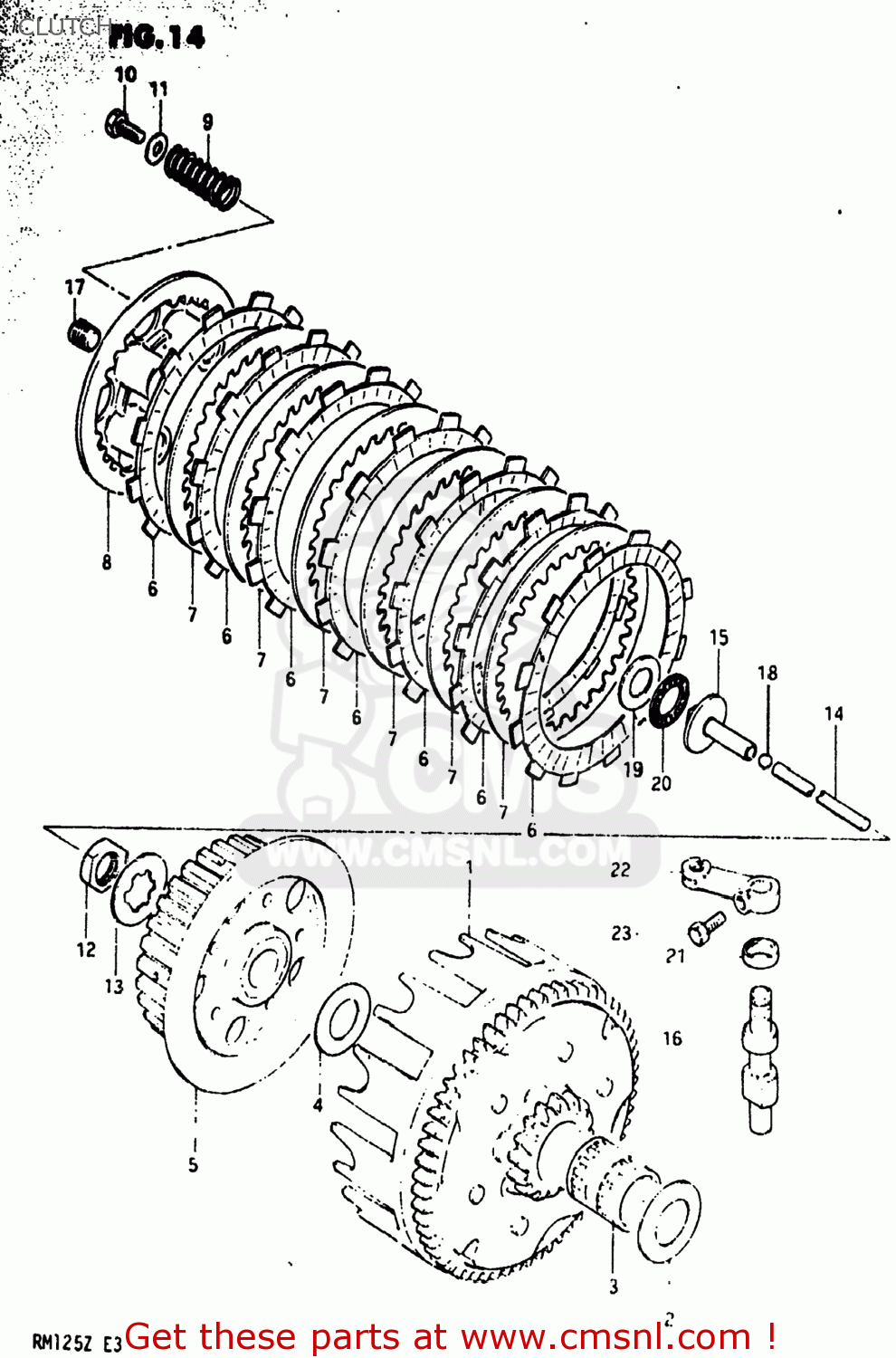

Clutch diagram RM125 1981 (X) USA (E03)
CLUTCH RM125 1981 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
2120014101
ref: 1-1
21200-14103
GEAR ASSEMBLY,PRIMARY DRIVE
€ 437.00
1-2
2120014102
ref: 1-2
21200-14103
GEAR ASSEMBLY,PRIMARY DRIVE
€ 437.00
2
0821120323
ref: 2
WASHER
€ 2.50
3
0926320023
ref: 3
BEARING(20X25X26)
€ 15.00
4
0821117302
ref: 4
WASHER
€ 2.50
5
2141014101
ref: 5
21410-14103
HUB,CLUTCH SLEEVE
€ 258.00
6
2144128301
ref: 6
21441-13A01
PLATE,CLUTCH DRIVE
€ 8.50
7
2145141700
ref: 7
21451-19A00
PLATE,CLUTCH DRIVEN
€ 4.50
8-1
2146214101
ref: 8-1
21462-14103
DISC,CLUTCH PRESSURE
€ 16.00
8-2
2146214102
ref: 8-2
21462-14103
PLATE,CLUTCH PRESSURE
€ 16.00
9
0944015013
ref: 9
SPRING
€ 4.00
10
0910005002
ref: 10
BOLT(5X16)
€ 2.00
11
0916005017
ref: 11
09160-05043
WASHER (5.5X16X1.2)
€ 2.50
12
0914016001
ref: 12
NUT
€ 4.50
13
0916717002
ref: 13
WASHER,LOCK
€ 2.00
14
2311114100
ref: 14
23111-14101
ROD,CLUTCH PUSH
€ 9.00
15-1
2312114101
ref: 15-1
PIECE,CLUTCH PUSH
€ 16.50
15-2
2312114110
ref: 15-2
23121-14111
PIECE,CLUTCH PUSH
€ 12.00
16
2326114101
ref: 16
23261-14104
CAMSHAFT,CLUTCH RELEASE
€ 38.00
17
0913406001
ref: 17
09134-06010
SCREW
€ 3.00
18
0611107004
ref: 18
BALL
€ 1.50
19
0916015015
ref: 19
09160-15045
WASHER
€ 4.00
20
0926315003
ref: 20
BEARING(15X28X2)
€ 7.00
21
0928510002
ref: 21
09285-10004
OIL SEAL
€ 3.50
22
2327114101
ref: 22
23271-14103
ARM,CLUTCH RELEASE
€ 34.50
23
0110706168
ref: 23
01500-06167
BOLT, UPPER
€ 3.00
