CUSHION LEVER
RM125 1981 (X) USA (E03)

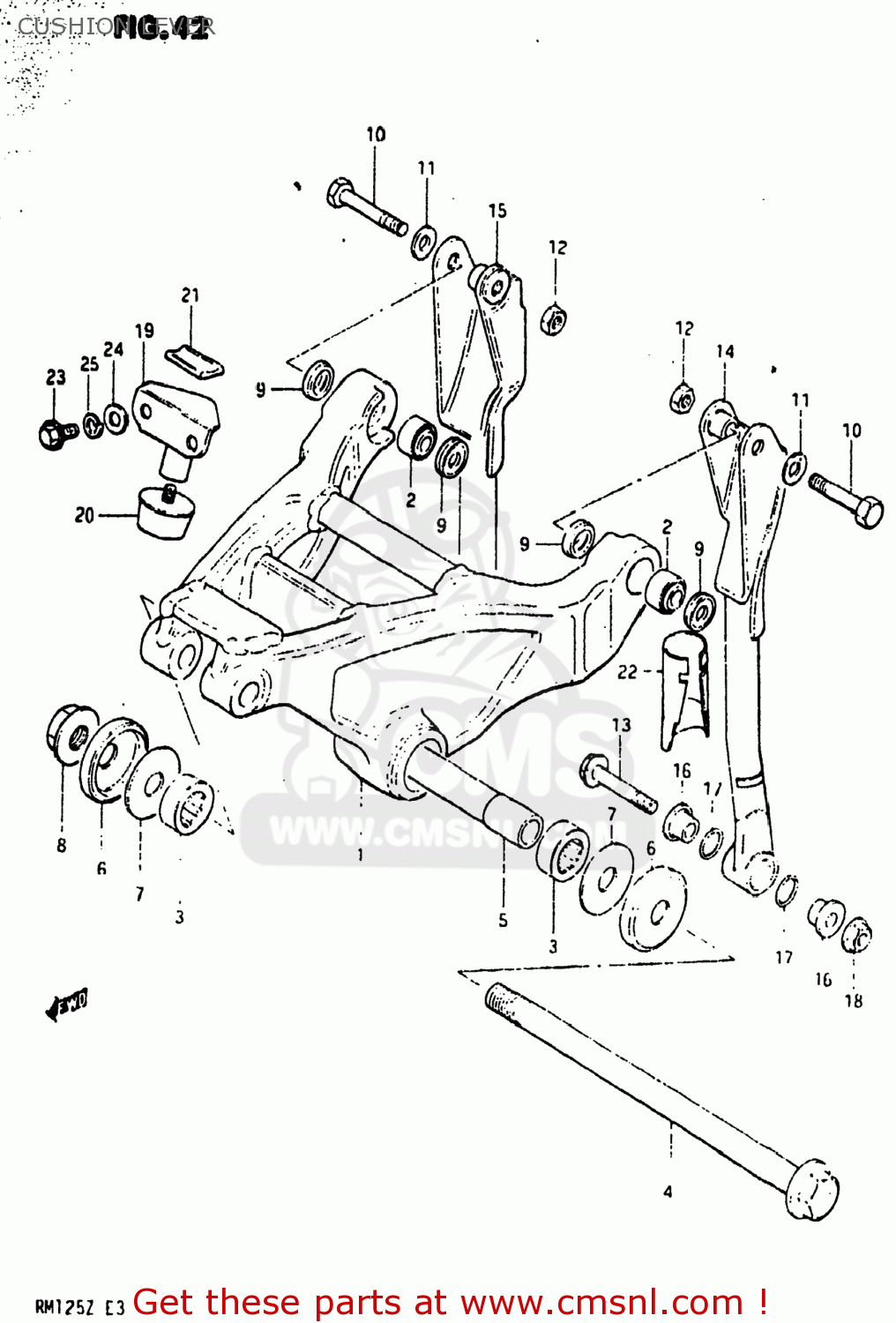

Cushion lever diagram RM125 1981 (X) USA (E03)
CUSHION LEVER RM125 1981 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
6260014811
ref: 1-1
62600-14812
LEVER SET,REAR CUSHION
€ 415.00
1-2
6260014812
ref: 1-2
LEVER SET,REAR CUSHION
€ 415.00
2
0926908001
ref: 2
BEARING(8X18X11)
€ 155.50
3-1
0926317018
ref: 3-1
BEARING(17X25X20)
€ 36.00
3-2
0926317019
ref: 3-2
BEARING(17X26X20)
€ 33.00
4
6262114104
ref: 4
62621-14105
SHAFT,REAR CUSHION LEVER
€ 16.50
5
6262314203
ref: 5
62623-16700
SPACER,REAR CUSHION LEVER
€ 53.00
6
6262414201
ref: 6
62624-14202
SEAL,REAR CUSHION LEVER
€ 5.00
7
0916012045
ref: 7
WASHER(12X35X2)
€ 3.50
8
0831931128
ref: 8
08319-3112A
NUT 12MM
€ 4.00
9
6433914100
ref: 9
DUST SEAL,RR CUSHION LOD UPR.
€ 8.00
10
0910008173
ref: 10
09103-08178
BOLT 8X38
€ 5.00
11
0832211088
ref: 11
08322-01087
WASHER
€ 2.00
12
0831022088
ref: 12
08310-00087
NUT 8MM
€ 2.00
13-1
0910308043
ref: 13-1
BOLT(8X45)
€ 4.50
13-2
0910308068
ref: 13-2
09103-08043
BOLT 8X45
€ 4.50
14-1
6264014105
ref: 14-1
ROD,REAR CUSHION LEVER
€ 30.50
14-2
6264014120
ref: 14-2
ROD,REAR CUSHION LEVER
€ 25.50
15-1
6265014105
ref: 15-1
BOLT,REAR CUSHION LEVER
€ 30.50
15-2
6265014120
ref: 15-2
BOLT,REAR CUSHION LEVER
€ 25.50
16
6231614100
ref: 16
SPACER,RR CUSHION ROD LWR
€ 12.00
17-1
0928013004
ref: 17-1
O RING(D:1.9,ID:13)
€ 2.50
17-2
6264720400
ref: 17-2
DUST SEAL,RR CUSHION LOD LWR
€ 1.50
18
0831931088
ref: 18
08319-3108A
NUT
€ 2.50
19
6266014103
ref: 19
STOPPER,TENSION
€ 9.00
20-1
6266614100
ref: 20-1
62666-14101
RUBBER,TENSION STOPPER
€ 9.50
20-2
6266614101
ref: 20-2
RUBBER,TENSION STOPPER
€ 9.50
21
6266914100
ref: 21
SUPPORTER, RUBBER
€ 5.50
22
6268114100
ref: 22
PROTECTOR,REAR CUSHION R
€ 10.00
23
0110706128
ref: 23
01500-06127
BOLT
€ 2.00
24
0832221068
ref: 24
08322-01067
WASHER
€ 2.00
25
0832121068
ref: 25
08321-01067
LOCK WASHER
€ 2.50
