AIR CLEANER
RM125 1984 (E) USA (E03)

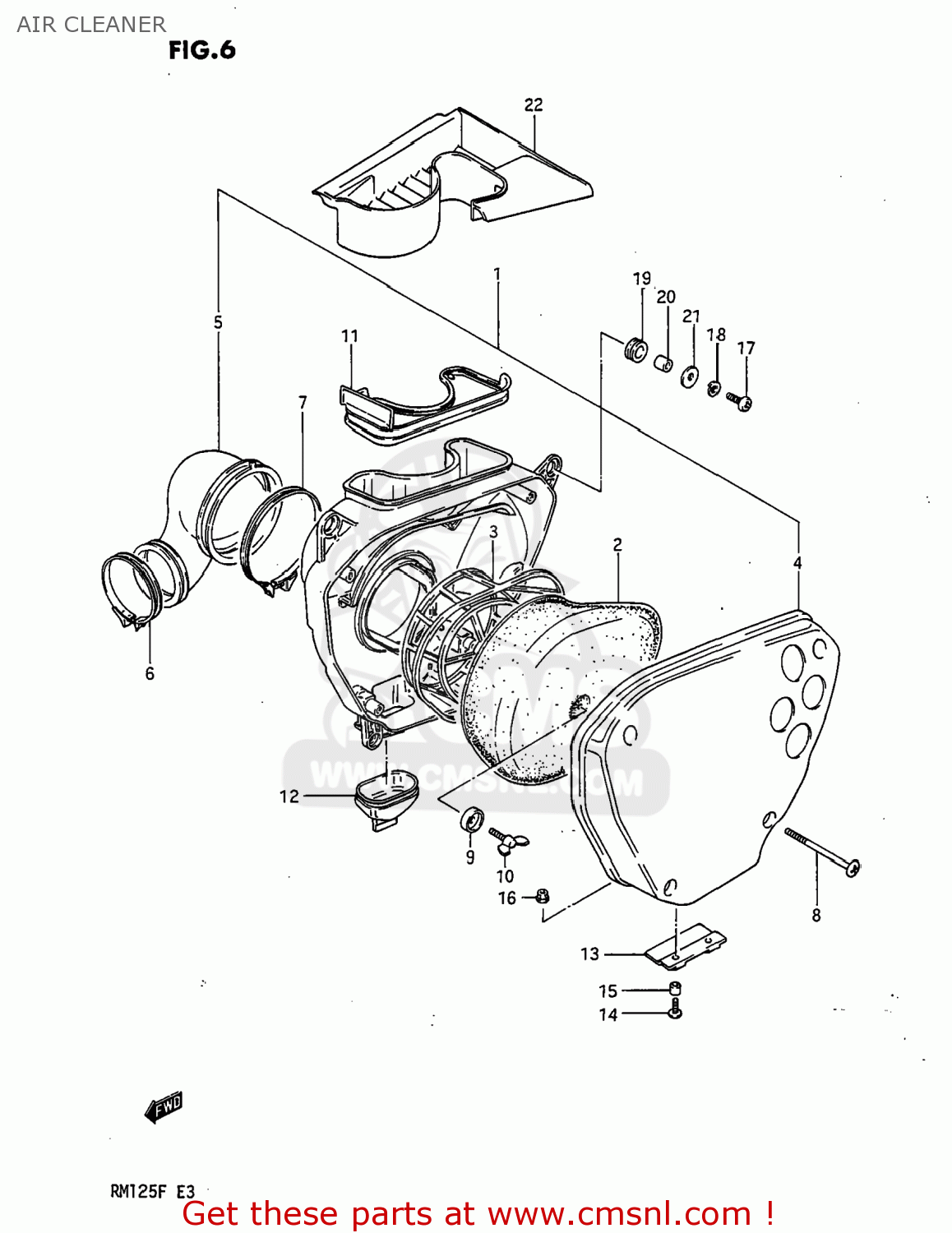

Air cleaner diagram RM125 1984 (E) USA (E03)
AIR CLEANER RM125 1984 (E) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1370014500
ref: 1
CLEANER ASSEMBLY,AIR
€ 152.50
2
1378014500
ref: 2
FILTER,AIR CLEANER
€ 46.50
3
1379114500
ref: 3
HOLDER,AIR CLEANER
€ 22.00
4
1374014500
ref: 4
CAP,AIR CLEANER
€ 24.00
5
1388114500
ref: 5
TUBE,AIR CLEANER OUTLET
€ 54.00
6
0940264306
ref: 6
09402-64203
CLAMP
€ 6.00
7
1382614500
ref: 7
CLAMP
€ 6.00
8
0214205755
ref: 8
SCREW
€ 3.00
9
1379616700
ref: 9
WASHER,FILTER HOLDER
€ 2.50
10
1383714500
ref: 10
13837-43B00
BOLT,AIR CLEANER
€ 2.00
11
1373514500
ref: 11
GUARD,MUD
€ 25.00
12
1387114500
ref: 12
TUBE,DRAIN
€ 4.50
13
1384514500
ref: 13
SHEET,AIR CLEANER
€ 8.00
14
0214204125
ref: 14
02142-0412A
SCREW
€ 1.50
15
1383814500
ref: 15
COLLAR
€ 0.00
16
0831616046
ref: 16
08316-1004B
NUT
€ 2.50
17
0211206165
ref: 17
02112-0616A
SCREW
€ 2.00
18
0832121065
ref: 18
08321-0106A
LOCK WASHER
€ 2.00
19
0932008007
ref: 19
09320-08021
CUSHION
€ 4.00
20
0918007005
ref: 20
09180-06259
SPACER (7X9X7)
€ 2.50
21
0916006007
ref: 21
09160-06084
WASHER
€ 2.00
22
1373814500
ref: 22
GUIDE,AIR CLEANER NO.2 MU
€ 15.00
