REAR SWINGING ARM
RM125 1984 (E) USA (E03)

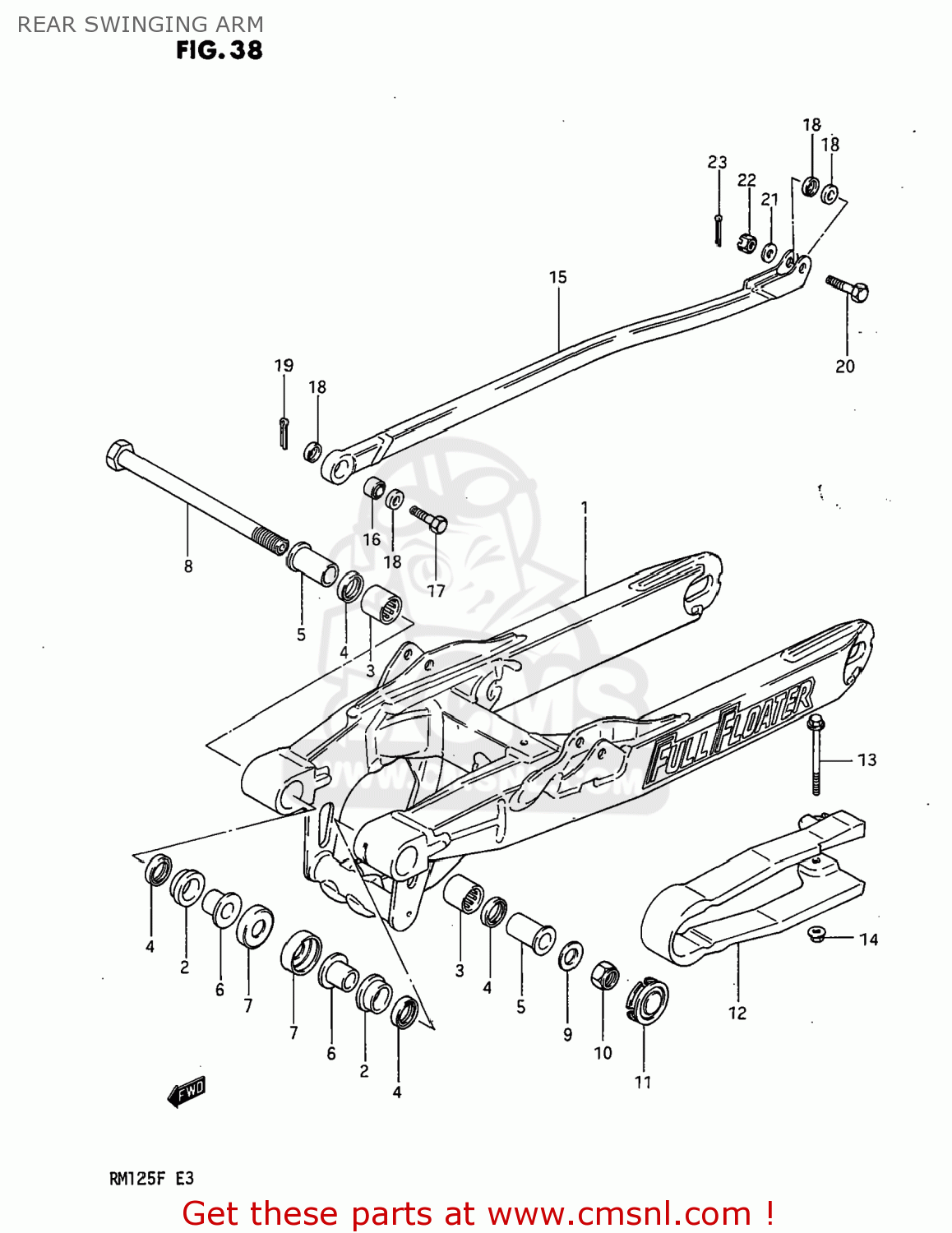

Rear swinging arm diagram RM125 1984 (E) USA (E03)
REAR SWINGING ARM RM125 1984 (E) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6100014500
ref: 1
SWING ARM ASSEMBLY,REAR
€ 419.50
2
6126114101
ref: 2
BUSH,RR SWINGINGARM PIVOT
€ 10.00
3
0926320041
ref: 3
BEARING(20X27X20)
€ 15.00
4
0928520005
ref: 4
09283-20031
OIL SEAL
€ 5.00
5
6125114100
ref: 5
SPACER,RR SWGARM PIVOT
€ 16.00
6
6125214100
ref: 6
SPACER,RR SWGARM PIVOT INNER
€ 12.50
7
6126240400
ref: 7
COVER,RR SWGARM DUST SEAL
€ 4.00
8
6121114500
ref: 8
SHAFT,REAR SWING ARM
€ 27.50
9
0916014027
ref: 9
WASHER(14.2X24X2.3)
€ 2.50
10
0915914013
ref: 10
09159-14019
NUT
€ 8.50
11
612221450019F
ref: 11
CAP
€ 3.00
12
6127314500
ref: 12
BUFFER,CHAIN TOUCH DEFENSE
€ 25.00
13
0151706708
ref: 13
01550-06707
BOLT (6X70)
€ 3.00
14
0831931068
ref: 14
08319-31067
NUT
€ 2.50
15
6430014840
ref: 15
64300-14500
LINK,REAR TORQUE
€ 89.50
16
6435240411
ref: 16
64352-40401
SPHERICAL BEARING,TORQUE
€ 69.50
17
0910108003
ref: 17
BOLT 8X28
€ 2.00
18
6433940410
ref: 18
6433940410
19
0411120158
ref: 19
04111-2015A
PIN
€ 1.50
20
0910108014
ref: 20
BOLT 8X29.5
€ 1.50
21
0832211088
ref: 21
08322-01087
WASHER
€ 2.00
22
0831441088
ref: 22
08314-4008B
NUT 8MM
€ 2.50
23
0411120208
ref: 23
04111-2020A
PIN 20X20
€ 1.50
