CLUTCH
RM125 1984 (E) USA (E03)

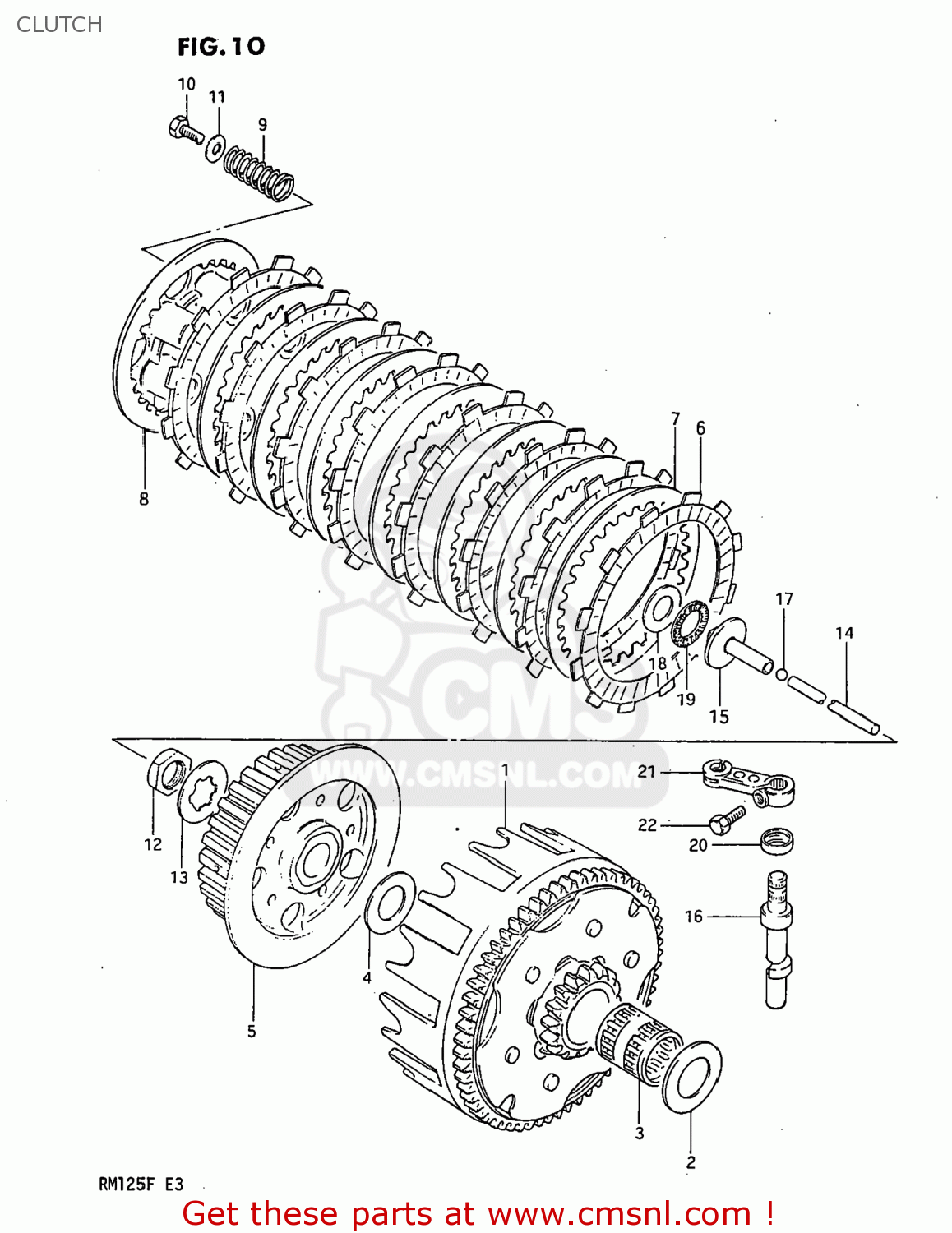

Clutch diagram RM125 1984 (E) USA (E03)
CLUTCH RM125 1984 (E) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2120014103
ref: 1
GEAR ASSEMBLY,PRIMARY DRIVE
€ 437.00
2
0821120321
ref: 2
09181-20223
WASHER,THRUST
€ 3.00
3
0926320023
ref: 3
BEARING(20X25X26)
€ 15.00
4
0821117302
ref: 4
WASHER
€ 2.50
5
2141014103
ref: 5
HUB,CLUTCH SLEEVE
€ 258.00
6-1
2144111900
ref: 6-1
21441-22A01
PLATE,CLUTCH DRIVE (MCA)
€ 11.00
6-2
2144113A00
ref: 6-2
21441-13A01
PLATE,CLUTCH DRIVE (NAS)
€ 8.50
7-1
2145111900
ref: 7-1
21451-01B40
PLATE,CLUTCH DRIVEN (NAS)
€ 4.50
7-2
2145128000
ref: 7-2
21451-19A00
PLATE,CLUTCH DRIVEN (NAS)
€ 4.50
8
2146214102
ref: 8
21462-14103
PLATE,CLUTCH PRESSURE
€ 16.00
9
0944015014
ref: 9
SPRING
€ 4.00
10
0910005002
ref: 10
BOLT(5X16)
€ 2.00
11
0916005017
ref: 11
09160-05043
WASHER (5.5X16X1.2)
€ 2.50
12
0914016001
ref: 12
NUT
€ 4.50
13
0916717002
ref: 13
WASHER,LOCK
€ 2.00
14
2311114101
ref: 14
ROD,CLUTCH PUSH
€ 9.00
15
2312114111
ref: 15
PIECE,CLUTCH PUSH
€ 12.00
16
2326114500
ref: 16
23261-14104
SHAFT,CLUTCH RELEASE C
€ 38.00
17
0611107004
ref: 17
BALL
€ 1.50
18
0916015015
ref: 18
09160-15045
WASHER
€ 4.00
19
0926315003
ref: 19
BEARING(15X28X2)
€ 7.00
20
0928510002
ref: 20
09285-10004
OIL SEAL
€ 3.50
21
2327114101
ref: 21
23271-14103
ARM,CLUTCH RELEASE
€ 34.50
22
0110706168
ref: 22
01500-06167
BOLT, UPPER
€ 3.00
