CARBURETOR (MODEL H E.NO.106551~)
RM125 1986 (G) USA (E03)

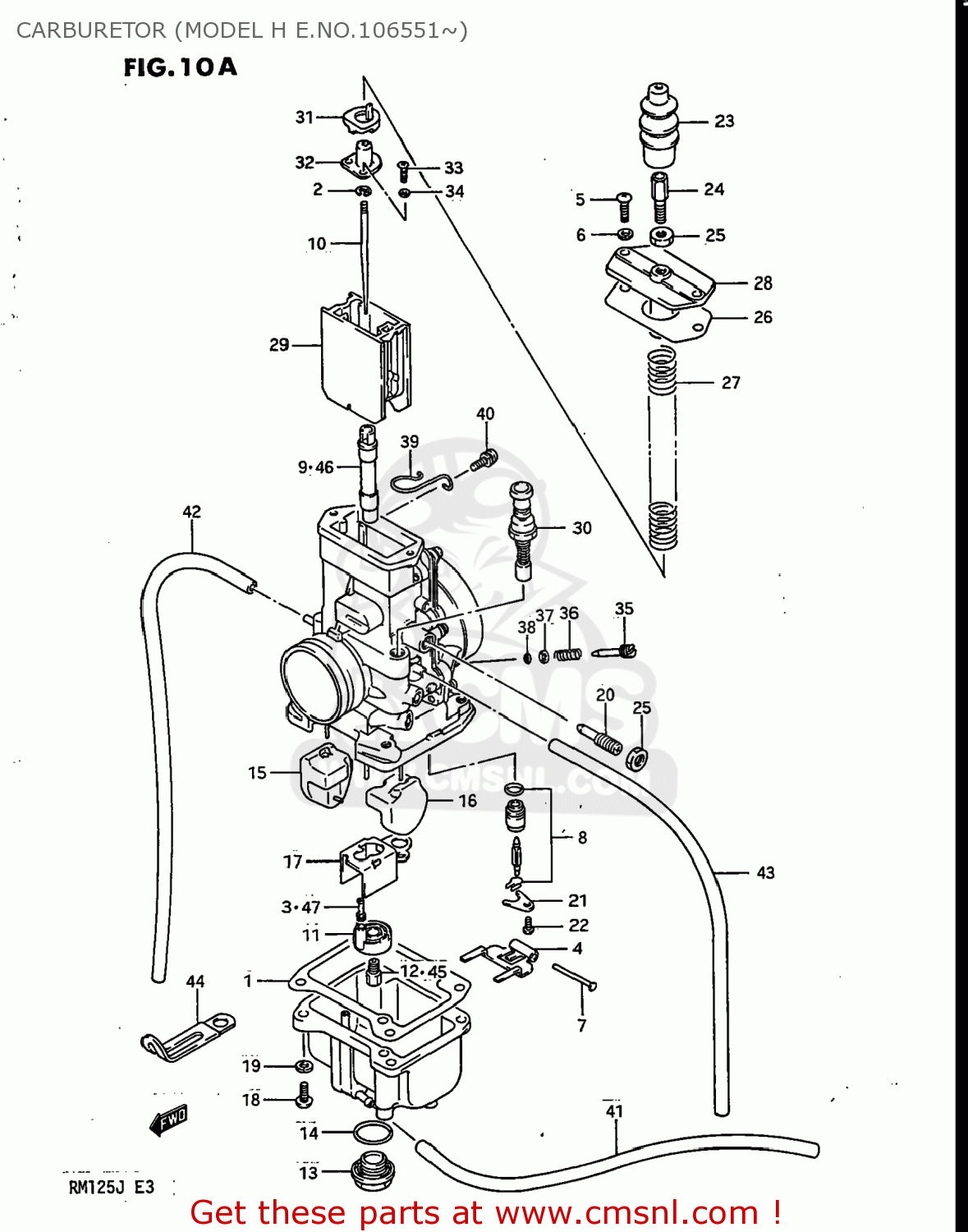

Carburetor (model h e.no.106551~) diagram RM125 1986 (G) USA (E03)
CARBURETOR (MODEL H E.NO.106551~) RM125 1986 (G) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1320001B21
ref:
CARBURETOR ASSEMBLY
€ 335.00
1
1325101B21
ref: 1
GASKET,FLOAT CAHMBER (NAS)
€ 10.50
2
1339431210
ref: 2
CLIP,NEEDLE
€ 3.50
3
0949230003
ref: 3
09492-30006
JET
€ 8.50
4
1325340010
ref: 4
ARM,FLOAT
€ 8.00
5
0211204126
ref: 5
02112-0412A
SCREW
€ 1.50
6
0832121046
ref: 6
08321-0104A
LOCK WASHER
€ 2.00
7
1325492311
ref: 7
PIN,FLOAT
€ 2.00
8
1337014300
ref: 8
13370-43B00
VALVE ASSEMBLY,NEEDLE
€ 52.50
9
0949400558
ref: 9
JET,NEEDLE
€ 22.50
10
1338301B15
ref: 10
NEEDLE JET
€ 9.00
11
1333101B21
ref: 11
RING
€ 12.50
12
0949166002
ref: 12
JET,MAIN(330)
€ 10.50
13
1324732210
ref: 13
SCREW,GUIDE
€ 13.00
14
1324941310
ref: 14
O RING,DRAIN PLUG
€ 5.00
15
1325201B20
ref: 15
FLOAT,R
€ 22.50
16
1325201B21
ref: 16
FLOAT,L
€ 21.50
17
1325900B20
ref: 17
PLATE
€ 12.00
18
0211205166
ref: 18
02112-0516A
SCREW
€ 2.00
19
0832121056
ref: 19
08321-0105A
LOCK WASHER
€ 3.00
20
1326714500
ref: 20
SCREW,THROTTLE SCREW
€ 9.00
21
1337339110
ref: 21
PLATE
€ 6.50
22
0211204066
ref: 22
02112-0406B
SCREW
€ 2.00
23
1368141510
ref: 23
CAP,CABLE ADJUSTER
€ 11.00
24
1357741612
ref: 24
ADJUSTER,CABLE
€ 8.00
25
1366116600
ref: 25
NUT
€ 5.00
26
1326614500
ref: 26
GASKET,TOP (NAS)
€ 4.00
27
1357314500
ref: 27
SPRING,THROTTLE VALVE
€ 6.50
28
1326114500
ref: 28
CAP,CARBURETOR,TOP
€ 13.50
29
1355101B21
ref: 29
VALVE,PISTON (CA:6.0)
€ 81.00
29
1355101B21
ref: 29
VALVE,PISTON (CA:6.0)
€ 81.00
30
1340014500
ref: 30
PLUNGER ASSEMBLY
€ 39.00
31
1362916700
ref: 31
RING
€ 11.50
32
1339816700
ref: 32
JOINT
€ 7.00
33
0211203106
ref: 33
02112-0310B
SCREW
€ 1.50
34
0832121036
ref: 34
08321-2103B
LOCK WASHER
€ 1.50
35
1326948030
ref: 35
SCREW,PILOT AIR
€ 10.00
36
1326848700
ref: 36
SPRING,THROTTLE SCREW
€ 3.50
37
1327744080
ref: 37
13291-29900
GASKET
€ 2.00
38
1329529900
ref: 38
O RING,PILOT AIR SCREW
€ 4.00
39
1369214500
ref: 39
CLIP
€ 4.00
40
1360104148
ref: 40
SCREW
€ 2.50
41
0934304104
ref: 41
09352-40703-600
HOSE
€ 3.00
42
0934304104
ref: 42
09352-40703-600
HOSE
€ 3.00
43
0934304104
ref: 43
09352-40703-600
HOSE
€ 3.00
44
0940406401
ref: 44
09404-06432
CLAMP L:35
€ 2.50
45-1
0949158002
ref: 45-1
JET,MAIN(290)
€ 7.50
45-2
0949160007
ref: 45-2
JET,MAIN(300)
€ 9.50
45-3
0949164002
ref: 45-3
JET,MAIN(320)
€ 8.50
45-4
0949168002
ref: 45-4
JET,MAIN(340)
€ 8.50
45-5
0949170011
ref: 45-5
JET,MAIN(350)
€ 8.50
45-6
0949172011
ref: 45-6
JET,MAIN(360)
€ 8.50
46-1
0949400557
ref: 46-1
JET,NEEDLE (R-4)
€ 18.50
46-2
0949400321
ref: 46-2
JET,NEEDLE
€ 20.50
46-3
0949400559
ref: 46-3
JET,NEEDLE
€ 14.00
46-4
0949400569
ref: 46-4
JET,NEEDLE
€ 14.00
47-1
0949220008
ref: 47-1
JET,PILOT 20
€ 10.00
47-2
0949240004
ref: 47-2
JET,PILOT(40)
€ 17.50
47-3
0949250010
ref: 47-3
JET,PILOT(50)
€ 8.00
47-3
0949250010
ref: 47-3
JET,PILOT(50)
€ 8.00
