FRONT FORK (MODEL J)
RM125 1986 (G) USA (E03)

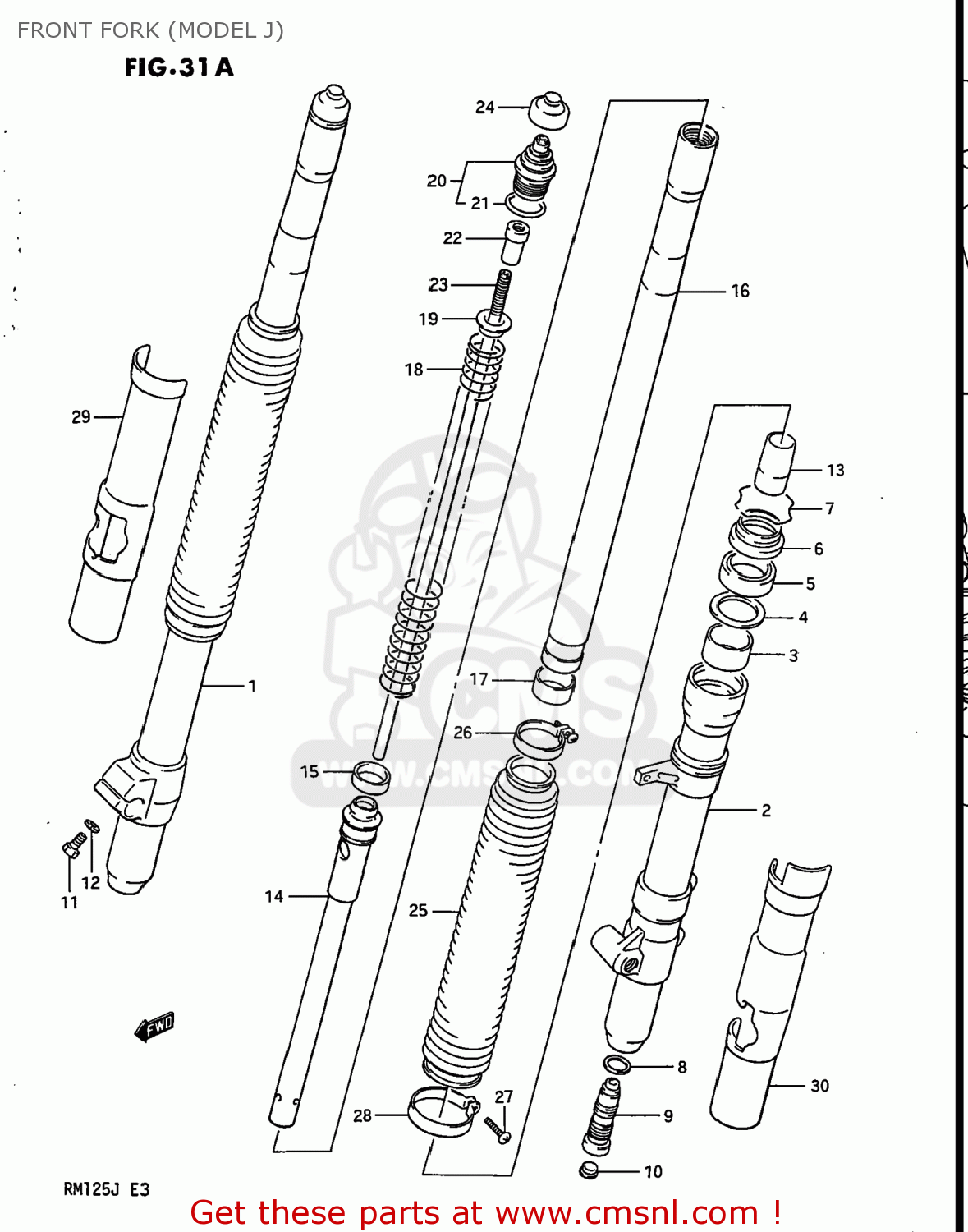

Front fork (model j) diagram RM125 1986 (G) USA (E03)
FRONT FORK (MODEL J) RM125 1986 (G) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
5110301B40
ref:
DAMPER ASSEMBLY
€ 656.00
5110401B50
ref:
DAMPER ASSEMBLY,LEFT
€ 656.00
1
5113001B40
ref: 1
TUBE,OUTER,RIGHT
€ 0.00
2
5114001B40
ref: 2
TUBE,OUTER,LEFT
€ 0.00
3
5116714200
ref: 3
51167-40C00
METAL,SLIDE
€ 13.50
4
5115814200
ref: 4
WASHER
€ 4.00
5
5115301B40
ref: 5
51150-01890
OIL SEAL,FRONT FORK
€ 20.00
6
5117301B40
ref: 6
DUST SEAL,FRONT FORK
€ 7.00
7
5115614200
ref: 7
RING,STOPPER
€ 4.50
8
5114801B40
ref: 8
GASKET (NAS)
€ 4.00
9
5117001B40
ref: 9
51170-26C10
VALVE
€ 136.00
10
5118914500
ref: 10
CAP,FRONT FORK DF
€ 5.00
11
0110708307
ref: 11
01500-08307
BOLT
€ 2.50
12
0832121088
ref: 12
08321-01087
LOCK WASHER
€ 2.00
13
5119501B40
ref: 13
PIECE,OIL LOCK
€ 0.00
14
5114601B40
ref: 14
CYLINDER,FRONT FORK
€ 0.00
15
5119601B20
ref: 15
RING,FRONT FORK PISTON
€ 13.50
16
5111001B40
ref: 16
TUBE,FORK,INNER
€ 290.00
17
5112114200
ref: 17
PISTON
€ 14.00
18
5117100B20
ref: 18
SPRING,FRONT FORK
€ 0.00
19
5117214280
ref: 19
GUIDE,FRONT FORK SPRING
€ 0.00
20
5135101B40
ref: 20
CAP
€ 142.50
21
5111714200
ref: 21
O RING
€ 2.00
22
5112901B40
ref: 22
NUT
€ 19.50
23
5112801B40
ref: 23
ROD,PISTON
€ 19.00
24
5118801B20
ref: 24
CAP
€ 7.50
25
5157101B2025Y
ref: 25
51571-32E00-38K
BOOT
€ 45.50
26
5157501B20
ref: 26
BAND,BOOT UPR
€ 7.50
27
5157701B20
ref: 27
SCREW,BAND BOOT(3.5X10)
€ 2.50
28
5157600B00
ref: 28
BAND,BOOT LWR
€ 6.50
29
5120114500163
ref: 29
PROTECTOR,RIGHT
€ 0.00
30
5120214501163
ref: 30
PROTECTOR,LEFT
€ 25.50
